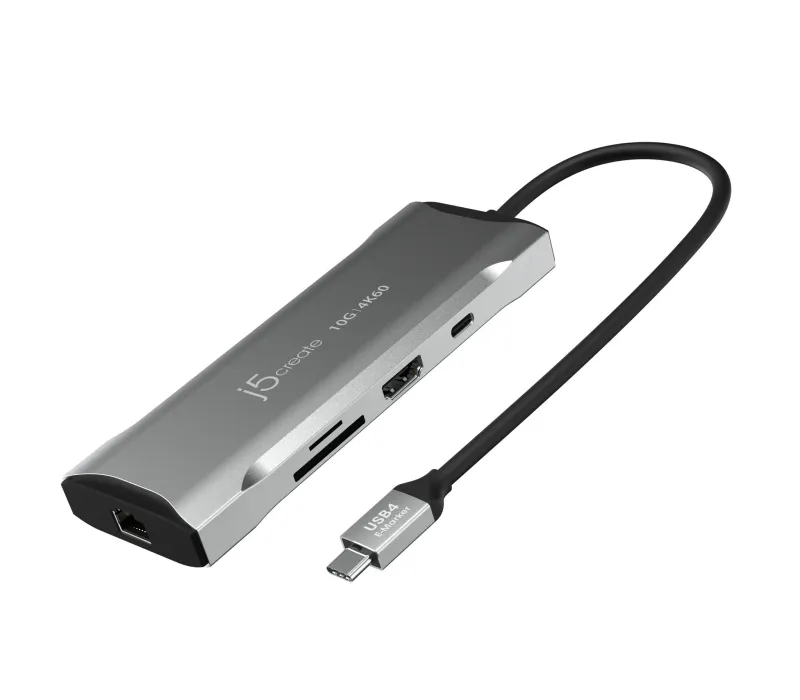

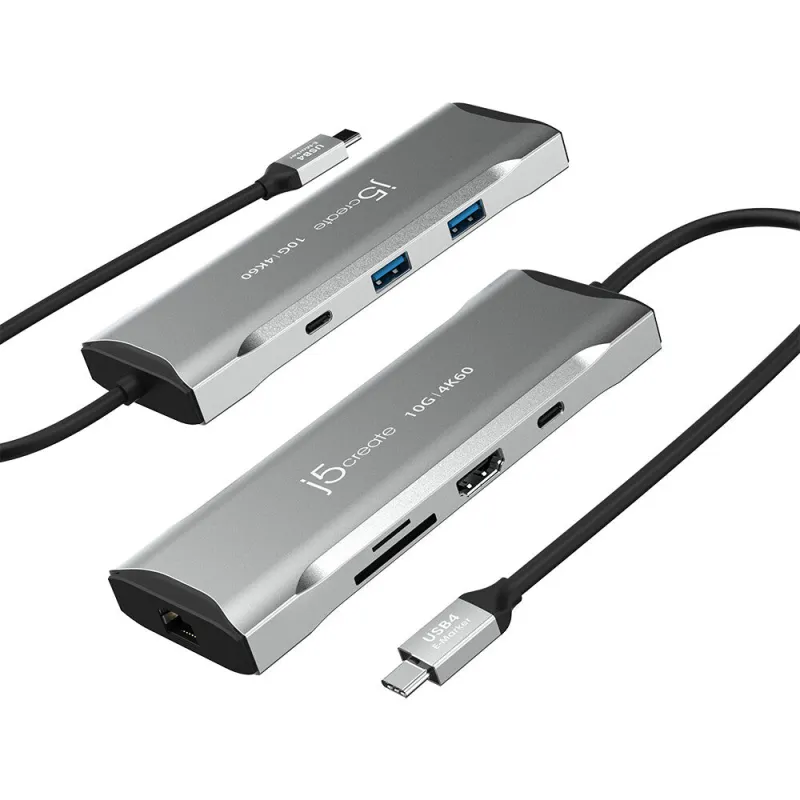

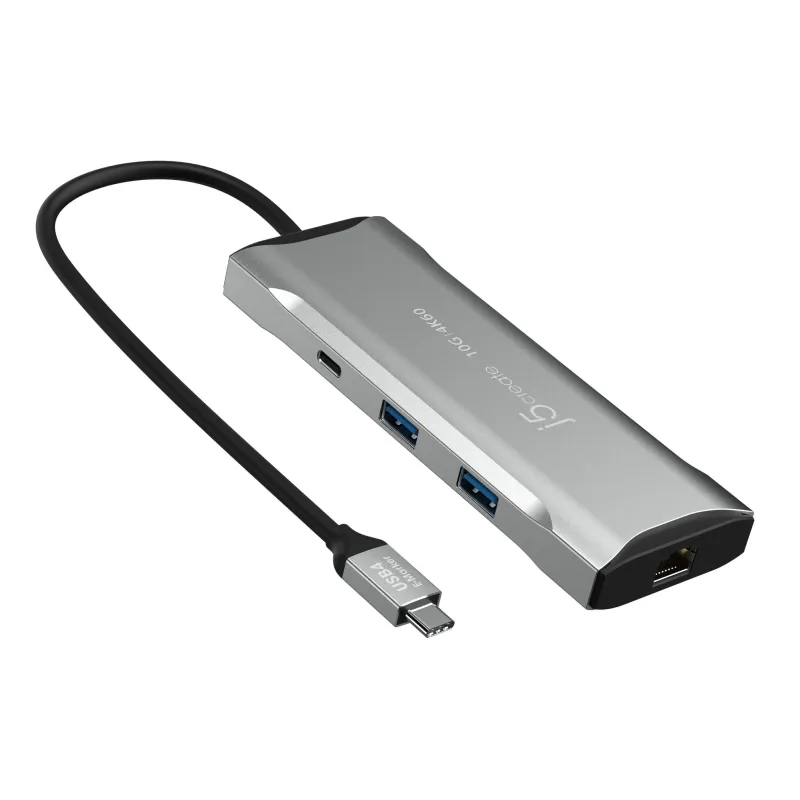

j5create JCD393 4K60 Elite USB-C® 10Gbps Mini Dock, Space Grey
- Built-in advanced USB-C® E-Mark integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility
- Backward compatible with USB™ 3.2/3.1
- Features a 4K HDMI™ output, supporting video resolutions up to 3840 x 2160 at 60 Hz
- Three SuperSpeed USB™ 10Gbps downstream ports (1 USB-C® and 2 Type-A) to connect peripherals
- Charge and power connected laptop and peripherals with 100W Power Delivery
- SD™ & microSD™ 4.0 memory card reader/writer for media storage and transfer
- Easily add a wired network connectivity with the Gigabit Ethernet port
- Plug-and-play, no driver installation required
Featuring all the ports you need, the 4K60 Elite USB-C® 10Gbps Mini Dock is equipped with an advanced USB-C® E-Mark chip for compatibility with USB4™, Thunderbolt™ 3, and Thunderbolt™ 4 hosts and devices.
This USB-C® 10Gbps mini dock with DisplayPort™ 1.4 support lets you easily connect a 4K 60Hz display. It includes three USB™ SuperSpeed 10Gbps ports (1 USB-C® and 2 USB™ Type-A) for peripheral connectivity or downstream charging, an SD™ & microSD™ 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network.
The adapter also supports Power Delivery 3.0, which provides up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.
| Ports & interfaces |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Microphone in |
No |
| HDMI version |
2.0 |
| HDMI ports quantity |
1 |
| USB Power Delivery revision |
3.0 |
| USB Power Delivery up to |
100 W |
| USB Power Delivery (USB PD) |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Connectivity technology |
Wired |
| Network |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| Performance |
| Compatibility |
Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0 |
| Country of origin |
Taiwan |
| Charging function |
Yes |
| Plug and Play |
Yes |
| Housing material |
Aluminium |
| Display modes |
Extended, Mirror, Primary display |
| Number of displays supported |
1 |
| Maximum refresh rate |
144 Hz |
| Maximum digital resolution |
3840 x 2160 pixels |
| HD type |
4K Ultra HD |
| Data transfer rate |
10 Gbit/s |
| Compatible memory cards |
MicroSD (TransFlash), SD |
| Card reader integrated |
Yes |
| Colour name |
Space Grey |
| Product colour |
Grey |
| Power |
| USB cable length |
0.2 m |
| Power consumption (typical) |
3.48 W |
| Output voltage |
5 V |
| Output current |
0.69 A |
| Power connector |
USB Type-C |
| Power source type |
USB |
| Software |
| Mac operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Operational conditions |
| Storage relative humidity (H-H) |
0 – 85% |
| Operating relative humidity (H-H) |
0 – 85% |
| Storage temperature (T-T) |
-17 – 68 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Weight |
104 g |
| Height |
16 mm |
| Depth |
50 mm |
| Width |
138 mm |
| Packaging data |
| Package weight |
164 g |
| Package height |
22.5 mm |
| Package depth |
125 mm |
| Package width |
193 mm |
| Quantity per pack |
1 pc(s) |
| Packaging content |
| Manual |
Yes |
| Quick start guide |
Yes |
| Technical details |
| Warranty period |
2 year(s) |
| Master (outer) case GTIN (EAN/UPC) |
24712795086267 |
| Logistics data |
| Shipping (inner) case net weight |
1.14 kg |
| Shipping (inner) case height |
13.7 cm |
| Shipping (inner) case length |
21.2 cm |
| Shipping (inner) case width |
16.5 cm |
| Export Control Classification Number (ECCN) |
EAR99 |
| Products per shipping (inner) case |
6 pc(s) |
| Products per master (outer) case |
18 pc(s) |
| Master (outer) case width |
226 mm |
| Master (outer) case length |
445 mm |
| Master (outer) case height |
190 mm |
| Master (outer) case gross weight |
4.06 kg |
| Other features |
| Special features |
Built-in advanced USB-C® E-Mark integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility, Features a 4K HDMI™ output, supporting video resolutions up to 3840 x 2160 at 60 Hz |
