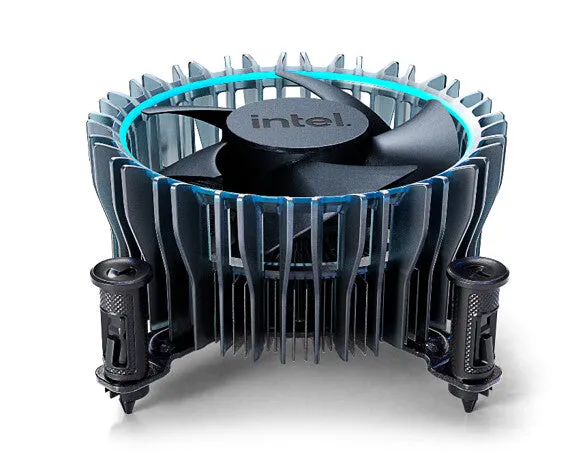

Intel Laminar RM1 Processor Air cooler Black, Blue
- Processor Air cooler 3150 RPM
- Supported processor sockets: LGA 1700
- 29 dB
- Pulse-width modulation (PWM) support
- Black, Blue
Intel Laminar RM1 Copper Heat Sink Aluminum CPU Cooler with Fan for LGA 1700 CPU
Product
CPU Fan with Aluminium Heatsink
Socket Compatibility
Intel: LGA 1700
TDP Wattage
65w
Connections
4-pin Fan Connector
Fan Diameter
80mm
Maximum Fan Speed
2500RPM
Voltage
12V
Fan Bearing Type
Ball
Packaging
OEM Brown Box
| Performance | |
|---|---|
| Operating temperature (T-T) | 0 – 70 °C |
| Pulse-width modulation (PWM) support | Yes |
| Noise level (high speed) | 29 dB |
| Rotational speed (max) | 3150 RPM |
| Rotational speed (min) | 600 RPM |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
| Supported processor sockets | LGA 1700 |
| Type | Air cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination LED | No |
| Number of fan blades | 5 |
| Number of fans | 1 fan(s) |
| Base plate material | Copper |
| Radiator material | Aluminum |
| Product colour | Black, Blue |
| Power | |
|---|---|
| Thermal Design Power (TDP) | 65 W |
| Starting voltage | 10.8 V |
| Rated voltage | 12 V |
| Voltage | 10.8 – 13.2 V |
| Weight & dimensions | |
|---|---|
| Weight | 350 g |
| Height | 47 mm |
| Depth | 100 mm |
| Width | 100 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
