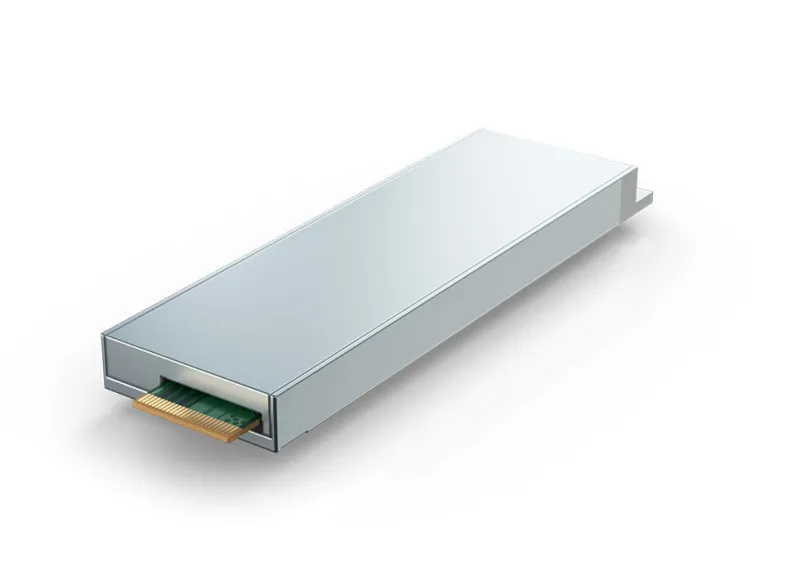

Intel D7 SSDPFUKX019T1N1
- 1.92 TB E1.S PCI Express 4.0
- TLC 3D NAND NVMe
- Hardware encryption 256-bit AES
- Component for: Server/workstation
Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
Hardware Encryption
Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
| Features | |
|---|---|
| Use conditions | Server/Enterprise |
| Mean time between failures (MTBF) | 2000000 h |
| SSD temperature monitoring | Yes |
| Enhanced Power Loss Data Protection technology | Yes |
| End-to-End Data Protection | Yes |
| Sequential latency – write (up to) | 13 µs |
| Sequential latency – read (up to) | 10 µs |
| Random latency – write (up to) | 15 µs |
| Random latency – read (up to) | 75 µs |
| Random write (100% span) | 114000 IOPS |
| Random read (100% span) | 706000 IOPS |
| Security algorithms | 256-bit AES |
| Hardware encryption | Yes |
| Component for | Server/workstation |
| Memory type | TLC 3D NAND |
| NVMe | Yes |
| Interface | PCI Express 4.0 |
| SSD form factor | E1.S |
| SSD capacity | 1.92 TB |
| Power | |
|---|---|
| Power consumption (idle) | 5 W |
| Weight & dimensions | |
|---|---|
| Weight | 72 g |
| General | |
|---|---|
| Product family | D7 |
| Operational conditions | |
|---|---|
| Non-operating vibration | 3.13 G |
| Operating vibration | 2.17 G |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 – 70 °C |
| Other features | |
|---|---|
| Launch date | Q2’22 |
| SSD shock | 1000G,0.5ms |
| SSD endurance rating | 3.5 PBW |
| Sequential reading | 5300 MB/s |
| Sequential writing speed | 1900 MB/s |
| Status | Launched |
| Internal memory type | PCIe 4.0 x4, NVMe |
| Processor family | Intel SSD D7-P5520 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G162706L1 |
