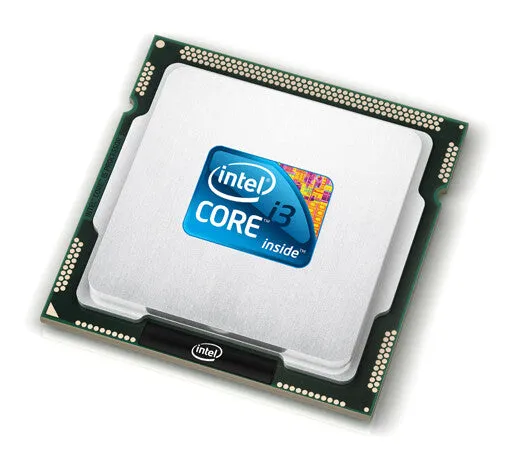

Intel Core i3-3220T processor 2.8 GHz 3 MB Smart Cache
- Intel® Core™ i3 i3-3220T 2.8 GHz
- 3 MB Smart Cache LGA 1155 (Socket H2)
- Processor cores: 2 22 nm 64-bit 35 W
- Maximum internal memory supported by processor: 32 GB DDR3-SDRAM
- On-board graphics card Intel® HD Graphics 2500
Intel® Hyper-Threading Technology
Intel® Hyper-Threading Technology (Intel® HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.
Intel® My WiFi Technology
Intel® My WiFi Technology enables wireless connection of an UltrabookTM or laptop to WiFi-enabled devices such as printers, stereos, etc.
Intel® Identity Protection Technology
Intel® Identity Protection Technology is a built-in security token technology that helps provide a simple, tamper-resistant method for protecting access to your online customer and business data from threats and fraud. Intel® IPT provides a hardware-based proof of a unique user’s PC to websites, financial institutions, and network services; providing verification that it is not malware attempting to login. Intel® IPT can be a key component in two-factor authentication solutions to protect your information at websites and business log-ins.
Anti-Theft Technology
Intel® Anti-Theft Technology (Intel® AT) helps keep your laptop safe and secure in the event that it’s ever lost or stolen. Intel® AT requires a service subscription from an Intel® AT–enabled service provider
| Processor |
| Generation |
3rd Generation |
| Processor ARK ID |
65694 |
| Processor codename |
Ivy Bridge |
| Memory bandwidth supported by processor (max) |
25.6 GB/s |
| CPU multiplier (bus/core ratio) |
28 |
| Bus type |
DMI |
| Thermal Design Power (TDP) |
35 W |
| Processor cache type |
Smart Cache |
| Processor cache |
3 MB |
| Processor operating modes |
64-bit |
| System bus rate |
5 GT/s |
| Processor threads |
4 |
| Processor series |
Intel Core i3-3200 Desktop Series |
| Component for |
PC |
| Cooler included |
No |
| Box |
No |
| Processor lithography |
22 nm |
| Processor socket |
LGA 1155 (Socket H2) |
| Processor cores |
2 |
| Processor base frequency |
2.8 GHz |
| Processor model |
i3-3220T |
| Processor generation |
3rd gen Intel® Core™ i3 |
| Processor family |
Intel® Core™ i3 |
| Processor manufacturer |
Intel |
| Memory |
| ECC |
No |
| Memory channels |
Dual-channel |
| Memory clock speeds supported by processor |
1333,1600 MHz |
| Memory types supported by processor |
DDR3-SDRAM |
| Maximum internal memory supported by processor |
32 GB |
| Graphics |
| On-board graphics card ID |
0x152 |
| Number of displays supported (on-board graphics) |
3 |
| On-board graphics card dynamic frequency (max) |
1050 MHz |
| On-board graphics card base frequency |
650 MHz |
| On-board graphics card model |
Intel® HD Graphics 2500 |
| On-board graphics card |
Yes |
| Features |
| Commodity Classification Automated Tracking System (CCATS) |
NA |
| Export Control Classification Number (ECCN) |
3A991 |
| Embedded options available |
No |
| PCI Express CEM revision |
2.0 |
| CPU configuration (max) |
1 |
| Thermal solution specification |
PCG 2011A |
| Supported instruction sets |
SSE4.1, SSE4.2, AVX |
| PCI Express configurations |
1×16, 2×8, 1×8, 2×4 |
| PCI Express slots version |
2.0 |
| Market segment |
Desktop |
| Execute Disable Bit |
Yes |
| Idle States |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Processor special features |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel Identity Protection Technology version |
1.00 |
| Intel Secure Key Technology version |
0.00 |
| Intel 64 |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
No |
| Intel® Secure Key |
No |
| Intel Enhanced Halt State |
Yes |
| Intel® vPro™ Platform Eligibility |
No |
| Conflict-Free processor |
Yes |
| Intel® Wireless Display (Intel® WiDi) |
Yes |
| Intel® Insider™ |
Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
| Intel® Turbo Boost Technology |
No |
| Intel® AES New Instructions (Intel® AES-NI) |
No |
| Intel Trusted Execution Technology |
No |
| Intel® Anti-Theft Technology (Intel® AT) |
Yes |
| Intel® Quick Sync Video Technology |
Yes |
| Intel® Identity Protection Technology (Intel® IPT) |
Yes |
| Intel® InTru™ 3D Technology |
Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel FDI Technology |
Yes |
| Intel® My WiFi Technology (Intel® MWT) |
Yes |
| General |
| Product family |
Core |
| Product series |
i3 |
| Operational conditions |
| Tcase |
65 °C |
| Logistics data |
| Harmonized System (HS) code |
8542310001 |
| Technical details |
| Bus bandwidth |
5 |
| Bus type units |
GT/s |
| Processor brand name |
Intel Core i3Intel Core i3 Processor |
| Last change |
63903513 |
| Product family |
3rd Generation Intel Core i3 Processors |
| Launch date |
Q3’12 |
| Status |
Discontinued |
| Maximum memory |
32 GB |
| Bus speed |
5 GT/s |
| Processor ID |
0x152 |
| Processor cache |
3072 KB |
| Supported memory types |
DDR3-SDRAM |
| Product type |
Processor |
| Packaging data |
| Package type |
Retail box |
| Weight & dimensions |
| Processor package size |
37.5 x 37.5 mm |
| Other features |
| Maximum internal memory |
32 GB |
