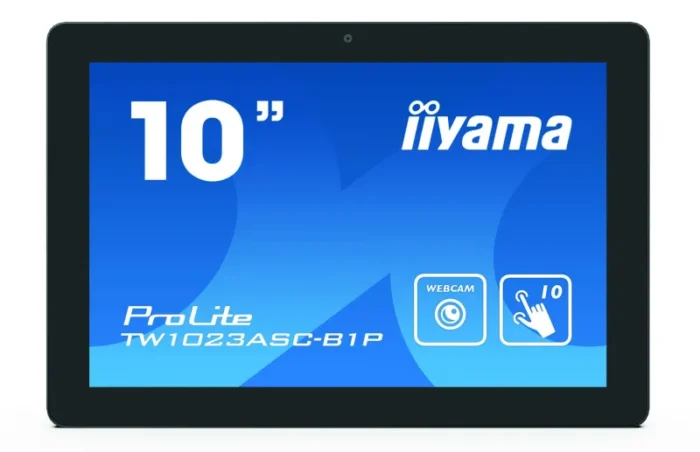

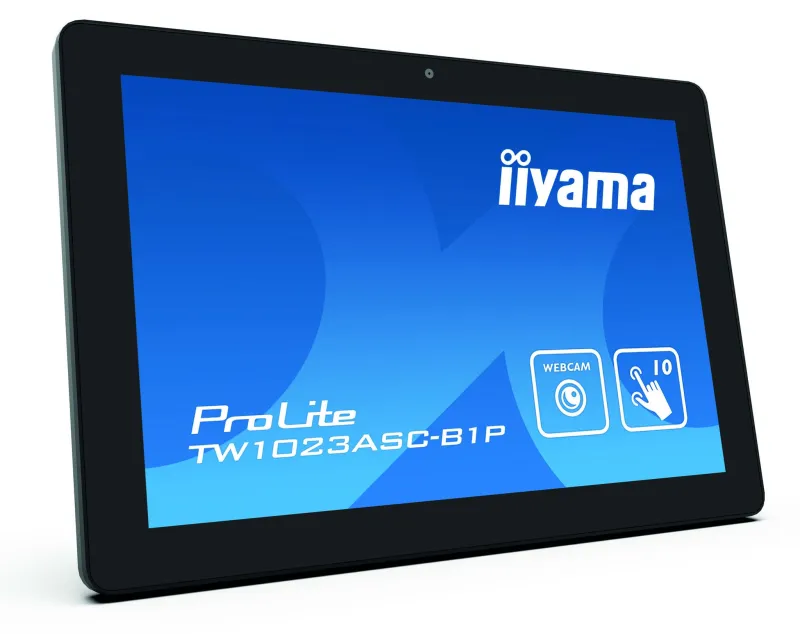

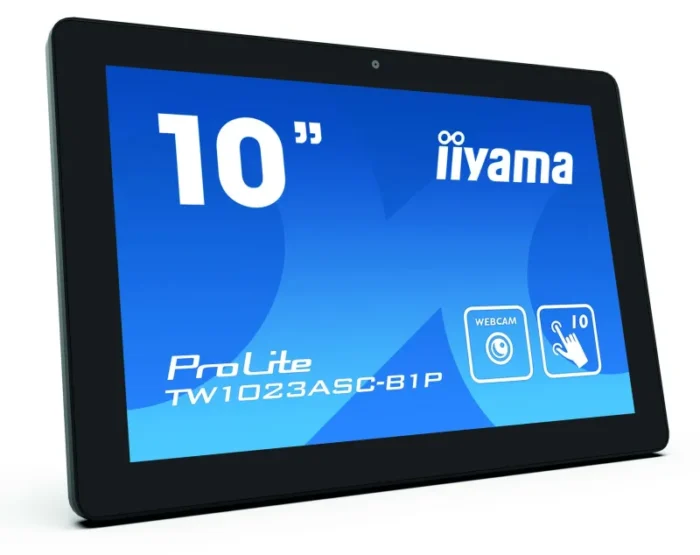

iiyama TW1023ASC-B1P meeting room display 25.6 cm (10.1″) 1280 x 800 pixels LED 802.11b, 802.11g, Wi-Fi 4 (802.11n) Bluetooth
- 25.6 cm (10.1″) 1280 x 800 pixels Display technology: LED
- 60 Hz 450 cd/m²
- Touchscreen
- Built-in speaker(s) Built-in microphone
- Built-in camera
- Ethernet LAN Bluetooth Wi-Fi 802.11b, 802.11g, Wi-Fi 4 (802.11n)
10.1” PCAP 10pt touch screen with Android and Power over Ethernet Technology
The ProLite TW1023ASC-B1P touch panel PC is a perfect choice for high-use environments such as retail, interactive POS, information desks or hospitality applications.
This 10.1” PCAP 10-point touchscreen with Android allows users to directly connect and operate the monitor from any device. The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, simplifying all installations. This monitor can operate in landscape, portrait or face-up orientation. Together with the built-in camera and speakers it offers limitless interactive installation possibilities.
BUILT-IN WEBCAM & SPEAKERS
Making the screen a perfect solution for semi or fully automated reception solutions allowing businesses to track and manage visitor traffic at the front desk lobby without compromising on the safety and security of your staff, visitors and company assets.
| Display |
| Number of simultaneous touchpoints |
10 |
| Touchscreen technology |
Projected capacitive system |
| Touchscreen |
Yes |
| Contrast ratio (typical) |
1000:1 |
| Display brightness |
450 cd/m² |
| Response time |
25 ms |
| Maximum refresh rate |
60 Hz |
| Pixel pitch |
0.1692 x 0.1692 mm |
| Display resolution |
1280 x 800 pixels |
| Display technology |
LED |
| Display diagonal |
25.6 cm (10.1″) |
| Design |
| Certification |
CE, REACH |
| Panel mounting interface |
75 x 75 mm |
| VESA mounting |
No |
| Performance |
| Operating system installed |
Android |
| Built-in processor |
Yes |
| Audio |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Built-in microphone |
Yes |
| Camera |
| Built-in camera |
Yes |
| Network |
| Ethernet LAN |
Yes |
| Bluetooth version |
4.0 |
| Bluetooth |
Yes |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi |
Yes |
| Ports & interfaces |
| HDMI ports quantity |
1 |
| Packaging data |
| Package weight |
1.36 kg |
| Package height |
223 mm |
| Package depth |
68 mm |
| Package width |
398 mm |
