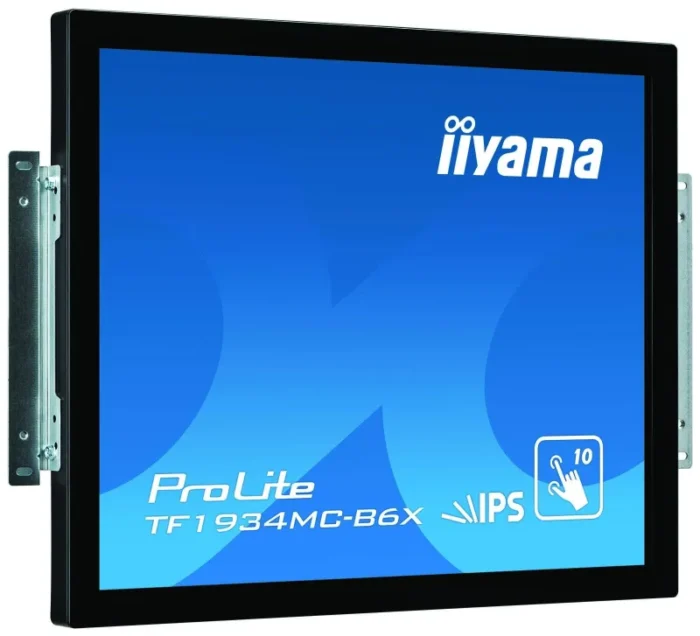

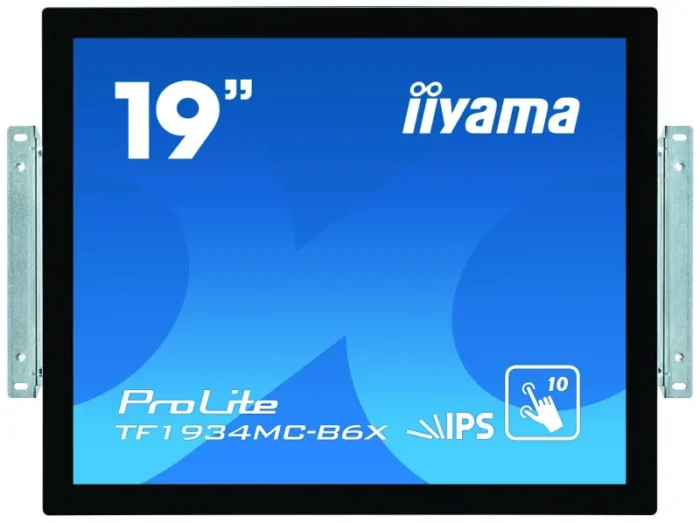

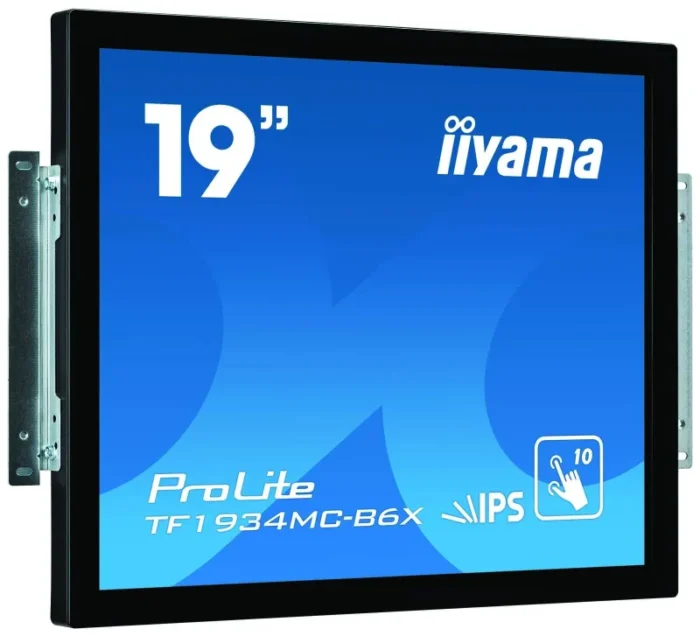

iiyama TF1934MC-B6X computer monitor 48.3 cm (19″) 1280 x 1024 pixels Full HD LED Touchscreen Multi-user Black
- Touchscreen 48.3 cm (19″) LED IPS
- Full HD 1280 x 1024 pixels 5:4
- 14 ms 1000:1
- F 18 kWh 21 W
ProLite TF1934MC-B6X uses Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angles, making it a perfect interactive display for Interactive Digital Signage. In addition to the superb image quality, the screen comes with an IP65 Rating, making it dust and water resistant. Equipped with a rugged bezel making it suitable for demanding environments. The ProLite TF1934MC is the ideal screen for the kiosk integrators and a solution for Interactive Digital Signage, Instore Retail, Gaming and Interactive Presentations.
TOUCH TECHNOLOGY – CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
ANTI-FINGERPRINT COATING
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
OPEN FRAME BRACKETS
This open frame monitor comes equipped with external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and Instore Retail.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
IPS
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
Display | |
---|---|
Separate H/V sync | Yes |
Display diagonal (metric) | 48 cm |
Vertical scan range | 50 – 75 Hz |
Horizontal scan range | 31.4 – 80 kHz |
Pixel pitch | 0.294 x 0.294 mm |
Display number of colours | 16.78 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Contrast ratio (typical) | 1000:1 |
Aspect ratio | 5:4 |
Screen shape | Flat |
Response time | 14 ms |
Display brightness | 315 cd/m² |
Number of simultaneous touchpoints | 10 |
Touch technology | Multi-touch |
Touchscreen technology | Projected capacitive system |
Touchscreen type | Multi-user |
Panel type | IPS |
HD type | Full HD |
Touchscreen | Yes |
Display technology | LED |
Native aspect ratio | 5:4 |
Display resolution | 1280 x 1024 pixels |
Display diagonal | 48.3 cm (19″) |
Performance | |
---|---|
OmniTapps Multitouch compatibility | No |
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Multimedia | |
---|---|
Built-in microphone | No |
Built-in camera | No |
Design | |
---|---|
Product colour | Black |
Ports & interfaces | |
---|---|
HDCP | Yes |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
HDMI | Yes |
VGA (D-Sub) ports quantity | 1 |
USB Touch port | Yes |
Ergonomics | |
---|---|
Plug and Play | Yes |
Number of OSD languages | 6 |
On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese |
Wall mountable | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Energy efficiency scale | A to G |
Power supply type | DC |
Power consumption (standby) | 2 W |
Power consumption (typical) | 21 W |
Energy consumption (SDR) per 1000 hours | 18 kWh |
Energy efficiency class (SDR) | F |
Operational conditions | |
---|---|
Storage relative humidity (H-H) | 10 – 90% |
Operating relative humidity (H-H) | 20 – 80% |
Storage temperature (T-T) | -20 – 60 °C |
Operating temperature (T-T) | 0 – 40 °C |
Weight & dimensions | |
---|---|
Weight (without stand) | 4.4 kg |
Height (without stand) | 344 mm |
Depth (without stand) | 46.5 mm |
Width (without stand) | 416 mm |
Packaging content | |
---|---|
Cables included | AC, DisplayPort, HDMI, USB |
Other features | |
---|---|
Certification | CB, CE, TÜV-Bauart, CU, cULus, REACH |
Power management | Yes |
Display viewable area (HxV) | 376.5 x 301.1 mm |
Full HD | Yes |
AC adapter included | Yes |
International Protection (IP) code | IP65 |
Logistics data | |
---|---|
Harmonized System (HS) code | 85285210 |
