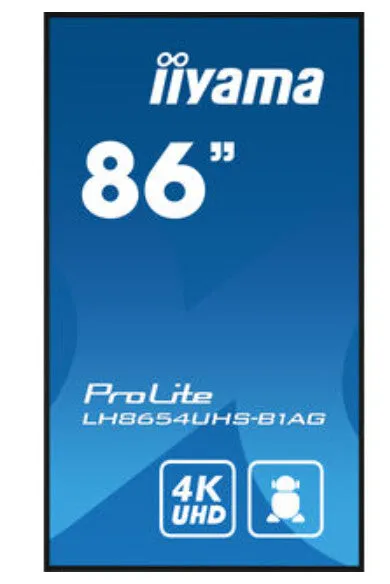

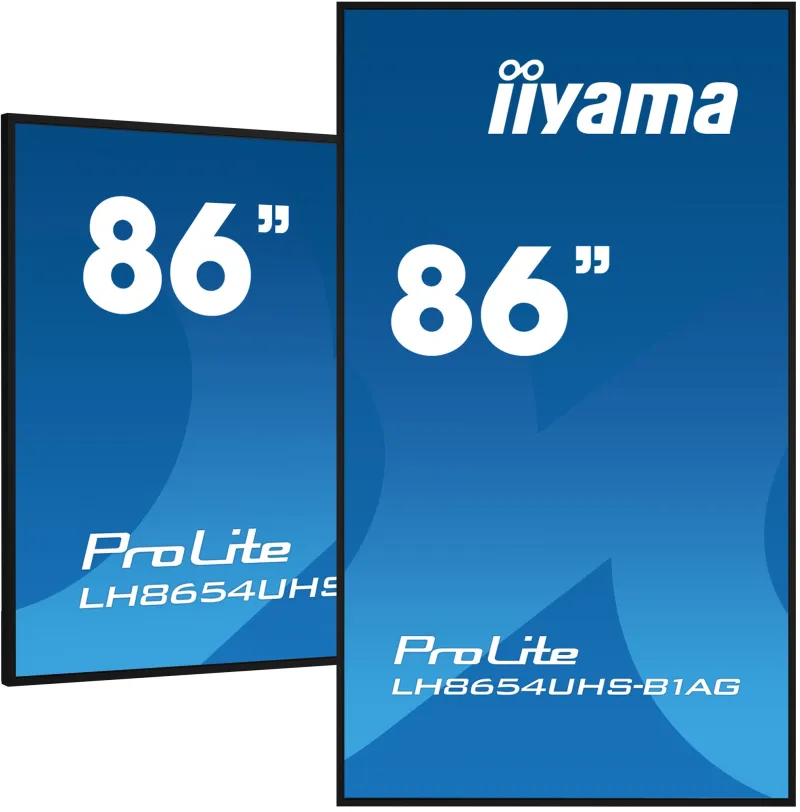

iiyama ProLite To Be Updated computer monitor 2.17 m (85.6″) 3840 x 2160 pixels 4K Ultra HD LED Black
- 2.17 m (85.6″) LED IPS
- 4K Ultra HD 3840 x 2160 pixels 16:9
- 60 Hz 8 ms 500 cd/m² 1400:1
- G 349 kWh 349 W
The LH8654UHS from iiyama is a 500cd/m² high brightness professional large format display and can be operated in landscape or portrait orientation in continual around the clock environments 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android OS means you can customize the display to your needs and install applications directly to it.
The on-board CMS (Content Management Software) gives you total control of your messaging and advertising remotely and safely. The SDM Slot provides embedded PC option for total flexibility, security and control, while the Signal FailOver feature ensures your content is always actively displayed through your choice of inputs. WiFi enabled, this series is ready for remote content delivery using your network or you can choose to utilise LAN control.
| Display |
| Colour gamut |
72% |
| Colour gamut standard |
NTSC |
| Colour depth |
8 bit |
| Display diagonal (metric) |
217 cm |
| Pixel pitch |
0.494 x 0.494 mm |
| Display number of colours |
1.07 billion colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Maximum refresh rate |
60 Hz |
| Contrast ratio (typical) |
1400:1 |
| Screen shape |
Flat |
| Display surface |
Matt |
| Response time |
8 ms |
| Display brightness (typical) |
500 cd/m² |
| Panel type |
IPS |
| HD type |
4K Ultra HD |
| Touchscreen |
No |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
3840 x 2160 pixels |
| Display diagonal |
2.17 m (85.6″) |
| Multimedia |
| Built-in camera |
No |
| RMS rated power |
10 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
| Front bezel colour |
Black |
| Housing material |
Metal |
| Product colour |
Black |
| Market positioning |
Home |
| Ports & interfaces |
| HDCP version |
2.2 |
| HDCP |
Yes |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
1 |
| HDMI version |
2.0 |
| HDMI ports quantity |
3 |
| HDMI |
Yes |
| DVI port |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| USB Type-A downstream ports quantity |
2 |
| Ergonomics |
| Number of OSD languages |
11 |
| On Screen Display (OSD) languages |
Czech, German, English, Spanish, French, Italian, Polish, Russian |
| On Screen Display (OSD) |
Yes |
| Panel mounting interface |
100 x 100,600 x 400 mm |
| VESA mounting |
Yes |
| Power |
| European Product Registry for Energy Labelling (EPREL) code |
1520414 |
| Energy efficiency scale |
A to G |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
100 – 240 V |
| Power consumption (off) |
0.5 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
349 W |
| Energy consumption (SDR) per 1000 hours |
349 kWh |
| Energy efficiency class (SDR) |
G |
| Operational conditions |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Weight (without stand) |
55.2 kg |
| Height (without stand) |
1103.1 mm |
| Depth (without stand) |
86.1 mm |
| Width (without stand) |
1933 mm |
| Packaging data |
| Package weight |
73.7 kg |
| Package height |
1250 mm |
| Package depth |
275 mm |
| Package width |
2130 mm |
| Packaging content |
| Cables included |
AC, HDMI, RS-232 |
| Sustainability |
| Sustainability certificates |
ErP |
| General |
| Product family |
ProLite |
| Other features |
| Certification |
CB, CE, TÜV type, EAC, RoHS support, ErP, WEEE, REACH |
| Compliance certificates |
CB, CE, REACH, RoHS, WEEE |
