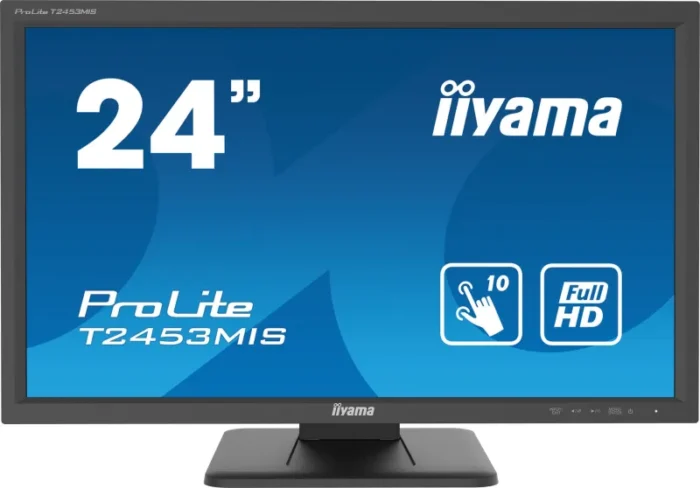

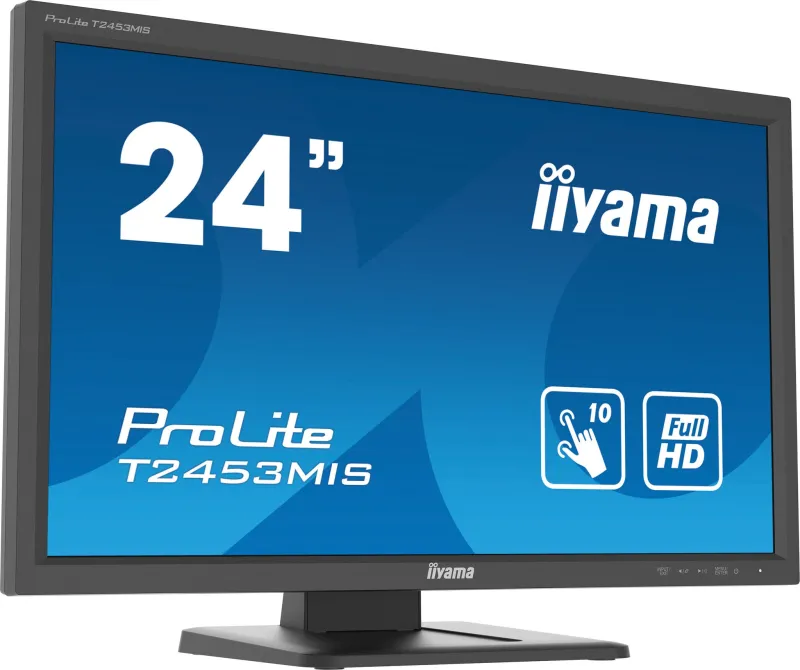

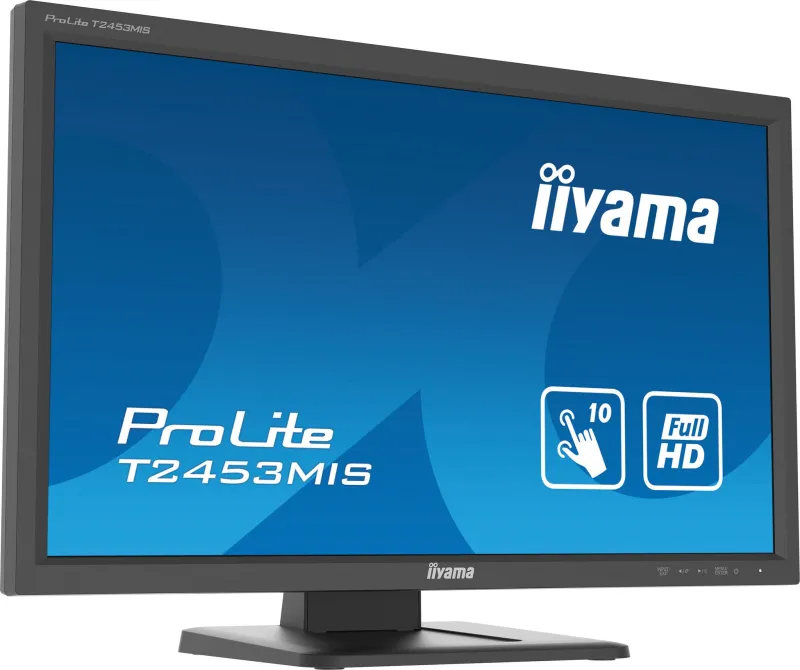

iiyama ProLite T2453MIS-B1 computer monitor 59.9 cm (23.6″) 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black
- Touchscreen 59.9 cm (23.6″) LED VA
- Full HD 1920 x 1080 pixels 16:9
- 4 ms 3000:1
- D 14 kWh 18 W
24″ 10 point Touch monitor based on IR Touch technology
The ProLite T2453MIS-B1 is based on IR touch technology (10 touch points) with a pure-glass scratch resistive front, offering superior image clarity and screen durability. The screen can be touched with a soft stylus, finger or gloved hand making it suitable for several applications. The VA panel technology guarantees high performance with excellent colour reproduction and high contrast, making it an excellent choice for a vast array of demanding interactive applications. A solid and steady base supports the touchscreen with an adjustable stand. Multiple inputs (VGA, HDMI, DP) are available for flexible connectivity along with USB for the touch interface.
OVERDRIVE ON / OFF
When very fast graphics are displayed your monitor can sometimes get blurry. Turning on the OverDrive feature will eliminate that.
| Display |
| Surface hardness |
7H |
| Display diagonal (metric) |
59.8 cm |
| Horizontal scan range |
30 – 80 kHz |
| Pixel pitch |
0.272 x 0.272 mm |
| Display number of colours |
16.78 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (dynamic) |
12000000:1 |
| Contrast ratio (typical) |
3000:1 |
| Screen shape |
Flat |
| Response time |
4 ms |
| Display brightness |
250 cd/m² |
| Number of simultaneous touchpoints |
10 |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Infrared |
| Touchscreen type |
Multi-user |
| Panel type |
VA |
| HD type |
Full HD |
| Touchscreen |
Yes |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
59.9 cm (23.6″) |
| Performance |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
| Built-in microphone |
No |
| Built-in camera |
No |
| RMS rated power |
4 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
| Glass thickness |
1 mm |
| Product colour |
Black |
| Ports & interfaces |
| HDCP |
Yes |
| Headphone outputs |
1 |
| Headphone out |
Yes |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| USB Touch port |
Yes |
| USB Type-A downstream ports quantity |
1 |
| Number of upstream ports |
1 |
| Built-in USB hub |
Yes |
| Ergonomics |
| Plug and Play |
Yes |
| Tilt angle range |
-25 – 95° |
| Tilt adjustment |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Wall mountable |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
| European Product Registry for Energy Labelling (EPREL) code |
1085889 |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
100 – 240 V |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
18 W |
| Energy consumption (SDR) per 1000 hours |
14 kWh |
| Energy efficiency class (SDR) |
D |
| Weight & dimensions |
| Weight (with stand) |
6 kg |
| Height (with stand) |
391 mm |
| Depth (with stand) |
220.5 mm |
| Width (with stand) |
571 mm |
| Packaging data |
| Package height |
490 mm |
| Package depth |
190 mm |
| Package width |
645 mm |
| General |
| Product family |
ProLite |
| Other features |
| Certification |
CE, EAC, RoHS, ErP, WEEE, VCCI, REACH, UKCA |
| Display viewable area (HxV) |
521.3 x 293.2 mm |
| Logistics data |
| Harmonized System (HS) code |
85285210 |
