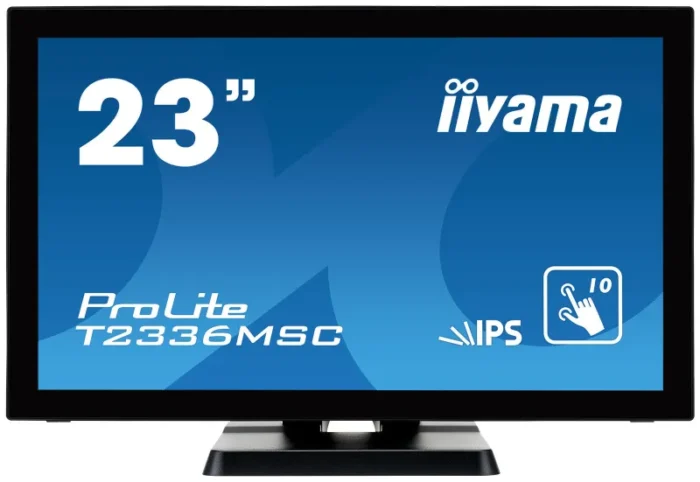

iiyama ProLite T2336MSC-B2 computer monitor 58.4 cm (23″) 1920 x 1080 pixels Full HD LED Touchscreen Black
- Touchscreen 58.4 cm (23″) LED IPS
- Full HD 1920 x 1080 pixels 16:9
- 5 ms 1000:1
- F 19 kWh 25.3 W
With its Full HD (1920×1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2336MSC delivers seamless and accurate touch response. The IPS panel technology guarantees high performance with exceptional colour reproduction and wide viewing angles, making it an excellent choice for a vast array of demanding interactive applications. The flexible stand can be positioned at several angles, creating a comfortable and ergonomic user experience. The ProLite T2336MSC is the ideal screen for a great Windows8 touch-experience.
| Display | |
|---|---|
| Separate H/V sync | Yes |
| Display diagonal (metric) | 58.4 cm |
| Viewable size diagonal | 58.4 cm |
| Vertical scan range | 56 – 75 Hz |
| Horizontal scan range | 30 – 80 kHz |
| Pixel pitch | 0.2652 x 0.2652 mm |
| Display number of colours | 16.78 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Contrast ratio (dynamic) | 5000000:1 |
| Contrast ratio (typical) | 1000:1 |
| Aspect ratio | 16:9 |
| Screen shape | Flat |
| Response time | 5 ms |
| Display brightness | 215 cd/m² |
| Number of simultaneous touchpoints | 10 |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | Yes |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 58.4 cm (23″) |
| Performance | |
|---|---|
| Windows operating systems supported | Yes |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| RMS rated power | 4 W |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| PC Audio in | Yes |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| DVI-D ports quantity | 1 |
| DVI port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| USB Type-A downstream ports quantity | 4 |
| Number of upstream ports | 1 |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| LED indicators | Yes |
| Plug and Play | Yes |
| Number of OSD languages | 9 |
| Tilt angle range | -5 – 90° |
| Tilt adjustment | Yes |
| Cable lock slot | Yes |
| Wall mountable | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| European Product Registry for Energy Labelling (EPREL) code | 366267 |
| Energy efficiency scale | A to G |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 25.3 W |
| Energy consumption (SDR) per 1000 hours | 19 kWh |
| Energy efficiency class (SDR) | F |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 90% |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating temperature (T-T) | 5 – 35 °C |
| Weight & dimensions | |
|---|---|
| Height (without stand) | 336 mm |
| Depth (without stand) | 57 mm |
| Width (without stand) | 561 mm |
| Weight (with stand) | 6.3 kg |
| Height (with stand) | 379 mm |
| Depth (with stand) | 254 mm |
| Width (with stand) | 561 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | AC, Audio (3.5mm), DVI, USB, VGA |
| General | |
|---|---|
| Product family | ProLite |
| Other features | |
|---|---|
| Energy efficiency class (old) | B |
| Certification | CE, TÜV-Bauart, VCCI, PSE, CU |
| Power management | Yes |
| Display viewable area (HxV) | 509.18 x 286.41 mm |
| Full HD | Yes |
| Dimensions (W x D x H) with stand | 561 x 254 x 379 mm |
| Display | IPS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
