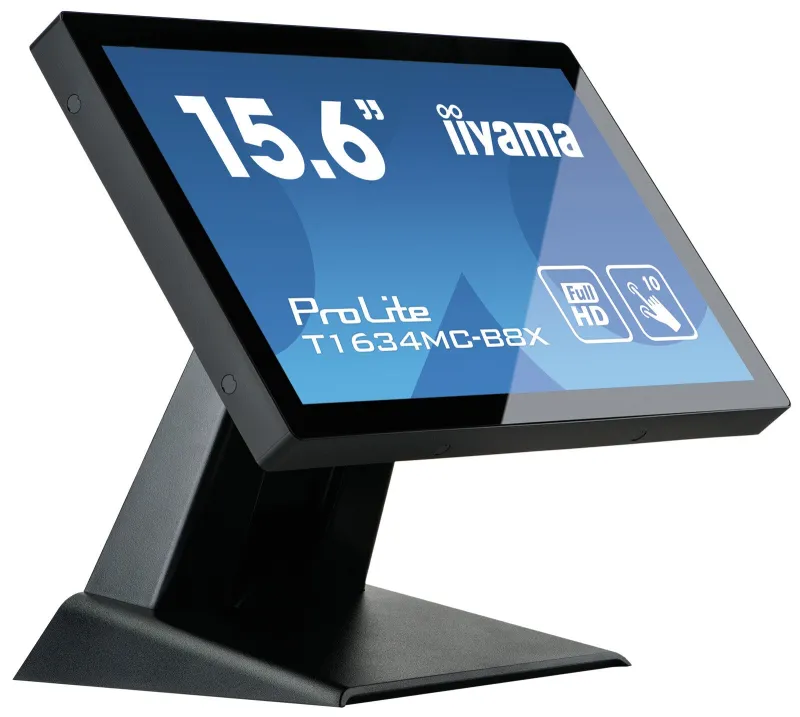

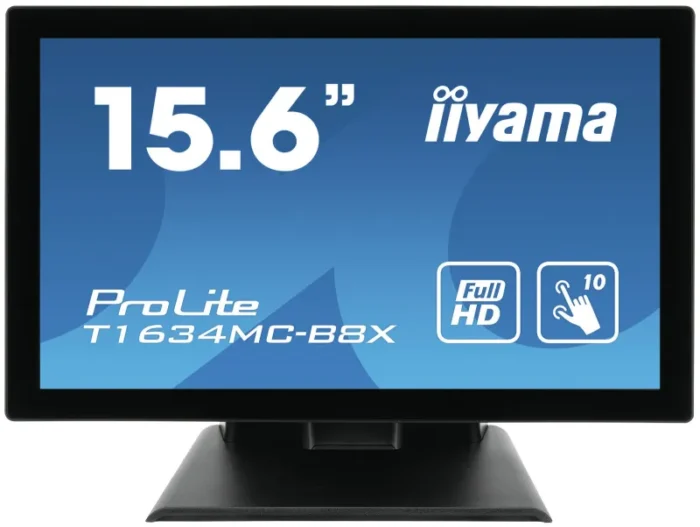

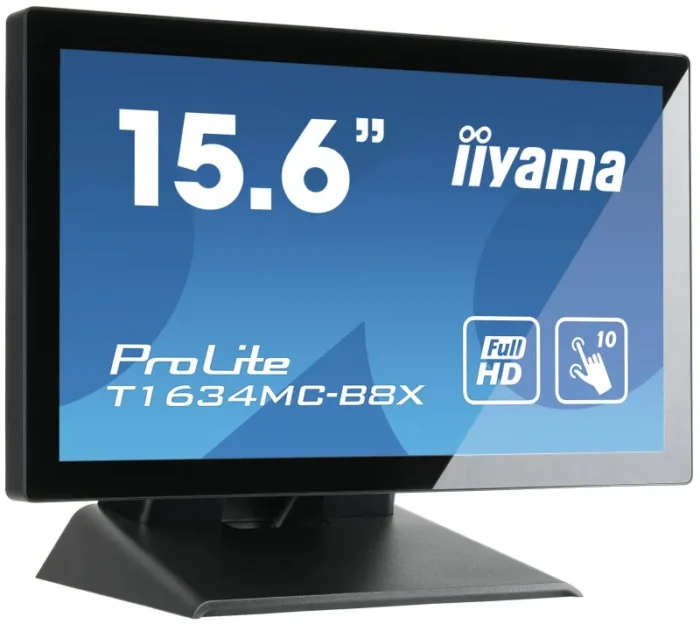

iiyama ProLite T1634MC-B8X computer monitor 39.6 cm (15.6″) 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black
- Touchscreen 39.6 cm (15.6″) LED IPS
- Full HD 1920 x 1080 pixels 16:9
- 60 Hz 25 ms 700:1
- 18 W
15.6″ Full HD PCAP 10 point touch monitor with edge-to-edge glass, IPS Panel Technology and touch through glass function
The ProLite T1634MC-B8X uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS Panel Technology and Full HD (1920×1080) resolution, it offers natural, highly accurate colours and wide viewing angles. In addition to the superb image quality, the screen comes with an IP65 rating, which means the screen and bezel is totally dust and water resistant, making it a perfect solution for demanding environments. The Touch-Through-Glass function guarantees a seamless and accurate touch response for interactive behind-glass-retail applications.
TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
| Display |
| Surface hardness |
7H |
| Display diagonal (metric) |
39.5 cm |
| Digital horizontal frequency |
30 – 84 kHz |
| Pixel pitch |
0.179 x 0.179 mm |
| Display number of colours |
16.2 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Maximum refresh rate |
60 Hz |
| Contrast ratio (typical) |
700:1 |
| Screen shape |
Flat |
| Response time |
25 ms |
| Display brightness |
450 cd/m² |
| Number of simultaneous touchpoints |
10 |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Projected capacitive system |
| Touchscreen type |
Multi-user |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
Yes |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
39.6 cm (15.6″) |
| Performance |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
| Built-in microphone |
No |
| Built-in camera |
No |
| Design |
| Glass thickness |
2.4 mm |
| Product colour |
Black |
| Ports & interfaces |
| HDCP |
Yes |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| USB Touch port |
Yes |
| Ergonomics |
| Number of OSD languages |
7 |
| On Screen Display (OSD) languages |
German, English, Spanish, French, Italian, Japanese |
| On Screen Display (OSD) |
Yes |
| Tilt adjustment |
Yes |
| Wall mountable |
Yes |
| Panel mounting interface |
100 x 100 mm |
| Power |
| European Product Registry for Energy Labelling (EPREL) code |
391708 |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
1.5 W |
| Power consumption (typical) |
18 W |
| Weight & dimensions |
| Weight (with stand) |
3.6 kg |
| Height (with stand) |
285.5 mm |
| Depth (with stand) |
202 mm |
| Width (with stand) |
381 mm |
| Packaging data |
| Package weight |
5.8 kg |
| Package height |
365 mm |
| Package depth |
290 mm |
| Package width |
455 mm |
| Packaging content |
| Cables included |
AC, DisplayPort, HDMI, USB |
| General |
| Product family |
ProLite |
| Other features |
| Placement supported |
Horizontal |
| Display viewable area (HxV) |
344.2 x 193.6 mm |
| International Protection (IP) code |
IP65 |
| Logistics data |
| Harmonized System (HS) code |
85285210 |
