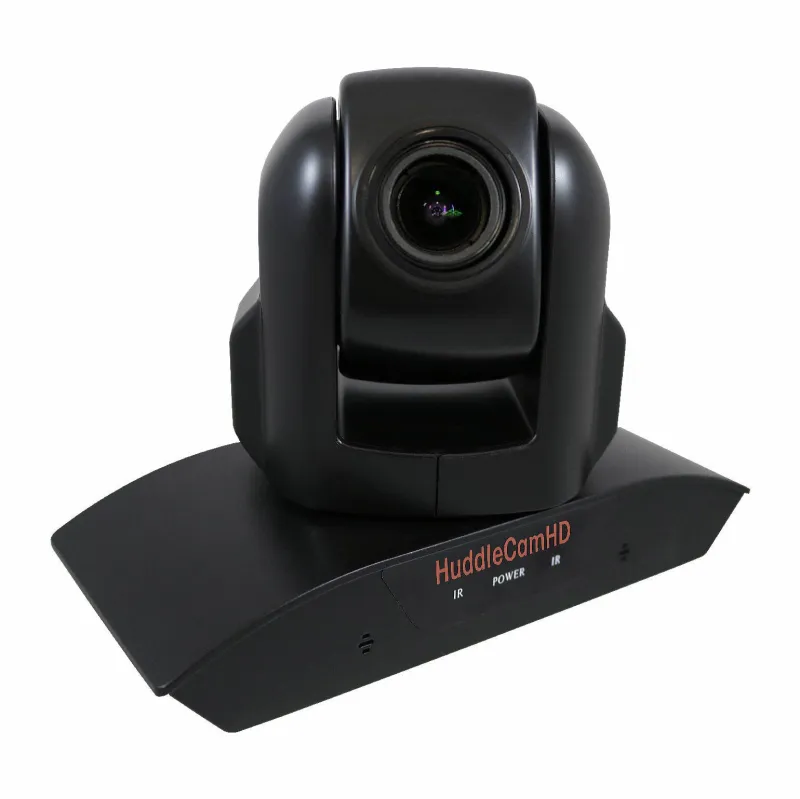

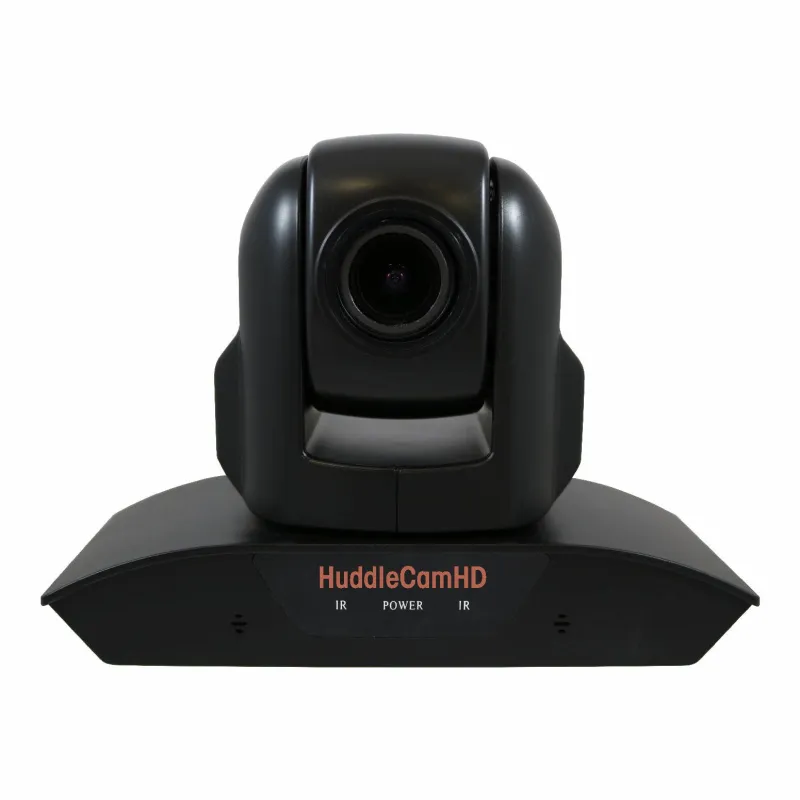

HuddleCamHD 3XA 2.1 MP Black 1920 x 1080 pixels 30 fps CMOS 25.4 / 2.8 mm (1 / 2.8″)
- 2.1 MP CMOS 25.4 / 2.8 mm (1 / 2.8″)
- Full HD 1920 x 1080 pixels 30 fps
- Optical zoom: 10
- Built-in microphone
- Remote control function
- Black
Introducing the 3XA
A complete USB web-conferencing camera and microphone solution with 3X Optical Zoom, for capturing all the action even, at long distances in small to medium sized rooms..
Single Cable Simplicity
Our customer favorite 3X camera with a built-in dual microphone array providing an easy USB 2.0 connection to any PC or Mac computer for web video conferencing simplicity.
Easy Setup
See just how easy it is to setup your auto-tracking camera on your network with our included Quick Start Guide and Video.
Universally Compatible
All HuddleCamHD cameras have been designed for plug and play compatibility with web-based video conferencing software such as: Skype, GoToMeeting, WebEX or Zoom. Enjoy seamless integration even with live streaming applications such as Facebook Live.
| Camera | |
|---|---|
| Number of camera presets | 64 |
| Horizontal field of view (wide) | 84° |
| Horizontal field of view (tele) | 32° |
| Focal length range | 3.3 – 10 mm |
| Optical zoom | 10x |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8″) |
| Sensor type | CMOS |
| Megapixel (approx.) | 2.1 MP |
| Video | |
|---|---|
| Baud rate | 38.4 Kbit/s |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 720p, 1080p |
| Resolution at capture speed | 1920×1080@30fps |
| HD type | Full HD |
| Maximum frame rate | 30 fps |
| Maximum video resolution | 1920 x 1080 pixels |
| Design | |
|---|---|
| Pan range | 0 – 340° |
| Tilt angle range | -90 – 30° |
| Mounting type | Stand |
| Product colour | Black |
| Ports & interfaces | |
|---|---|

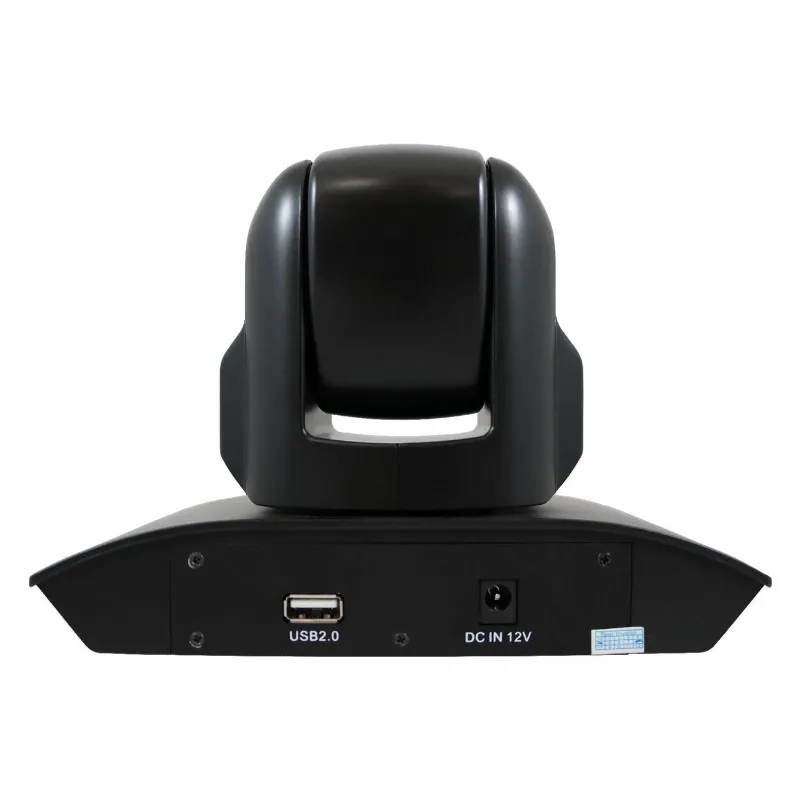

| DC-in jack | Yes |
| USB 2.0 ports quantity | 1 |
| Power | |
|---|---|
| Input current | 2 A |
| DC input voltage | 12 V |
| Power source type | DC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 45 °C |
| Audio | |
|---|---|
| Noise reduction | Yes |
| Built-in microphone | Yes |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| AC adapter included | Yes |
| USB cable length | 4.8 m |
| Cables included | USB |
| Remote control included | Yes |
| Performance | |
|---|---|
| Certification | ISO9001: 2008 |
| Plug and Play | Yes |
| Remote control function | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 640 g |
| Height | 132 mm |
| Depth | 78 mm |
| Width | 180 mm |
