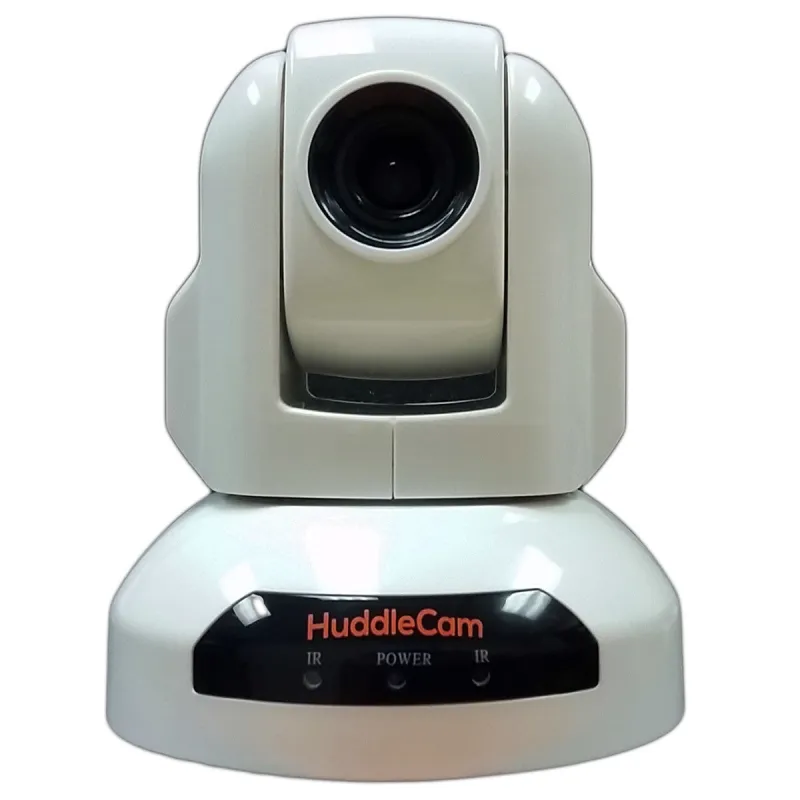

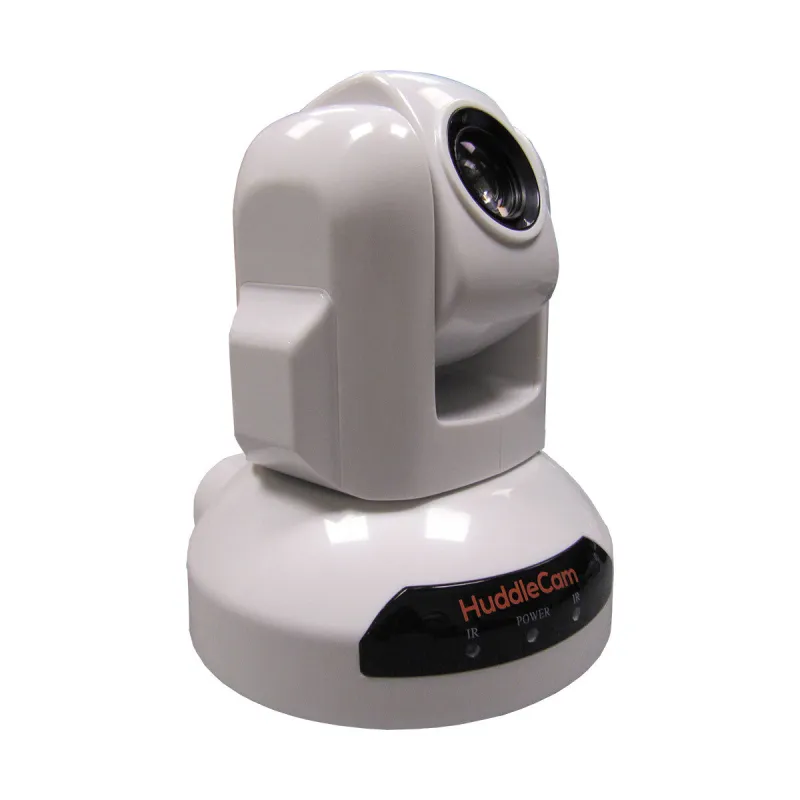

HuddleCamHD 3X 2.1 MP White 1920 x 1080 pixels 30 fps CMOS 25.4 / 2.7 mm (1 / 2.7″)
- 2.1 MP CMOS 25.4 / 2.7 mm (1 / 2.7″)
- Full HD 1920 x 1080 pixels 30 fps
- Optical zoom: 3
- Remote control function
- White
HuddleCamHD cameras are the perfect cameras for professional video conferencing. Offering superior quality at an affordable price, the entire HuddleCamHD line of cameras is easy to setup and ready to use in a matter of minutes.
Be seen in 1080p
Crystal clear High Definition 1080p video with lossless 3X optical zoom letting you get up close to see and interact with your team.
Easy Set Up
With HuddleCamHD you are getting the easiest solution possible. Simply plug your camera into your computers USB port and start your video conference.
Plug-and-Play USB Connectivity
Easily connect your camera to a PC, Mac or ChromeBox without the need for additional software. For best results use a quad-core processor.
Ideal Field of View
The HuddleCamHD 3X has an ideal field of view for long and narrow rooms. Wide enough to capture your entire table but narrow enough to zoom across the room onto a white board or area of interest.
Use your favorite software
Works with virtually every online video conferencing software with no need for additional drivers or proprietary connections.
Camera Presets
Access camera presets with the included IR remote control. Easily control your cameras pan tilt and zoom along with other fine tuning setting from your remote control.
Robust Installation Options
Easily invert the camera image for installation on the ceiling. Use the 1/4 20 to fasten the camera to a standard tri-pod or simply mount on the wall.

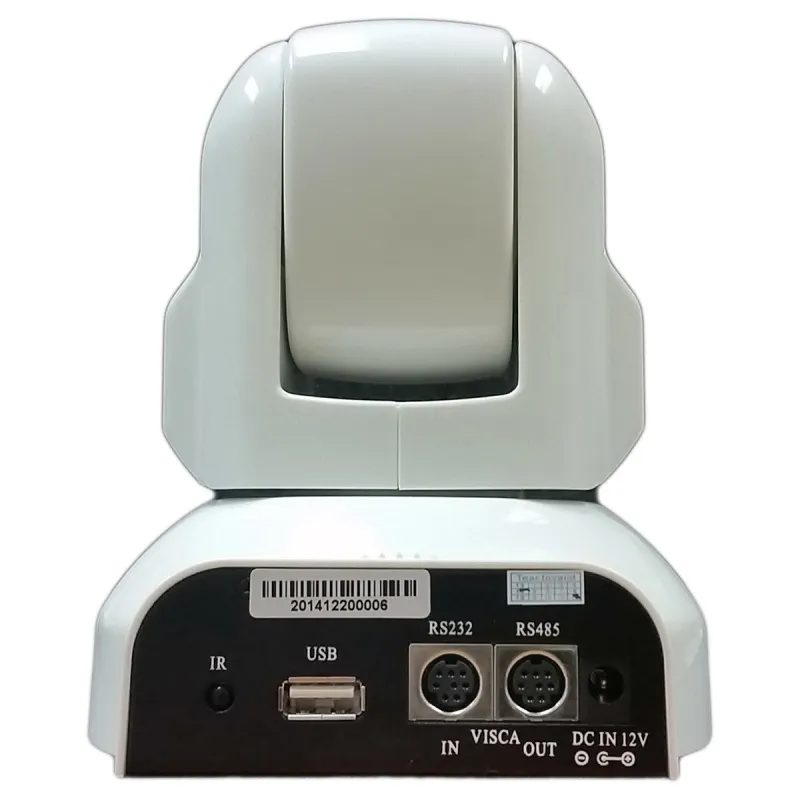

RS-232 Camera Control
Integrate the camera into a larger control systems such as Crestron or AMX. Even convert RS-232 to USB and control from your computer.
| Camera | |
|---|---|
| Number of camera presets | 64 |
| Horizontal field of view (wide) | 82° |
| Horizontal field of view (tele) | 36° |
| Focal length range | 3 – 10 mm |
| Optical zoom | 3x |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7″) |
| Sensor type | CMOS |
| Megapixel (approx.) | 2.1 MP |
| Video | |
|---|---|
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 720p, 1080p |
| Resolution at capture speed | 1920×1080@30fps |
| HD type | Full HD |
| Maximum frame rate | 30 fps |
| Maximum video resolution | 1920 x 1080 pixels |
| Design | |
|---|---|
| Pan range | 0 – 340° |
| Tilt angle range | -90 – 30° |
| Mounting type | Stand |
| Product colour | White |
| Ports & interfaces | |
|---|---|
| DVI port | Yes |
| RS-485 ports | 1 |
| RS-232 input ports | 1 |
| USB 2.0 ports quantity | 1 |
| Power | |
|---|---|
| Input current | 2 A |
| DC input voltage | 12 V |
| Power source type | DC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 45 °C |
| Packaging content | |
|---|---|
| Control adapter | Yes |
| Quick start guide | Yes |
| Mounting kit | Yes |
| USB cable length | 4.8 m |
| Cables included | Serial, USB |
| Remote control included | Yes |
| Power supply included | Yes |
| Performance | |
|---|---|
| Certification | ISO9001: 2008 |
| Plug and Play | Yes |
| Remote control function | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 750 g |
| Height | 145 mm |
| Depth | 120 mm |
| Width | 124 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 1.66 kg |
| Package height | 225 mm |
| Package depth | 178 mm |
| Package width | 222 mm |
