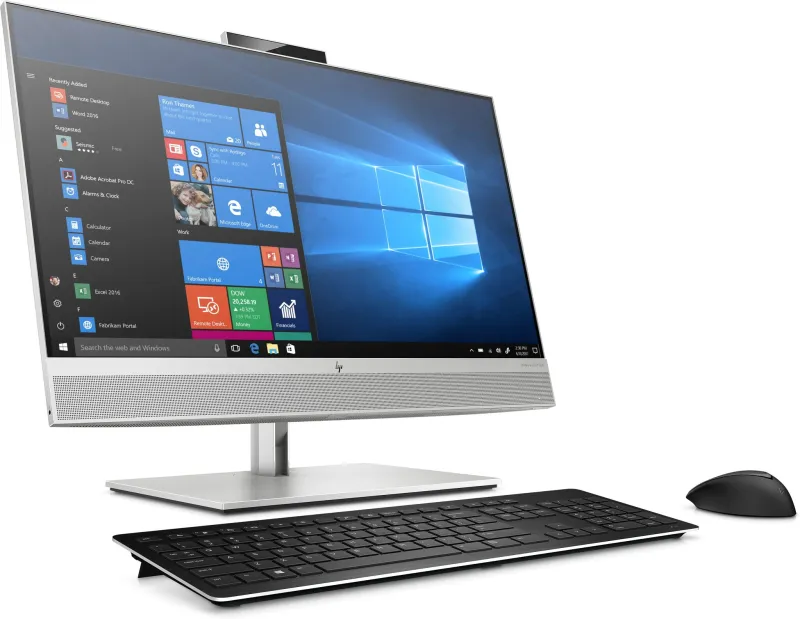

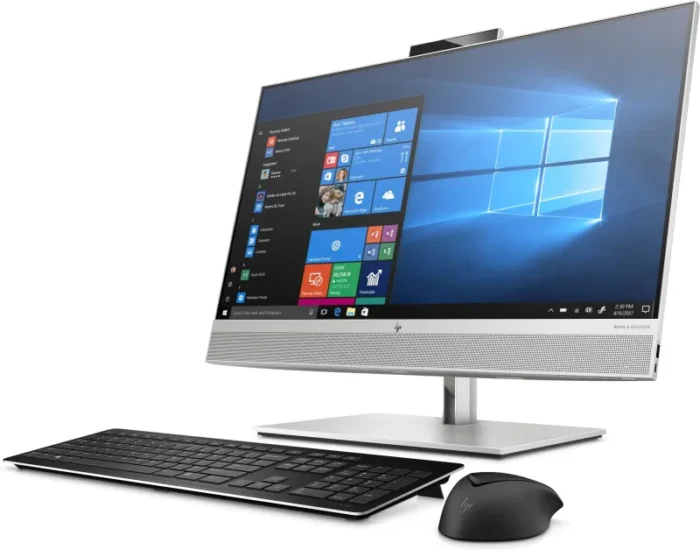

HP EliteOne 800 G6 All-in-One 24inch Touchscreen PC Wolf Pro SecurityEdition
- Intel® Core™ i5-10500 (3.1 GHz base frequency, up to 4.5 GHz with Intel® Turbo Boost Technology, 12 MB L3 cache, 6 cores)
- Windows 10 Pro
- 60.5 cm (23.8″) diagonal, FHD (1920 x 1080), touch, IPS, anti-glare, 250 nits, 72% NTSC
- Intel® UHD Graphics 630
- 8 GB memory; 256 GB SSD storage
Elegance and power all in one
The remarkably thin 23.8-inch diagonal HP EliteOne 800 All-in-One grabs your attention with its stunning design. Elevate your expectations of what an AiO can do with this powerful, secure, no-compromise solution for those on the front lines of business.
| Display |
| Colour gamut |
72% |
| RGB colour space |
NTSC |
| Anti-glare screen |
Yes |
| Panel type |
IPS |
| Display brightness |
250 cd/m² |
| Native aspect ratio |
16:9 |
| HD type |
Full HD |
| Touchscreen |
Yes |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
60.5 cm (23.8″) |
| Processor |
| Processor cache type |
L3 |
| Processor cache |
12 MB |
| Processor frequency |
3.1 GHz |
| Processor boost frequency |
4.5 GHz |
| Processor threads |
12 |
| Processor cores |
6 |
| Processor model |
i5-10500 |
| Processor generation |
10th gen Intel® Core™ i5 |
| Processor family |
Intel® Core™ i5 |
| Processor manufacturer |
Intel |
| Memory |
| ECC |
No |
| Memory form factor |
DIMM/SO-DIMM |
| Memory layout (slots x size) |
1 x 8 GB |
| Memory clock speed |
2666 MHz |
| Memory slots type |
SO-DIMM |
| Memory slots |
2 |
| Maximum internal memory |
64 GB |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
8 GB |
| Storage |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express, NVMe |
| NVMe |
Yes |
| SSD memory type |
TLC |
| SSD capacity |
256 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
256 GB |
| Storage media |
SSD |
| Total storage capacity |
256 GB |
| Graphics |
| On-board graphics card model |
Intel® UHD Graphics 630 |
| On-board graphics card |
Yes |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| Audio |
| Built-in microphone |
Yes |
| Speakers manufacturer |
Bang & Olufsen |
| Built-in speaker(s) |
Yes |
| Camera |
| Total megapixels |
5 MP |
| Built-in camera |
Yes |
| Network |
| Bluetooth version |
5.0 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
10,1000,100 Mbit/s |
| Ethernet LAN |
Yes |
| Antenna type |
2×2 |
| WLAN controller model |
Intel Wi-Fi 6 AX201 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN controller manufacturer |
Intel |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| DisplayPorts quantity |
1 |
| HDMI version |
2.0a |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| Design |
| Country of origin |
China |
| Product colour |
Silver |
| Performance |
| Motherboard chipset |
Intel Q470 |
| Market positioning |
Business |
| Product type |
All-in-One PC |
| Software |
| Bundled software |
HP Wolf Pro Security Edition (3 years) |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Pro |
| Processor special features |
| Intel Trusted Execution Technology |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel Stable Image Platform Program (SIPP) |
Yes |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Idle States |
Yes |
| Embedded options available |
No |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel Clear Video Technology |
Yes |
| Intel 64 |
Yes |
| Execute Disable Bit |
Yes |
| CPU configuration (max) |
1 |
| Brand-specific features |
| HP Management tools |
HP BIOS Config Utility (download); HP Client Catalog (download); HP Driver Packs (download); HP System Software Manager (download); HP Cloud Recovery; HP Management Integration Kit for Microsoft System Center Configuration Management Gen 4; HP Image Assistant Gen 5 |
| HP segment |
Business |
| General |
| Product family |
EliteOne |
| Product series |
800 |
| Weight & dimensions |
| Package weight |
11.3 kg |
| Package height |
635 mm |
| Package depth |
186 mm |
| Package width |
628 mm |
| Weight (with stand) |
10.4 kg |
| Height (with stand) |
541.1 mm |
| Depth (with stand) |
236.9 mm |
| Width (with stand) |
539.7 mm |
| Operational conditions |
| Operating relative humidity (H-H) |
5 – 90% |
| Operating temperature (T-T) |
10 – 35 °C |
| Sustainability |
| Sustainable technologies and materials |
Low halogen |
| Other features |
| Keyboard type |
USB |
| Display diagonal (metric) |
60.5 cm |
