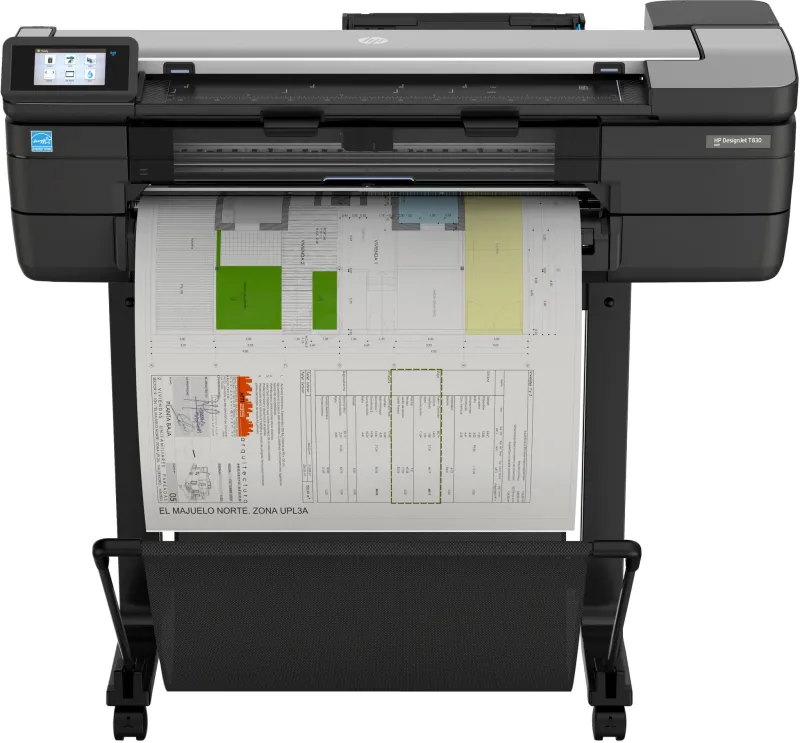

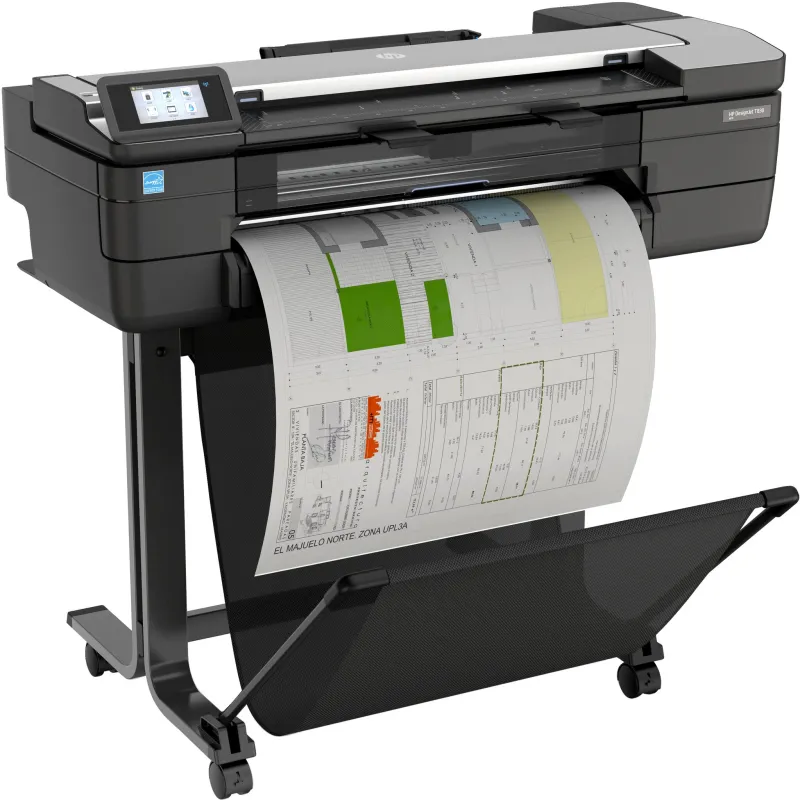

HP Designjet T830 24-in Multifunction Printer
Dynamic security enabled printer Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.
| Printing |
| Print head |
1 |
| Printing colours |
Cyan, Magenta, Matte black, Yellow |
| Page description languages |
TIFF, HP-GL/2, HP-RTL, URF, JPEG, CALS G4 |
| Number of print cartridges |
4 |
| Print resolution colour |
2400 x 1200 DPI |
| Maximum resolution |
2400 x 1200 DPI |
| Colour |
Yes |
| Print technology |
Inkjet |
| Copying |
| Maximum number of copies |
99 copies |
| Copier resize |
50 – 400% |
| Maximum copy resolution |
600 x 600 DPI |
| Copying |
Colour copying |
| Scanning |
| Maximum media thickness |
0.8 mm |
| Accuracy |
0.1% |
| Scan to |
Cloud, E-mail, USB |
| Scan technology |
CIS |
| Maximum scan resolution |
600 x 600 DPI |
| Optical scanning resolution |
600 x 600 DPI |
| Scanning |
Colour scanning |
| Paper handling |
| Print margin cut-sheet |
5 x 5 x 5 x 5 |
| Maximum roll diameter |
10 cm |
| Media thickness |
0.8 mm |
| Cut sheets |
Yes |
| Borderless printing media sizes |
A3, A4 |
| ISO A-series sizes (A0…A9) |
A1, A2, A3, A4 |
| Paper tray media types |
Bond paper, Coated paper, Glossy paper, Heavy paper, Matte paper, Photo paper, Plain paper, Recycled paper, Satin paper, Semi-glossy paper |
| Maximum print size |
610 x 1897 mm |
| Ports & interfaces |
| Mobile printing technologies |
Apple AirPrint, HP ePrint |
| Ethernet LAN data rates |
1000 Mbit/s |
| Wi-Fi Direct |
Yes |
| USB connector |
USB Type-A |
| USB port |
Yes |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Performance |
| HP segment |
Business |
| Certification |
Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/R&TTE Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC) |
| Sound pressure level (printing) |
48 dB |
| Sound power level (standby) |
16 dB |
| Maximum internal memory |
1024 MB |
| Internal memory |
1024 MB |
| Product colour |
Black, Silver |
| Brand-specific features |
| HP dynamic security |
Yes |
| HP ePrint |
Yes |
| Power |
| AC input frequency |
50/60 Hz |
| AC input voltage |
110 – 240 V |
| Power consumption (standby) |
0.2 W |
| Power consumption (typical) |
35 W |
| Power consumption (off) |
0.14 W |
| Power consumption (sleep) |
3.5 W |
| Operational conditions |
| Storage temperature (T-T) |
-25 – 55 °C |
| Operating relative humidity (H-H) |
20 – 80% |
| Operating temperature (T-T) |
5 – 40 °C |
| System requirements |
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Sustainability |
| Sustainability compliance |
Yes |
| Sustainable technologies and materials |
Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; FSC®-certified papers and a range of recyclable HP media with a take-back program; ENERGY STAR® certified; EPEAT® registered |
| Sustainability certificates |
ENERGY STAR, Forest Stewardship Council (FSC) |
| Weight & dimensions |
| Weight |
46.7 kg |
| Height |
1155 mm |
| Depth |
605 mm |
| Width |
1098 mm |
| Packaging data |
| Bundled software |
HP Click, HP Smart app, HP Support Assistant, HP Print Preview for Windows, HP DesignJet Utility for macOS and Windows |
| Cartridge(s) included |
Yes |
| Package weight |
65.7 kg |
| Package height |
645 mm |
| Package depth |
570 mm |
| Package width |
1310 mm |
| General |
| Product family |
Designjet |
| Other features |
| All-In-One-multitasking |
Yes |
