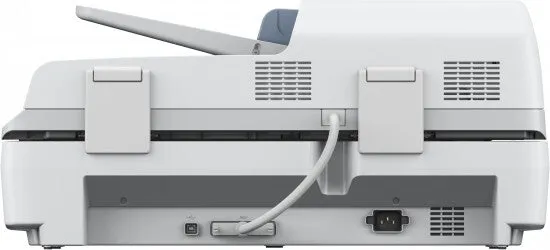

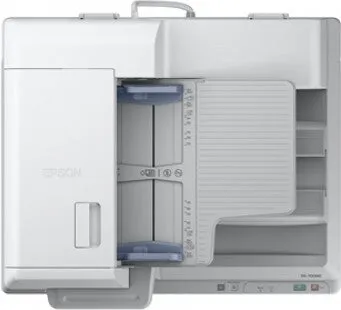

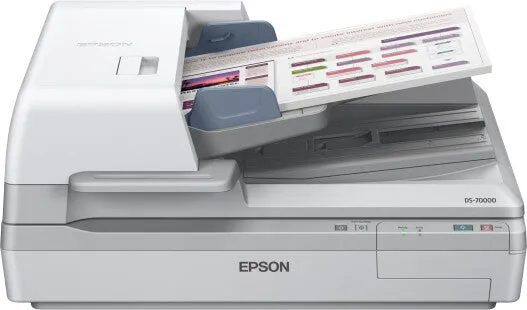

Epson WorkForce DS-70000 Flatbed & ADF scanner 600 x 600 DPI A3 White
- Scanner type: Flatbed & ADF scanner 600 x 600 DPI
- Colour scanning Duplex scanning
- LCD
- A3 Scanning media types supported: Envelopes, Plain paper, Recycled paper, Thick paper, Thin paper, Transparencies
- Maximum scan size: 297 x 2540 mm
- USB port Ethernet LAN
- Power supply type: AC 79 W
- Scanning noise level: 67.9 dB
The Epson WorkForce DS-70000 offers reliable, high-quality document capture, conversion and distribution into document management systems. This A3 document scanner is ideal for companies with heavy scanning needs.
Designed to fit into complex IT systems effortlessly, this high-performance device can handle large batches of documents in a single go, quickly and efficiently. With a scanning speed up to 70ppm/140ipm, this production scanner ensures heavy duty scanning jobs are performed effortlessly. This scanner provides fast and trouble-free scanning due to a 200 A3-page ADF, one-pass duplex scanning, and Double Feed Detection.
Document Capture Pro makes it easy to integrate this scanner into your document management system, speeding up workflow and enabling users to capture, convert and distribute scanned information in virtually any document repository or document management system.
This scanner and its features can be shared between multiple users using the optional Network Interface Panel. Combined with Document Capture Pro solutions, the Network Interface Panel allows users to benefit from Push Scan features and customise ‘scan to’ job functions, such as ‘scan to email’ or ‘scan to Microsoft SharePoint®’, among others*2. These features enable complicated tasks to be carried out effortlessly, increasing users’ acceptance and eliminating training requirements.
Epson ReadyScan LED technology, combined with an ENERGY STAR qualification*1, creates an environmentally friendly device.
-High-speed scanning: 70ppm/140ipm scanning speed
-High capacity ADF: 200 A3-page ADF
-Hassle-free: Double Feed Detection
-Network compatible: Optional Network Interface Panel
-Eco-friendly: ENERGY STAR-qualified *1
| Scanning | |
|---|---|
| Duplex ADF scan speed (b/w, A4) | 140 ipm |
| Duplex ADF scan speed (colour, A4) | 140 ipm |
| ADF scan speed (colour, A4) | 70 ppm |
| ADF scan speed (b/w, A4) | 70 ppm |
| Film scanning | No |
| Output colour depth | 24 bit |
| Input colour depth | 48 bit |
| Duplex scanning | Yes |
| Colour scanning | Yes |
| Optical scanning resolution | 600 x 600 DPI |
| Maximum scan size | 297 x 2540 mm |
| Design | |
|---|---|
| Display | LCD |
| Product colour | White |
| Built-in display | No |
| Scanner type | Flatbed & ADF scanner |
| Performance | |
|---|---|
| Scan drivers | ISIS, TWAIN, WIA |
| Daily duty cycle (max) | 8000 pages |
| Scan file formats | JPG, PDF, TIFF |
| Light source | ReadyScan LED |
| Input capacity | |
|---|---|
| Auto document feeder (ADF) input capacity | 200 sheets |
| Paper handling | |
|---|---|
| Auto Document Feeder (ADF) media weight | 35 – 128 g/m² |
| Legal | Yes |
| Letter | Yes |
| ISO B-series sizes (B0…B9) | B4, B5, B6 |
| ISO A-series sizes (A0…A9) | A3, A4, A5, A6 |
| Scanning media types supported | Envelopes, Plain paper, Recycled paper, Thick paper, Thin paper, Transparencies |
| Maximum ISO A-series paper size | A3 |
| Ports & interfaces | |
|---|---|
| Standard interfaces | USB 2.0 |
| Optional connectivity | Ethernet |
| USB version | 2.0 |
| USB port | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Power | |
|---|---|
| Input voltage | 100-240 V |
| AC input frequency | 50 – 60 Hz |
| Power consumption (PowerSave) | 12.5 W |
| Power consumption (standby) | 1.5 W |
| Power supply type | AC |
| Power consumption (typical) | 79 W |
| Weight & dimensions | |
|---|---|
| Weight | 26.9 kg |
| Height | 289 mm |
| Depth | 522 mm |
| Width | 640 mm |
| Packaging data | |
|---|---|
| Package weight | 35 kg |
| Package height | 534 mm |
| Package depth | 875 mm |
| Package width | 745 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| Bundled software | ABBYY FineReader® Sprint 8.0 (MacOS), ABBYY FineReader® Sprint 9.0 (Windows), Epson Document Capture Pro (Windows only), Epson Document Capture Pro Server (on free download), Epson Event Manager (Mac Only), Epson Scan, EpsonNet Config |
| Drivers included | No |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Server operating systems supported | Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2 |
| Mac operating systems supported | Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 85% |
| Operating relative humidity (H-H) | 10 – 80% |
| Storage temperature (T-T) | -25 – 60 °C |
| Operating temperature (T-T) | 5 – 35 °C |
| Logistics data | |
|---|---|
| Pallet gross length | 120 cm |
| Pallet gross width | 80 cm |
| Pallet gross height | 180 cm |
| Products per pallet layer | 1 pc(s) |
| Products per pallet layer (UK) | 1 pc(s) |
| Products per pallet (UK) | 3 pc(s) |
| Pallet length (UK) | 120 cm |
| Pallet width (UK) | 100 cm |
| Pallet height (UK) | 180 cm |
| Harmonized System (HS) code | 84716070 |
| Country of origin | China |
| Products per pallet | 3 pc(s) |
