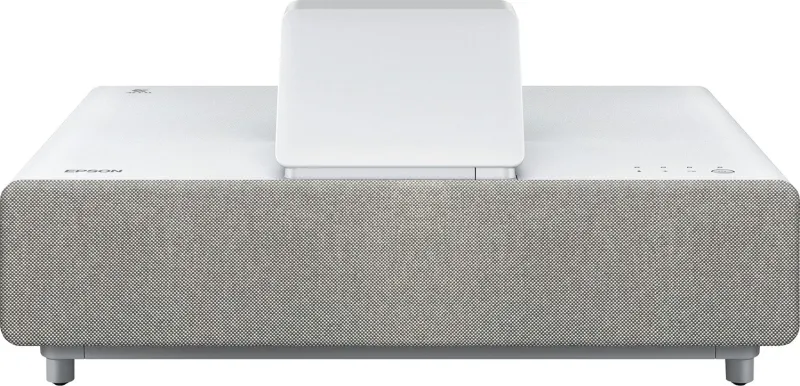

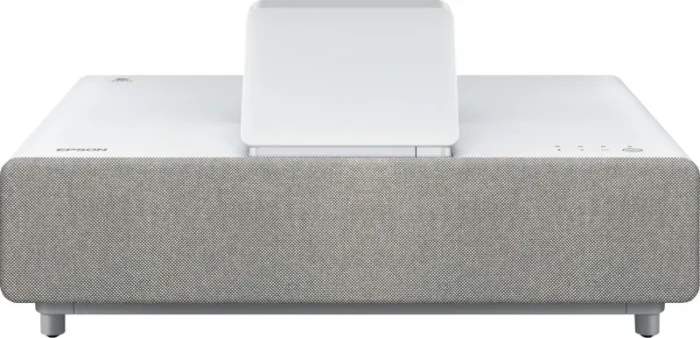

Epson Home Cinema EH-LS500W Ultra short throw projector 4000 ANSI lumens 3LCD UHD 4K (3840×2160) 3D White
- Home cinema Ultra short throw projector White
- 3LCD 4000 ANSI lumens
- Laser 20000 h
- UHD 4K (3840×2160) 16:9 2500000:1
- Screen size compatibility: 1651 – 3048 mm (65 – 120″) Number of colours: 1.07 billion colours
- Focus: Manual Zoom capability
- Built-in speaker(s) 10 W
- 3D
- AC 366 W
| Projector | |
|---|---|
| Keystone correction, horizontal | -3 – 3° |
| Keystone correction, vertical | -3 – 3° |
| White light output | 2000 ANSI lumens |
| Colour light output | 2000 ANSI lumens |
| Matrix size | 1.57 cm (0.62″) |
| Vertical scan range | 192 – 240 Hz |
| Projector brightness (economic mode) | 1200 ANSI lumens |
| Number of colours | 1.07 billion colours |
| Projection distance | 0.4 – 0.82 m |
| Screen size compatibility | 1651 – 3048 mm (65 – 120″) |
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 2500000:1 |
| Projector native resolution | UHD 4K (3840×2160) |
| Projection technology | 3LCD |
| Projector brightness | 4000 ANSI lumens |
| Light source | |
|---|---|
| Service life of light source | 20000 h |
| Light source type | Laser |
| Lens system | |
|---|---|
| Throw ratio | 0.27 – 0.37:1 |
| Zoom ratio | 1.35:1 |
| Zoom type | Auto |
| Zoom capability | Yes |
| Fixed focal length | 3.9 mm |
| Focus | Manual |
| Video | |
|---|---|
| 3D video colour modes | 3D Dynamic, 3D Cinema |
| Video processing | 10 bit |
| Video colour modes | Cinema, Dynamic, Game, Bright cinema |
| Supported 3D formats | Side by side, Top and bottom |
| 3D | Yes |
| Full HD | Yes |
| Ports & interfaces | |
|---|---|
| Serial interface type | RS-232C |
| Mini-USB 2.0 ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 1 |
| Storage | |
|---|---|
| Card reader integrated | No |
| Features | |
|---|---|
| Operating system installed | Android TV |
| Country of origin | China |
| Noise level (economic mode) | 23 dB |
| Noise level | 37 dB |
| Multimedia | |
|---|---|
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Placement | Desktop, TV cabinet |
| Product colour | White |
| Market positioning | Home cinema |
| Product type | Ultra short throw projector |
| Power | |
|---|---|
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100-240 V |
| Power consumption (economy mode) | 230 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 366 W |
| Power source | AC |
| General | |
|---|---|
| Product family | Home Cinema |
| Software | |
|---|---|
| Software support | via: AMX, Crestron (Network), Control4 |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 90% |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -10 – 60 °C |
| Operating temperature (T-T) | 5 – 35 °C |
| Weight & dimensions | |
|---|---|
| Package weight | 13.3 kg |
| Package height | 340 mm |
| Package depth | 590 mm |
| Package width | 531 mm |

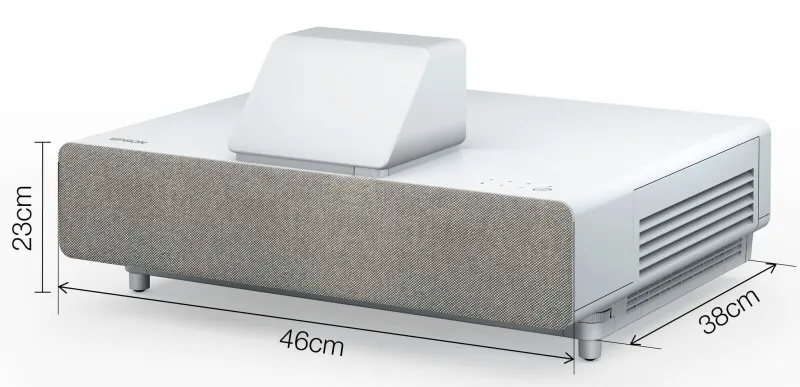

| Height | 228 mm |
| Depth | 375 mm |
| Width | 458 mm |
| Weight | 9.3 kg |
| Packaging content | |
|---|---|
| Warranty card | Yes |
| Cables included | AC |
| Quick start guide | Yes |
| Manual | Yes |
| Batteries included | Yes |
| Remote control included | Yes |
| Technical details | |
|---|---|
| USB display function | 2 in 1: Image / Mouse |
| Logistics data | |
|---|---|
| Products per pallet | 12 pc(s) |
| Products per pallet (UK) | 12 pc(s) |
| Pallet gross weight | 0 g |
| Pallet weight (UK) | 0 g |
| Harmonized System (HS) code | 85286200 |
| Quantity per pack | 1 pc(s) |
