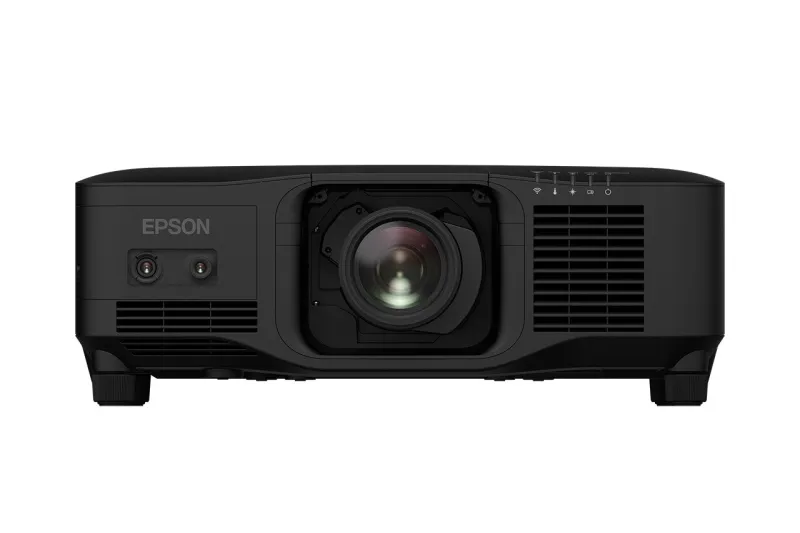

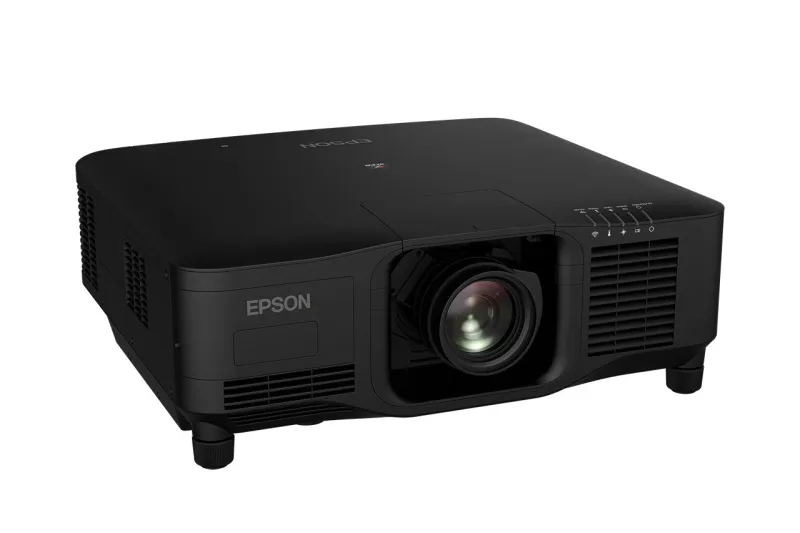

Epson EB-PU2216B Standard throw projector 16000 ANSI lumens 3LCD WUXGA (1920×1200) Black
- Ultra-lightweight and compact: Easy to store, transport and install
- Stunning image displays: 16,000lm, 4K Enhancement technology, WUXGA resolution
- Easy to use Simple: installation, stacking, lens flexibility and control
- Fit-and-forget reliability: Enhanced dustproof construction. IP5x certified
- Environmental benefits: Lower power consumption, reduced packaging, reduced weight
16,000lm laser projector
The EB-PU2216B offers users significant advantages including much reduced size and weight, easier installation and set-up, simplified maintenance and great image quality. This ultra-lightweight, compact laser projector has been designed for use in large auditoriums, live events, concerts, conference rooms where it delivers high-impact immersive experiences.
Compact and lightweight
The reduced weight and size means the projector is easier to store, transport and install, saving on warehouse space as well as labour and delivery costs.
Outstanding image quality
This high lumens, 3LCD projector offers WUXGA resolution with 4K enhancement and HDR for rich textures and sharper images.
Flexibility
The EB-PU2216B’s functionality enables simple installation, stacking, lens flexibility and control. It includes in-built processing for PC-free stacking which means two supported projectors can be stacked to double the brightness without the need for external computerware.
Reliability
Includes improved dustproofing as the hermetically sealed optical engine, and laser light source unit, prevent dust contamination to ensure enhanced durability.
| Projector | |
|---|---|
| Heat dissipation | 3682 BTU/h |
| White light output | 16000 ANSI lumens |
| Colour light output | 16000 ANSI lumens |
| Matrix size | 2.62 cm (1.03″) |
| Projector brightness (economic mode) | 11200 ANSI lumens |
| Number of colours | 1.07 billion colours |
| Contrast ratio (dynamic) | 2500000:1 |
| Screen size compatibility | 1524 – 25400 mm (60 – 1000″) |
| Native aspect ratio | 16:10 |
| Contrast ratio (typical) | 2000:1 |
| Projector native resolution | WUXGA (1920×1200) |
| Projection technology | 3LCD |
| Projector brightness | 16000 ANSI lumens |
| Light source | |
|---|---|
| Service life of light source (economic mode) | 30000 h |
| Service life of light source | 20000 h |
| Light source type | Laser |
| Lens system | |
|---|---|
| Interchangeable lens | Yes |
| Lens position memory | 10 |
| Throw ratio | 0.35 – 7.41:1 |
| Zoom ratio | 1.6:1 |
| Zoom type | Auto |
| Zoom capability | Yes |
| Focal length range | varies by lens |
| Video | |
|---|---|
| Video processing | 10 bit |
| Video colour modes | Cinema, Dynamic, Natural, Presentation, DICOM simulation mode, Multi-projection, BT.709 |
| Full HD | Yes |
| Ports & interfaces | |
|---|---|
| AC (power) in | Yes |
| Serial interface type | RS-232C |
| USB 2.0 Type-B ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 3 |
| Service port type | USB Type-B |
| HDBaseT port | Yes |
| DVI port | Yes |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Password protection | Yes |
| Country of origin | China |
| 4K Ultra HD upscaling | Yes |
| Preset modes | Cinema, Dynamic |
| Noise level (economic mode) | 34 dB |
| Noise level | 38 dB |
| Design | |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Placement | Ceiling, Desktop, Flying frame |
| Product colour | Black |
| Product type | Standard throw projector |
| Power | |
|---|---|
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 200-240 V |
| Power consumption (economy mode) | 773 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (typical) | 1083 W |
| Power source | AC |
| Software | |
|---|---|
| Software support | via: AMX, Crestron (Network), Extron |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 90% |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -10 – 60 °C |
| Weight & dimensions | |
|---|---|
| Package weight | 0 g |
| Height | 218 mm |
| Depth | 492 mm |
| Width | 586 mm |
| Weight | 24.2 kg |
| Packaging content | |
|---|---|
| Bundled software | Inhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Content Manager, Epson Projektor Management, Epson Projektor Professional Tool |
| Warranty card | Yes |
| Cables included | AC |
| Manual | Yes |
| WLAN adapter included | Yes |
| Batteries included | Yes |
| Remote control included | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85286200 |
| Quantity per pack | 1 pc(s) |
| Other features | |
|---|---|
| Supported network protocols | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
