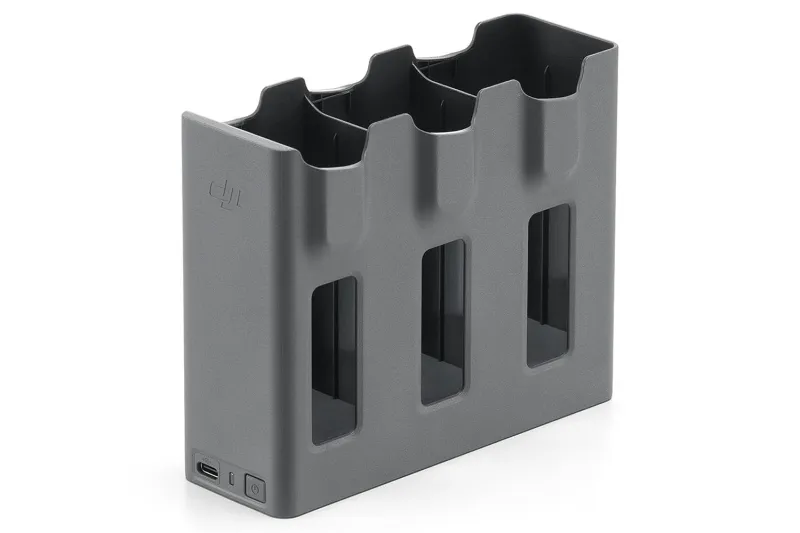

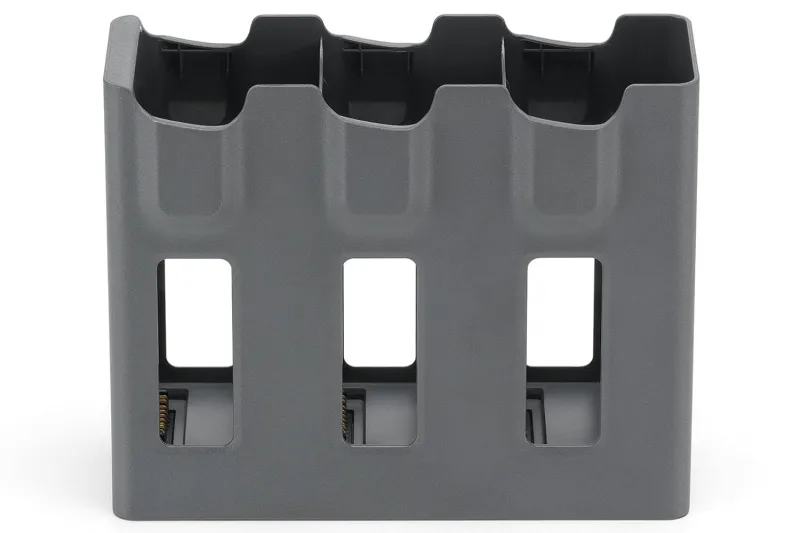

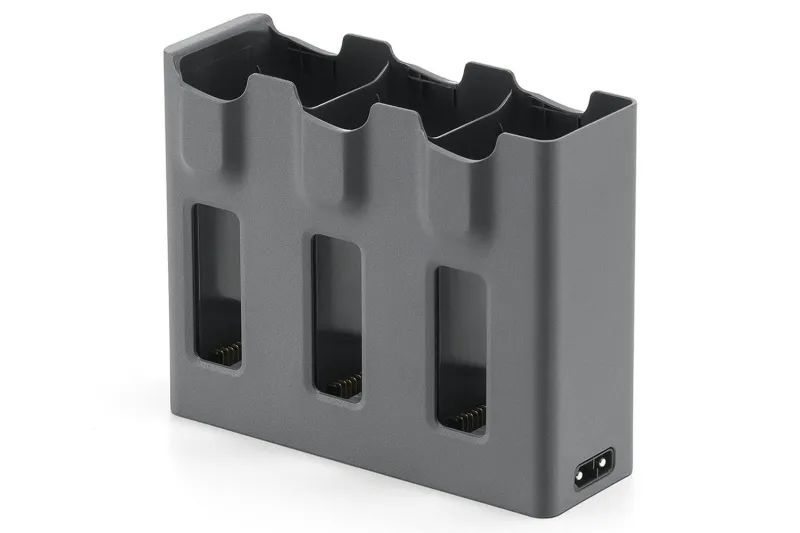

DJI Mavic 4 Pro Parallel Charging Hub
Boost Your Creativity with Efficient Parallel Charging
With the DJI Mavic 240W Power Adapter [1], the Mavic 4 Pro Parallel Charging Hub fully charges one battery in 51 minutes and can charge three batteries at the same time via the Mini SDC port. The Parallel Charging Hub boosts efficiency by prioritizing the battery with the lowest charge. Once all three batteries reach the same charge level, it switches to parallel charging, fully charging all three batteries in just 90 minutes [2].
By leveraging the batteries’ stored power, the Parallel Charging Hub can also transform into a 100W power bank, providing a convenient way to fast-charge phones and laptops on location. Additionally, it features a power accumulation function, which allows you to transfer the remaining power of multiple low-power batteries into the battery with the highest remaining power [3].
Battery Charging Hub
- Input: USB-C Port: 5 V to 20 V, max 5 A , Mini SDC Port: 11.2 V to 17.6 V, max 15 A
- Output: Battery Port: 10 V to 17.2 V, max 12 A
- Rated Power: USB-C Port: Supports up to 100 W, Mini SDC Port: Supports up to 240 W/15 A
Charging Type
- When used with the DJI Mavic 240W Power Adapter: Supports parallel charging of three batteries (The Parallel Charging Hub will prioritize the battery with the lowest charge and switch to parallel charging once all three batteries reach the same charge level.)
- When used with the DJI 100W USB-C Power Adapter: Charges three batteries in sequence.
Compatibility:
- DJI Mavic 4 Pro
- DJI Mavic 4 Pro Fly More Combo (RC 2)
- DJI Mavic 4 Pro Creator Combo (RC Pro 2)
Notes:
1. Accessory included with the Creator Combo. Not included with the standalone version or the Fly More Combo.
2. Charging time is measured in a test environment with a temperature of 25° C. Actual charging time may increase due to higher ambient temperatures or variations in mains voltage between regions.
3. Do not connect the charger, connect external devices, or insert/remove any batteries during power accumulation.
