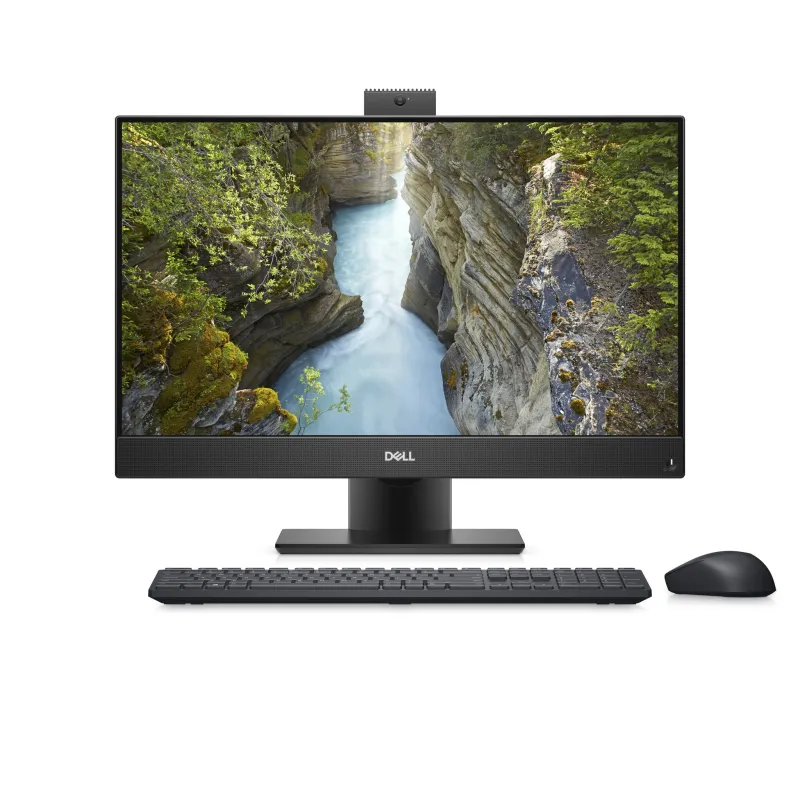

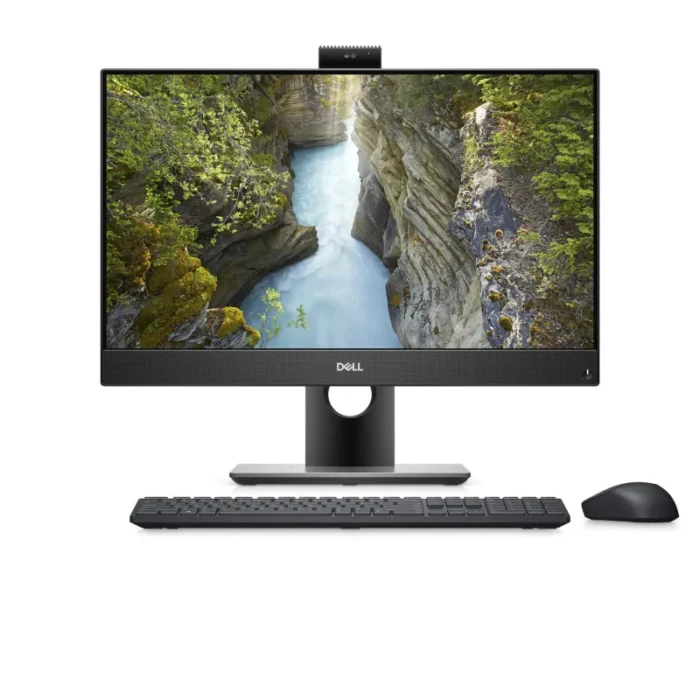

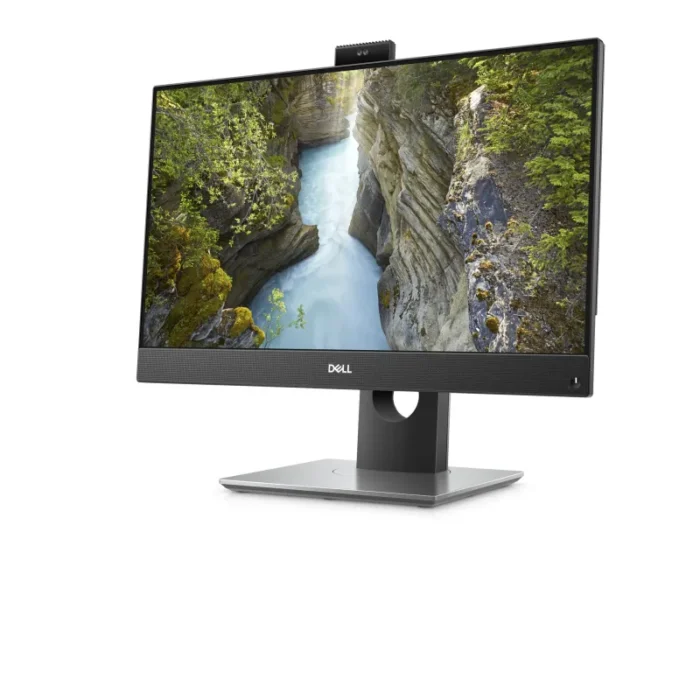

DELL OptiPlex 5490 Intel® Core™ i5 i5-10500T 60.5 cm (23.8″) 1920 x 1080 pixels All-in-One PC 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Wi-Fi 6 (802.11ax) Black
- Windows 10 Pro 64-bit
- Intel Core i5-10500T (12MB Cache, 2.3GHz)
- 60.5 cm (23.8″) Full HD 1920 x 1080 WVA
- 8GB DDR4-SDRAM (1 x 8) & 256GB SSD
Power and productivity
An intelligent, sustainably built 23.8″ all-in-one that delivers enhanced security and productivity in a space-saving design. With 10th and 11th Gen Intel® processors.
| Display |
| Colour gamut |
72% |
| Pixel pitch |
0.2745 x 0.2745 mm |
| Pixel density |
92 ppi |
| RGB colour space |
NTSC |
| Anti-glare screen |
Yes |
| Panel type |
WVA |
| Display brightness |
250 cd/m² |
| Native aspect ratio |
16:9 |
| HD type |
Full HD |
| Touchscreen |
No |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
60.5 cm (23.8″) |
| Processor |
| Configurable TDP-down |
25 W |
| Configurable TDP-down frequency |
1.7 GHz |
| Processor cache |
12 MB |
| Processor frequency |
2.3 GHz |
| Processor boost frequency |
3.8 GHz |
| Processor cores |
6 |
| Processor model |
i5-10500T |
| Processor generation |
10th gen Intel® Core™ i5 |
| Processor family |
Intel® Core™ i5 |
| Processor manufacturer |
Intel |
| Memory |
| Memory form factor |
DIMM/SO-DIMM |
| Memory layout (slots x size) |
1 x 8 GB |
| Memory clock speed |
2933 MHz |
| Memory slots type |
SO-DIMM |
| Memory slots |
2 |
| Maximum internal memory |
64 GB |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
8 GB |
| Storage |
| Compatible memory cards |
SD, SDHC, SDXC |
| Card reader integrated |
Yes |
| Optical drive type |
No |
| SSD performance class |
35 |
| SSD form factor |
M.2 |
| SSD interface |
NVMe, PCI Express |
| NVMe |
Yes |
| SSD capacity |
256 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
256 GB |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Total storage capacity |
256 GB |
| Graphics |
| Maximum on-board graphics card resolution |
4096 x 2304 pixels |
| On-board graphics card model |
Intel® UHD Graphics 630 |
| On-board graphics card |
Yes |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| Audio |
| Audio chip |
Realtek ALC3246 |
| Built-in microphone |
Yes |
| RMS rated power |
2 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Camera |
| Built-in camera |
Yes |
| Network |
| Bluetooth version |
5.1 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Antenna type |
2×2 |
| WLAN controller model |
Intel Wi-Fi 6 AX201 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN controller manufacturer |
Intel |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| Headphone outputs |
1 |
| DisplayPorts quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 2.0 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| Design |
| On/off button |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Product colour |
Black |
| Performance |
| Trusted Platform Module (TPM) |
Yes |
| Product type |
All-in-One PC |
| Software |
| Pre-installed software |
Microsoft Office License Included 30 day |
| Operating system language |
Multilingual |
| Windows 11 free upgrade |
Yes |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Pro |
| Processor special features |
| Intel Trusted Execution Technology |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel Stable Image Platform Program (SIPP) |
Yes |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Idle States |
Yes |
| Embedded options available |
No |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel Clear Video Technology |
Yes |
| Intel 64 |
Yes |
| Execute Disable Bit |
Yes |
| CPU configuration (max) |
1 |
| Power |
| AC adapter output voltage |
19.5 V |
| AC adapter input voltage |
90 – 264 V |
| AC adapter frequency |
47/63 Hz |
| General |
| Product family |
OptiPlex |
| Product series |
5000 |
| Weight & dimensions |
| Weight (without stand) |
5.02 kg |
| Height (without stand) |
344 mm |
| Depth (without stand) |
52.6 mm |
| Width (without stand) |
540.2 mm |
| Width (with stand) |
540.2 mm |
| Operational conditions |
| Non-operating altitude |
0 – 10668 m |
| Operating altitude |
0 – 3048 m |
| Storage relative humidity (H-H) |
5 – 95% |
| Operating relative humidity (H-H) |
20 – 80% |
| Storage temperature (T-T) |
-40 – 65 °C |
| Operating temperature (T-T) |
10 – 35 °C |
| Packaging content |
| Cables included |
AC |
| Input device model |
KM5221W |
| Keyboard included |
Yes |
| Keyboard connectivity |
Wireless |
| Keyboard included on selected markets only |
Yes |
| Mouse included on selected markets only |
Yes |
| Mouse connectivity |
Wireless |
| Logistics data |
| Harmonized System (HS) code |
84713000 |
| Other features |
| Stand type |
Height adjustable stand |
