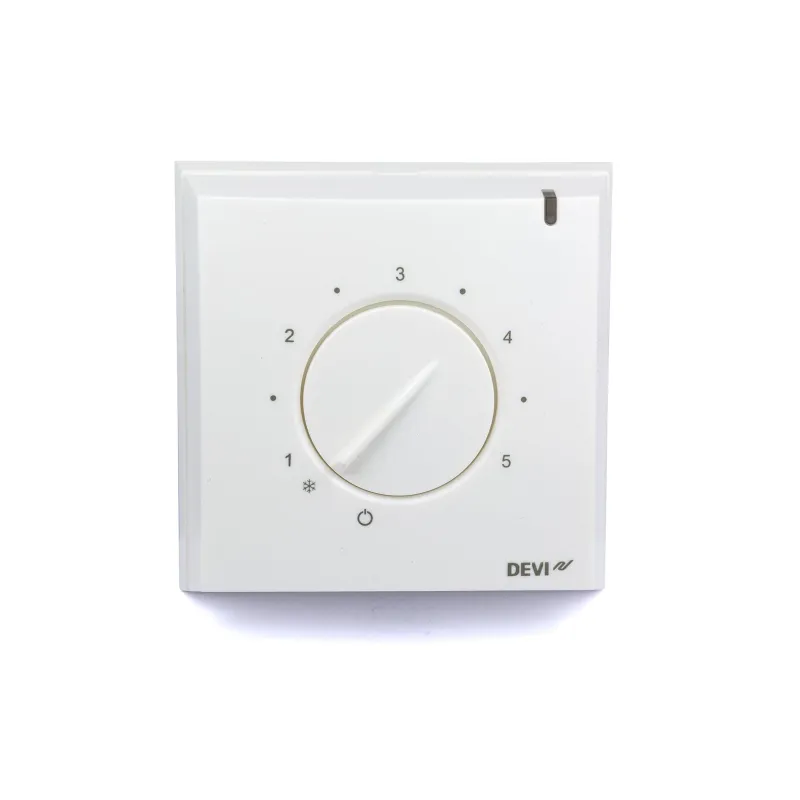

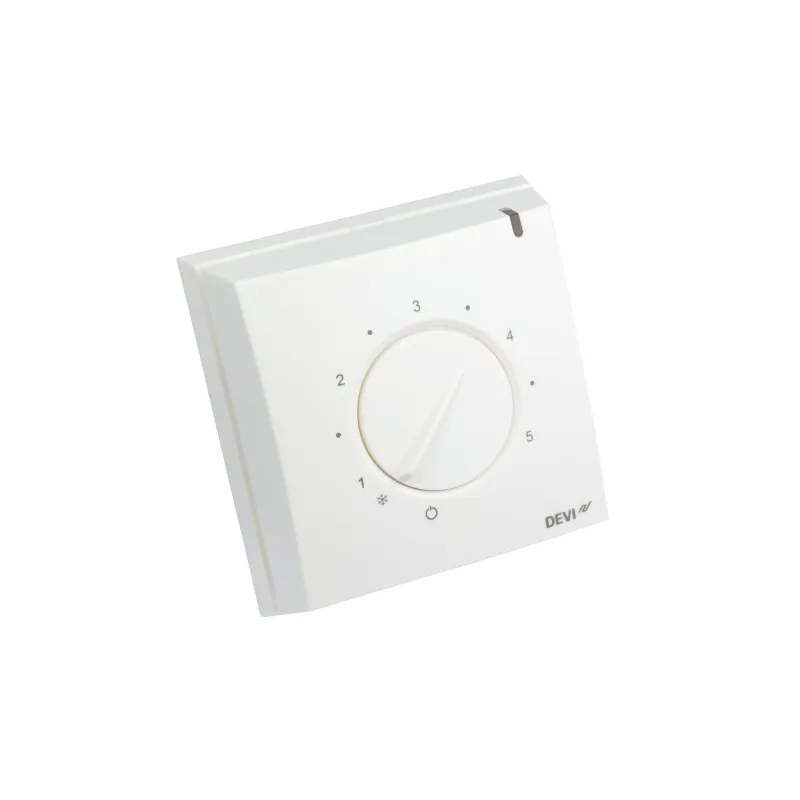

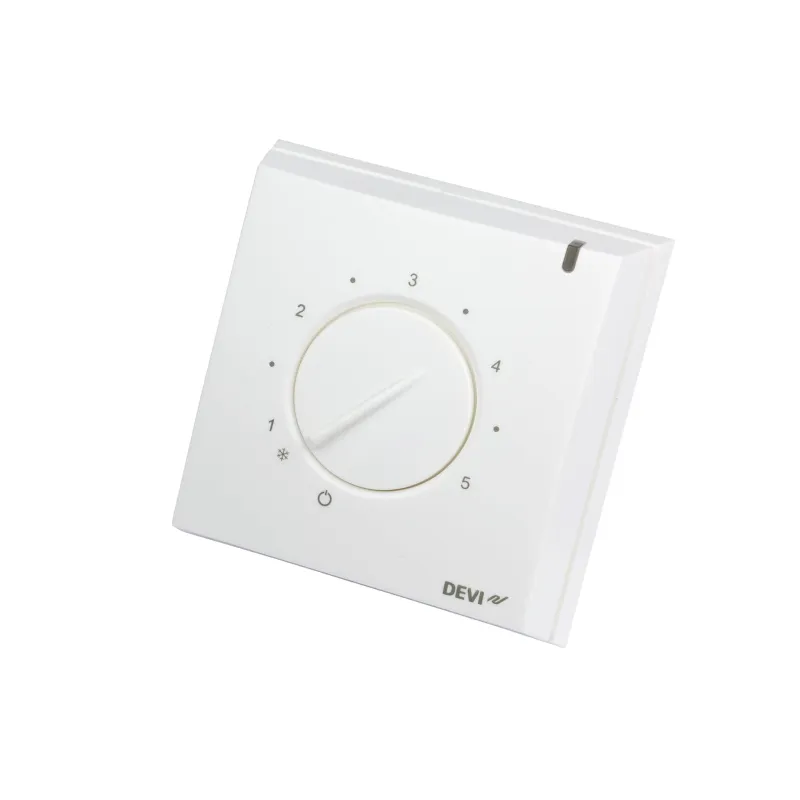

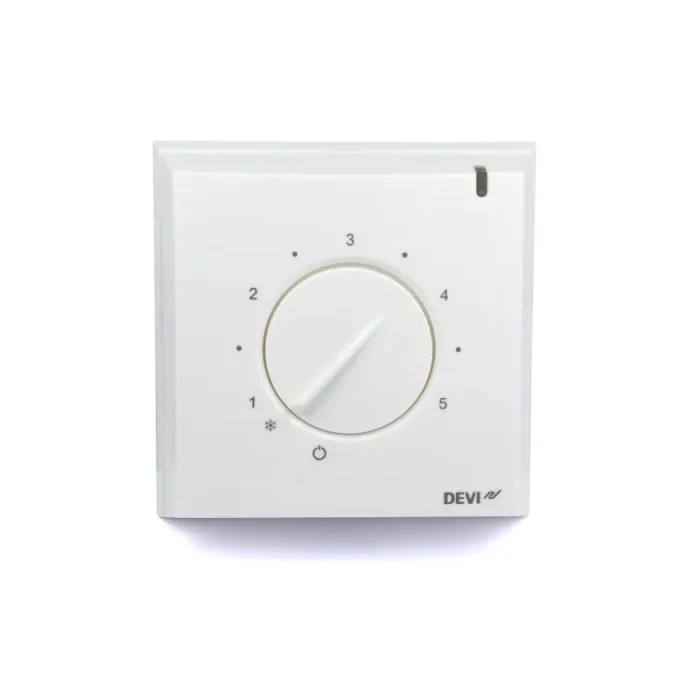

Danfoss DEVIreg™ 130 Thermostat
DEVIreg™ 130 is a line of simple electronic 16 Amps thermostats with the possibility to be installed directly on the wall. The thermostats have only one button for adjusting the temperature and for OFF mode. Furthermore, it has an LED indicator showing standby (green light) and heating (red light) periods. The thermostats do not have wire sensor failure monitoring. Wire temperature sensor included in the set.
DEVIreg™ 130 is equipped with a wire (floor) sensor used for control of Comfort Floor Heating applications. The thermostat has a dial for adjusting the temperature setting with a numeric scale from, to 5 (meaning from OFF, 5 °C to 45 °C, and each step corresponds to approx. 9 °C). This type of thermostat can be used for outdoor applications too – Ice and Snow Melting on the Ground, Frost Protection on Roofs, Pipe Tracing, etc., because it doesn’t have wire sensor failure monitoring.
Benefits:
- Low standby consumption
- Installation on the wall
- LED indication
- Frost protection
- Ice and snow melting applications.
Standard compliance:
- EN/IEC 60730-1 (general)
- EN/IEC 60730-2-9 (thermostat)
|
Operation voltage |
220 – 240 V, 50/60 Hz |
|
Standby power consumption |
Max. 5 W |
|
Resistive load |
Max 16 A (3680 W) @ 230 V |
|
Inductive load |
Max. 1 A, cos φ = 0,3 |
|
Hysteresis |
± 0,2°C |
|
Ambient temperature |
-10 °C to +30 °C |
|
Frost protection |
5 °C – |
|
Cable specification max |
1 x 4 mm2 or 2 x 2,5 mm2 |
|
Ball pressure test temperature |
75°C |
|
Pollution degree |
2 (domestic use) |
|
Controller type |
1 C |
|
Storage temperature |
-20 °C to +65 °C |
|
IP class |
IP 30 |
|
Protection class |
Class II – |
|
Dimensions (H/W/D) |
82 x 82 x 36 mm |
|
Weight |
90 g |
