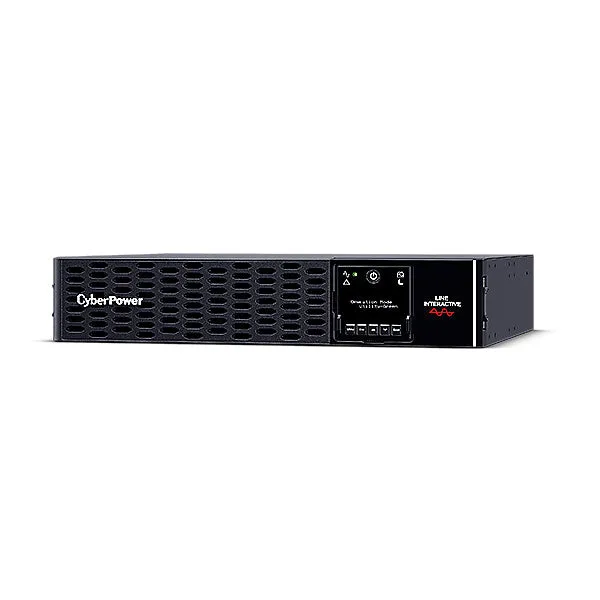

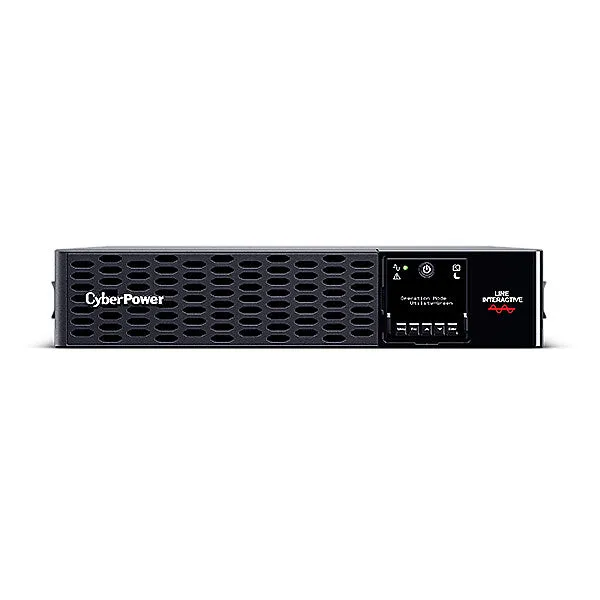

CyberPower PR3000ERT2U uninterruptible power supply (UPS) Line-Interactive 3 kVA 3000 W 8 AC outlet(s)
- Line-interactive UPS Topology
- Energy Saving Technology
- Active PFC Compatible
- Pure Sine Wave Output
- Night Mode Design
- Tool-less Battery Replacement
- Battery Management Technology
- High Output Power Factor
- Automatic Voltage Regulation (AVR)
- Overload Protection

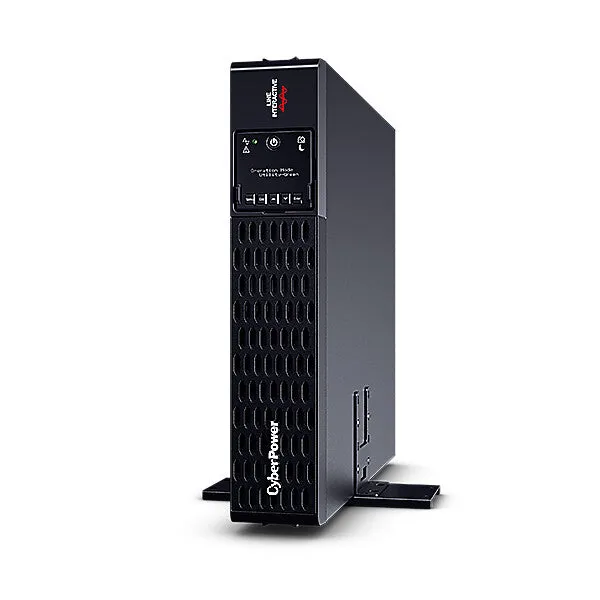

CyberPower PR3000ERT2U Line-Interactive UPS, with seamless Pure Sine Wave, provides the best power protection available for office system devices including PCs, workstations, networking devices, and peripherals. It’s typically integrated in the back office, server room, and data center environment. The rackmount / tower convertible design gives it enhanced flexibility for installation and operation in almost any environment.
Multiple UPS systems can be connected to a single main Emergency Power Off (EPO) switch. In the event of an emergency, the UPS systems can be shut down immediately with the EPO button. As for battery maintenance, the UPS allows battery hot-swapping, which enables users to perform normal battery maintenance without significant interruption.
| Features | |
|---|---|
| Audible alarm modes | Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| Management protocols | SNMP/HTTP |
| Audible alarm(s) | Yes |
| Power protection features | Overload |
| Surge protection features | Network |
| Surge protection | Yes |
| Noise level | 57.5 dB |
| EMI/RFI noise filtering | Yes |
| Emergency Power Off (EPO) | Yes |
| Power Factor Correction (PFC) type | Active |
| Power factor | 1 |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Heat dissipation | 120.8 BTU/h |
| Response time | 4 ms |
| Surge energy rating | 2430 J |
| Maximum current | 10 A |
| Automatic Voltage Regulation (AVR) | Yes |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 288 V |
| Input operation voltage (min) | 159 V |
| Waveform | Pure sine |
| Output power | 3000 W |
| Output power capacity | 3 kVA |
| UPS topology | Line-Interactive |
| Ports & interfaces | |
|---|---|
| Emergency Power Off (EPO) connector | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| RS-232 ports | 1 |
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| Serial interface | Yes |
| USB port | Yes |
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler, C19 coupler |
| Battery | |
|---|---|
| Hot-swap battery | Yes |
| Battery recharge time | 3 h |
| Typical backup time at half load | 6.4 min |
| Typical backup time at full load | 1.3 min |
| Number of batteries supported | 1 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
|---|---|
| LED indicators | Fault, Power, Status |
| Display type | LCD |
| Control type | Buttons |
| Built-in fan | Yes |
| Cooling type | Active |
| Cable length | 2.4 m |
| Rack capacity | 2U |
| Housing material | Metal |
| Product colour | Black |
| Form factor | Rackmount/Tower |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 – 15000 m |
| Operating altitude | 0 – 3000 m |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage temperature (T-T) | -15 – 45 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR |
| Packaging content | |
|---|---|
| Manual | Yes |
| Cables included | Serial, USB cable |
| Rack mount kit | Yes |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 32.3 kg |
| Height | 86.5 mm |
| Depth | 500 mm |
| Width | 433 mm |
| Packaging data | |
|---|---|
| Package weight | 40.3 kg |
| Package height | 275 mm |
| Package depth | 620 mm |
| Package width | 560 mm |
| Logistics data | |
|---|---|
| Country of origin | China |
| Warranty period | 3 year(s) |
| Harmonized System (HS) code | 8504408590 |
| Other features | |
|---|---|
| Battery type | RBP0129 |
