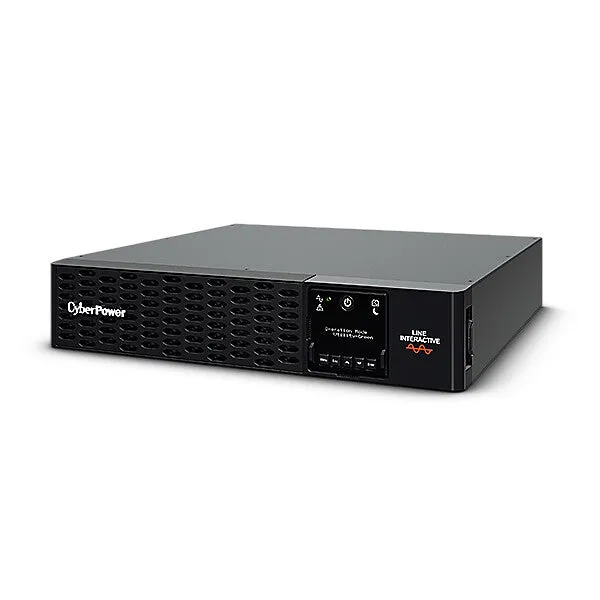

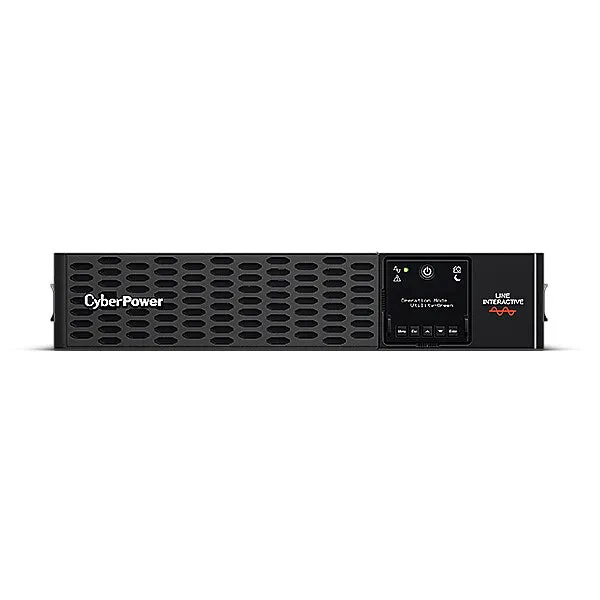

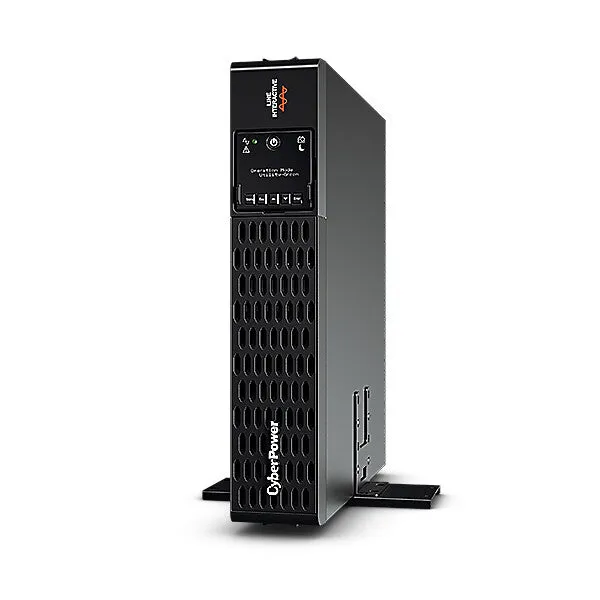

CyberPower PR2200ERT2U uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 2200 W 8 AC outlet(s)
- Reliable Power Quality
- Electricity Cost Savings
- Device Protection Design
- Automatic Voltage Regulation (AVR)
- Real-time LCD Readout
CyberPower PR2200ERT2U with rackmount design guarantees power backup protection for home theater systems, multimedia devices, IT equipment, computers, workstations, NAS/Storage devices, telecom devices, networking devices, and surveillance systems. The UPS adopts line-interactive topology with Automatic Voltage Regulation (AVR) function, and offers stabilized Pure Sine Wave output to ensure high power quality.
The UPS’s output power factor is 1, which means it is capable of connecting to more critical loads than conventional UPS. It also features Battery Management Technology to help batteries obtain optimal life span by balancing battery string voltage. Two-phase battery charging can charge the battery quickly and safely. The hot-swappable battery packs allow for easy maintenance without power interruption. Its multi-functional matrix LCD supports intuitive operation and quick configuration. The LCD panel is also rotatable to meet installation requirements.
| Features |
| Socket circuit breaker |
Yes |
| Audible alarm modes |
Alarm when on battery, Low battery alarm |
| Audible alarm(s) |
Yes |
| Web-based management |
Yes |
| Power protection features |
Overload, Short circuit |
| Noise level |
52.5 dB |
| EMI/RFI noise filtering |
Yes |
| Power Factor Correction (PFC) type |
Active |
| Power factor |
1 |
| Number of input phases |
1 |
| Transfer time (Line Mode to Battery Mode) |
4 ms |
| Surge energy rating |
2430 J |
| Automatic Voltage Regulation (AVR) |
Yes |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
220 V |
| Input frequency |
50/60 Hz |
| Input operation voltage (max) |
288 V |
| Input operation voltage (min) |
159 V |
| Waveform |
Pure sine |
| Output power |
2200 W |
| Output power capacity |
2.2 kVA |
| UPS topology |
Line-Interactive |
| Ports & interfaces |
| Emergency Power Off (EPO) connector |
Yes |
| Ethernet LAN (RJ-45) ports |
2 |
| Serial interface type |
RS-232 |
| Serial interface |
Yes |
| USB port |
Yes |
| AC outlets quantity |
8 AC outlet(s) |
| Power plug |
C20 coupler |
| AC outlet types |
C13 coupler, C19 coupler |
| Battery |
| Hot-swap battery |
Yes |
| Battery recharge time |
3 h |
| Typical backup time at half load |
11.4 min |
| Typical backup time at full load |
3 min |
| Number of batteries supported |
1 |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| LED indicators |
Yes |
| Display type |
LCD |
| Cable length |
2.4 m |
| Rack capacity |
2U |
| Housing material |
Metal |
| Product colour |
Black |
| Form factor |
Rackmount/Tower |
| Operational conditions |
| Non-operating altitude |
0 – 15000 m |
| Operating altitude |
0 – 3000 m |
| Storage relative humidity (H-H) |
0 – 95% |
| Operating relative humidity (H-H) |
0 – 95% |
| Storage temperature (T-T) |
-15 – 45 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Certificates |
| Certification |
CE , FCC Class B , UL , RCM , VCCI |
| Compliance certificates |
RoHS |
| Weight & dimensions |
| Weight |
25.7 kg |
| Height |
86.5 mm |
| Depth |
412 mm |
| Width |
433 mm |
| Packaging data |
| Package weight |
33.5 kg |
| Package height |
275 mm |
| Package depth |
530 mm |
| Package width |
560 mm |
| Other features |
| Bypass |
GreenPower UPS |
