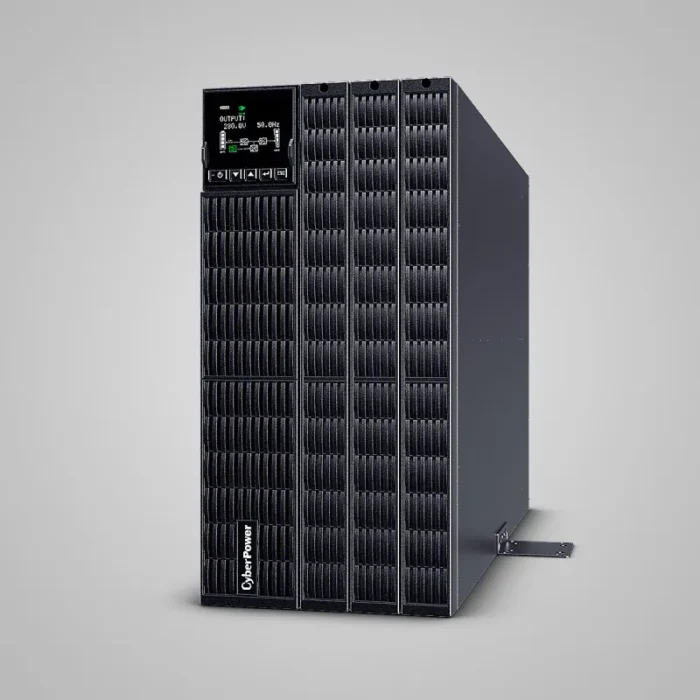

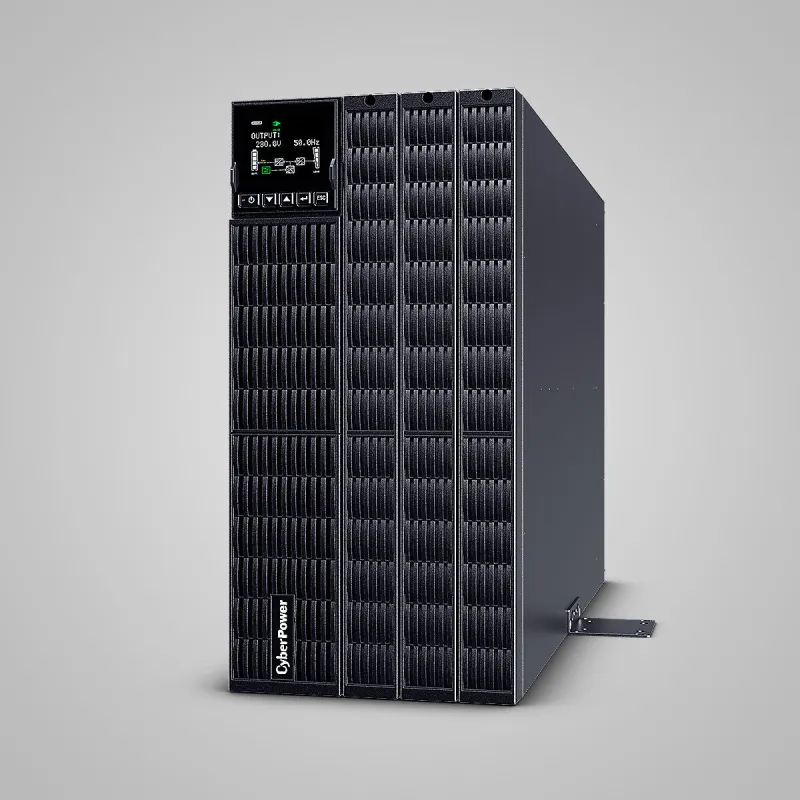

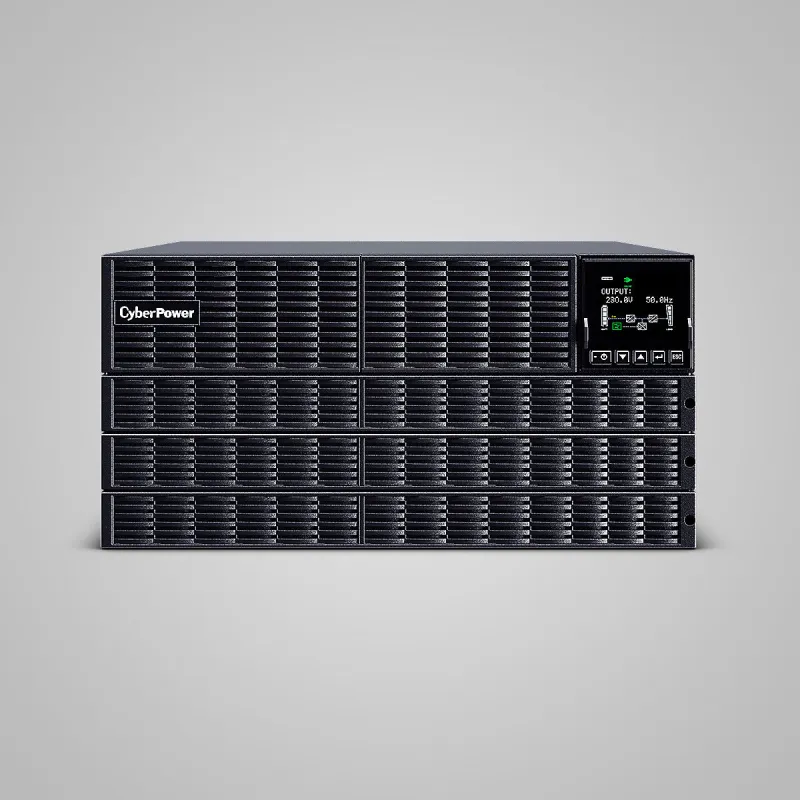

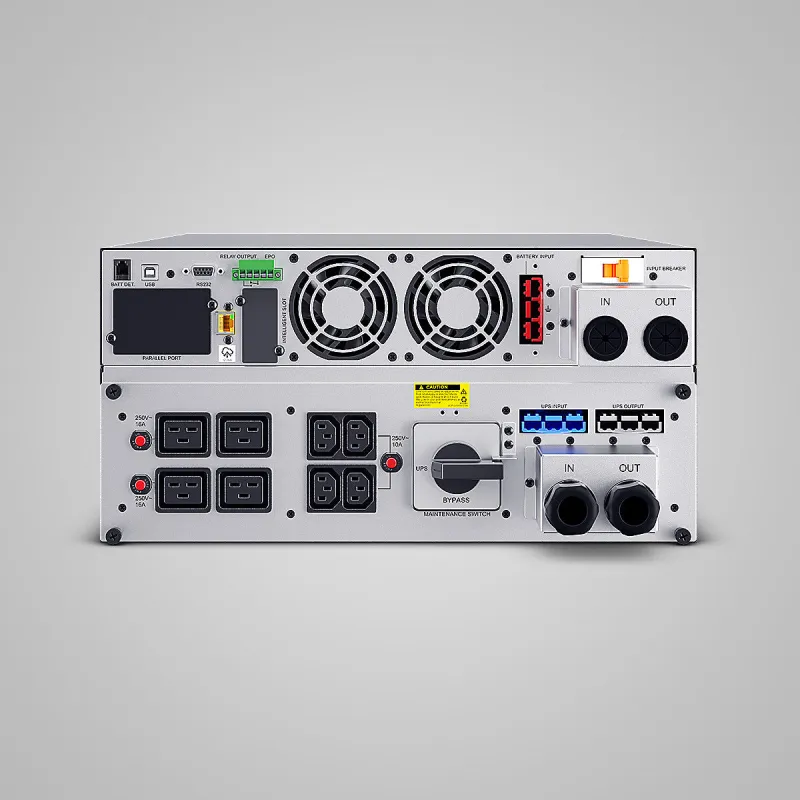

CyberPower OLS10KERT5U uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 10000 W 9 AC outlet(s)
- Online (Double Conversion) UPS Topology
- High Output Power Factor
- Overload Protection
- Maintenance Bypass Switch
- Extended Battery Module Auto-detection
- User-replaceable Batteries
- Tiltable LCD Panel
- Relay-type Dry Contact
- SNMP/HTTP Remote Management Capability (Optional)
- Rack/Tower Convertible Configurations
- ECO Mode
- Pure Sine Wave Output
- Zero Transfer Time
- Extended Battery Module (EBM)
- Adjustable Charging Current
- Color LCD Panel
- Emergency Power Off (EPO) Port
- PowerPanel Management Software
- Built-in Remote Cloud Card by Ethernet
CyberPower OLS10KERT5U is a high-efficiency UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS, servers, DVRs/surveillance systems, transportation, infrastructure, and emergency systems. It’s typically integrated into the back office, server room, and data center environment.
With high output power factor, the UPS in a smaller footprint can provide more usable power and save rack space. The product allows multiple UPS units to be connected in parallel, achieving higher capacity and power redundancy. The pre-installed Maintenance Bypass PDU (MBP) offers quick and safe maintenance without power interruption. Moreover, the UPS is equipped with Remote Cloud Card to support remote monitoring via a web portal and the mobile app. The tiltable color LCD comes with an intuitive and graphical interface, allowing users to monitor and configure settings with ease. Besides, the battery charging current is adjustable via LCD setting to shorten charging time. It is also designed with relay-type dry contact port to support specific UPS event notifications for easy management.
| Features |
| Audible alarm modes |
Battery replacement, Fault, Overload alarm |
| Audible alarm(s) |
Yes |
| Carrying handle(s) |
No |
| Power protection features |
Overload |
| Noise level |
62 dB |
| EMI/RFI noise filtering |
Yes |
| Input current Total Harmonic Distortion (THD) |
1.5% |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Emergency Power Off (EPO) |
Yes |
| ECO mode |
Yes |
| Crest factor |
3:1 |
| Output power factor |
1 |
| Input power factor |
0.99 |
| Efficiency (ECO mode) |
98% |
| Heat dissipation |
2047 BTU/h |
| Surge energy rating |
1335 J |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
200 V |
| Input frequency |
50/60 Hz |
| Input operation voltage (max) |
300 V |
| Input operation voltage (min) |
110 V |
| Waveform |
Pure sine |
| Output power |
10000 W |
| Output power capacity |
10 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| RS-232 ports |
1 |
| USB port |
Yes |
| AC outlets quantity |
9 AC outlet(s) |
| Power plug |
C13 coupler |
| AC outlet types |
C13 coupler, C19 coupler, Terminal |
| Battery |
| Hot-swap battery |
Yes |
| Charging current |
4 A |
| Battery recharge time |
4 h |
| Typical backup time at half load |
11.2 min |
| Typical backup time at full load |
2.9 min |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| Compatibility |
BPS240V9ART3U |
| Display type |
LCD |
| Built-in fan |
Yes |
| Rack capacity |
5U |
| Housing material |
Metal |
| Product colour |
Black |
| Form factor |
Tower |
| Operational conditions |
| Non-operating altitude |
0 – 1500 m |
| Operating altitude |
0 – 1500 m |
| Storage relative humidity (H-H) |
0 – 95% |
| Operating relative humidity (H-H) |
0 – 95% |
| Storage temperature (T-T) |
-15 – 45 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Sustainability |
| Sustainability compliance |
Yes |
| Packaging content |
| Manual |
Yes |
| Cables included |
USB cable |
| Certificates |
| Compliance certificates |
CE, RoHS |
| Weight & dimensions |
| Weight |
80 kg |
| Height |
213.5 mm |
| Depth |
661 mm |
| Width |
433 mm |
| Packaging data |
| Package type |
Box |
| Package weight |
99 kg |
| Package height |
489 mm |
| Package depth |
890 mm |
| Package width |
575 mm |
