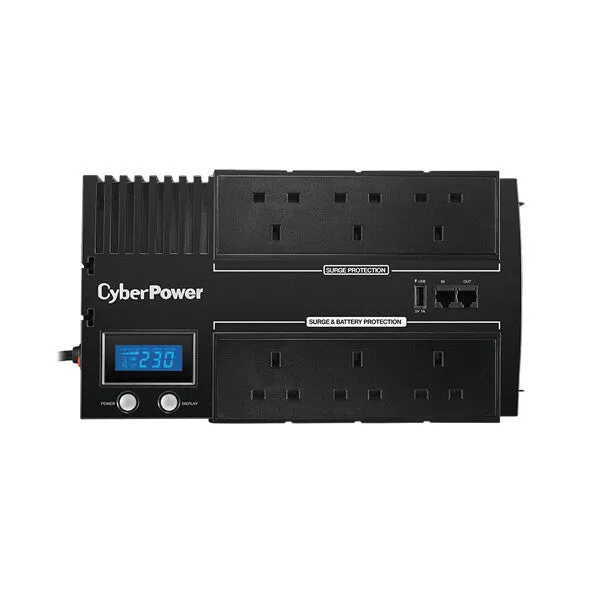

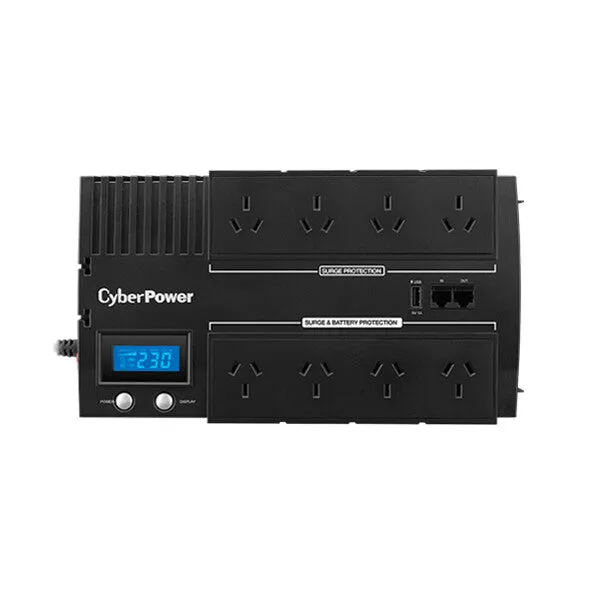

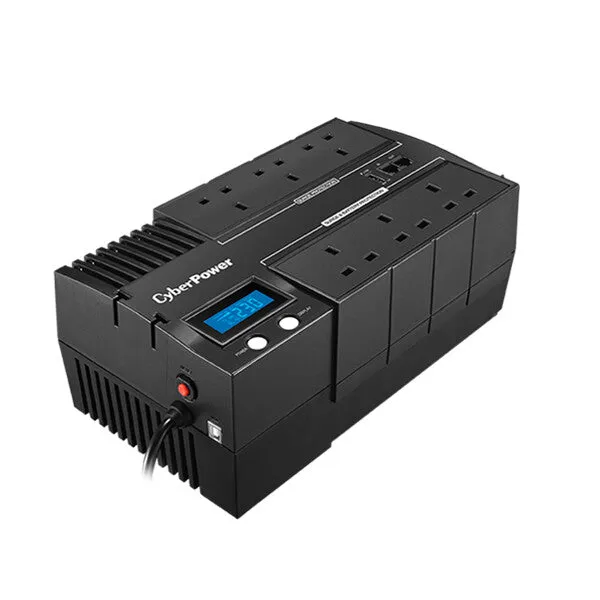

CyberPower BR700ELCD uninterruptible power supply (UPS) Line-Interactive 0.7 kVA 420 W 6 AC outlet(s)
- Line-interactive UPS Topology
- Energy Saving Technology
- Simulated Sine Wave Output
- Automatic Voltage Regulation (AVR)
- USB Charging Port
- Surge and Spike Protection
- Phone/ Fax/ Modem/ DSL/ Network Protection
- LCD Status Display
- Brick Form Factor
CyberPower BR700ELCD offers home and office users a reliable battery backup and safeguards office PCs, network communication equipment, and other electronic devices from surges, spikes, brownouts and other power incidents. Designed with GreenPower UPS™ Technology to improve operating efficiency and to minimize energy consumption, users can enjoy significant energy cost savings over conventional UPS systems.
The UPS provides Automatic Voltage Regulation (AVR) to maintain a safe voltage for connected equipment. The featured data line protection protects phones, networks, and other communication equipment against surge/spikes and other power irregularities. Users can access precise information of critical power/battery conditions by switching to the LCD status monitor.
| Features |
| Audible alarm modes |
Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| Audible alarm(s) |
Yes |
| Power protection features |
Overload |
| Surge protection features |
Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone |
| Surge protection |
Yes |
| EMI/RFI noise filtering |
Yes |
| Response time |
4 ms |
| Surge energy rating |
125 J |
| Automatic Voltage Regulation (AVR) |
Yes |
| Output frequency |
50/60 Hz |
| Input frequency |
50/60 Hz |
| Input operation voltage (max) |
290 V |
| Input operation voltage (min) |
165 V |
| Waveform |
Sine |
| Output power |
420 W |
| Output power capacity |
0.7 kVA |
| UPS topology |
Line-Interactive |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
2 |
| Modem (RJ-11) ports |
2 |
| Serial interface |
No |
| USB 2.0 ports quantity |
1 |
| USB port |
Yes |
| AC outlets quantity |
6 AC outlet(s) |
| Battery |
| Cold start |
Yes |
| Battery recharge time |
8 h |
| Typical backup time at half load |
6 min |
| Typical backup time at full load |
2 min |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| LED indicators |
Yes |
| Display type |
LCD |
| Housing material |
Plastic |
| Product colour |
Black |
| Form factor |
Compact |
| Operational conditions |
| Operating altitude |
0 – 3000 m |
| Storage relative humidity (H-H) |
0 – 90% |
| Operating relative humidity (H-H) |
0 – 90% |
| Storage temperature (T-T) |
-20 – 50 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Certificates |
| Certification |
CERoHS |
| Weight & dimensions |
| Weight |
5.3 kg |
| Height |
118 mm |
| Depth |
288 mm |
| Width |
166 mm |
| Packaging data |
| Bundled software |
PowerPanel® Personal Edition |
| Other features |
| Nominal output voltage |
230 V |
