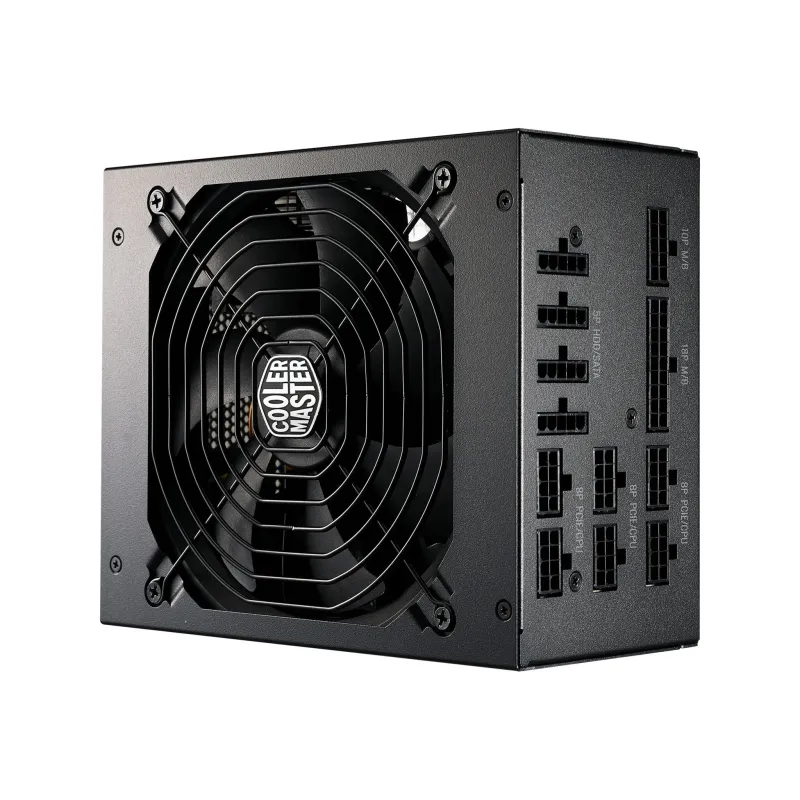

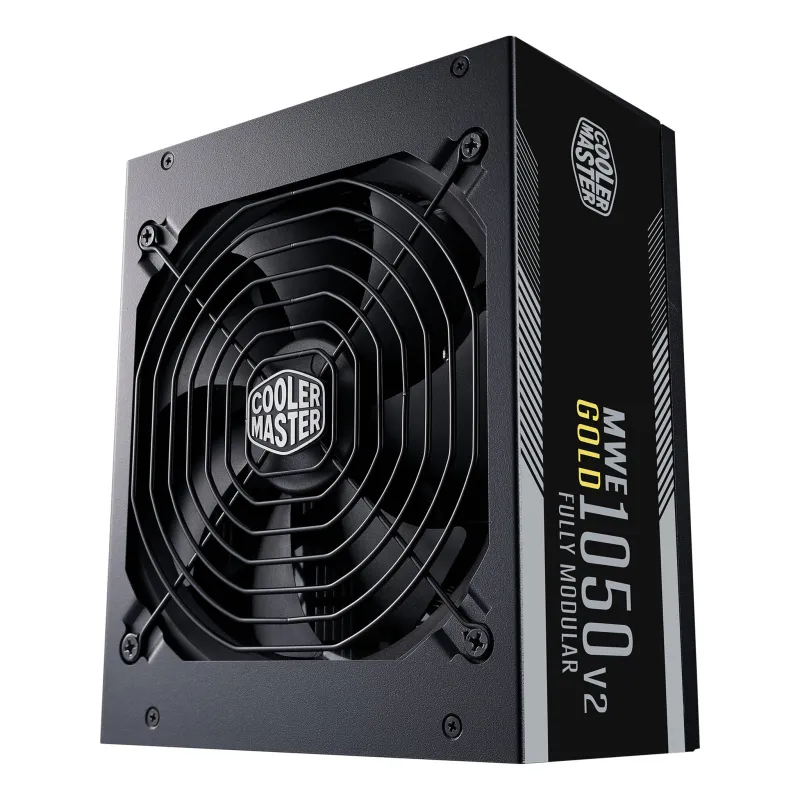

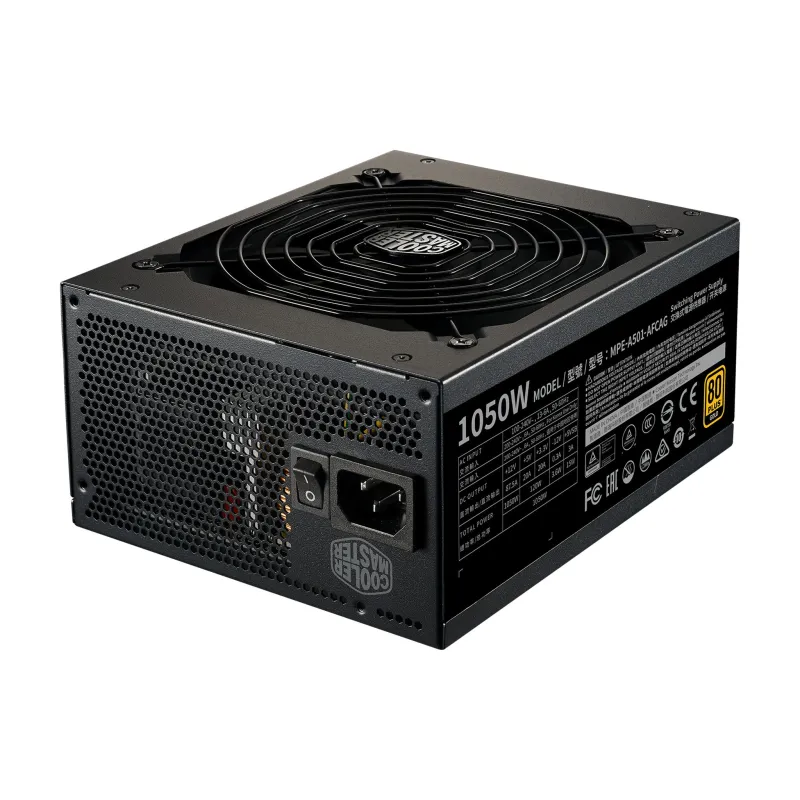

Cooler Master MWE Gold 1050 – V2 Full Modular power supply unit 1050 W 24-pin ATX ATX Black
- 80 PLUS Gold Efficiency
- RTX Ready
- 140mm Silent Fan
- High Temperature Resilience
- Full Modular Cabling
Full Modular 80 Plus Gold PSU
Power Up
The new MWE Gold V2 1050, 1250 series is the next step in the evolution of Cooler Master’s entry level 80 Plus Gold Power Supply line which improves upon the original version in the places where users will see the most immediate benefit in terms of performance and stability for high end pc requirements.
80 PLUS Gold Certified
The MWE Gold V2 1050, 1250 series delivers an 80 Plus Gold certification, guaranteeing a typical minimum efficiency of 90%.
RTX Ready
The MWE 1050 Gold – V2 comes standard with 2 EPS connectors, 6 PCI-e connectors, and a high maximum wattage in order to ensure universal compatibility with all current gen motherboards and RTX 30 series graphics cards. You can build the high end system of your dreams and run all the latest games without having to break the bank on your PSU. This unit has all the necessary features to power the newest components for a great price.
Silence Fan with Smart Temp. Controlling Feature
MWE Gold 1050 & 1250 are equipped with a 140mm silence fan with smart temperature controlling feature. The fan supports 0 RPM to achieve 0 noise based on the scenario.
| Power |
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Hold time |
20 ms |
| Efficiency |
90% |
| Power Good signal delay range |
100 – 150 ms |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
20 A |
| Max output current (+12V) |
87.5 A |
| Max output current (+3.3V) |
20 A |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5V) |
120 W |
| Combined power (+12V) |
1050 W |
| Combined power (+3.3V) |
120 W |
| Power Factor Correction (PFC) type |
Active |
| Input current |
6 – 13 A |
| AC input frequency |
47 – 63 Hz |
| AC input voltage |
90 – 264 V |
| Total power |
1050 W |
| Ports & interfaces |
| Cabling type |
Fully-Modular |
| PCI Express power cable length |
67 cm |
| PCI Express power connectors (6+2 pin) |
6 |
| EPS power connector (4+4 pin) |
Yes |
| EPS power connector (8-pin) |
Yes |
| Peripheral (Molex) power cable length |
500,620,740,860 mm |
| Peripheral (Molex) power connectors (4-pin) |
4 |
| SATA power cable length |
500,620,740,860 mm |
| Number of SATA power connectors |
12 |
| Motherboard power cable length |
65 cm |
| Motherboard power connector |
24-pin ATX |
| Performance |
| Mean time between failures (MTBF) |
100000 h |
| Bearing technology |
FDB |
| ATX version |
2.52 |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
| Fan speed |
0 – 2200 RPM |
| Number of fans |
1 fan(s) |
| Fan diameter |
14 cm |
| Cooling type |
Active |
| Product colour |
Black |
| Operational conditions |
| Operating temperature (T-T) |
0 – 40 °C |
| Certificates |
| Certification |
ErP 2014 Lot 3, TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB |
| Weight & dimensions |
| Weight |
2.17 kg |
| Height |
86 mm |
| Depth |
180 mm |
| Width |
150 mm |
| Packaging data |
| Package weight |
2.57 kg |
| Package height |
122 mm |
| Package depth |
197 mm |
| Package width |
310 mm |
| Logistics data |
| Master (outer) case height |
235 mm |
| Master (outer) case length |
360 mm |
| Master (outer) case width |
510 mm |
| Master (outer) cases per pallet |
24 pc(s) |
| Other features |
| Noise level (full-load mode, 100%) |
27.3 dB |
| Noise level (quiet mode, 50%) |
14.9 dB |
| Noise level (silent mode, |
0 dB |
| EPS cable length |
65 cm |
