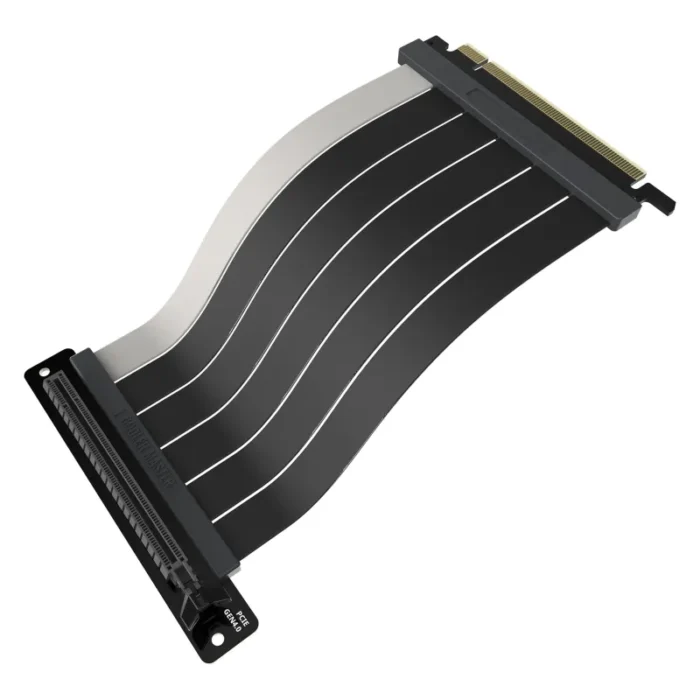

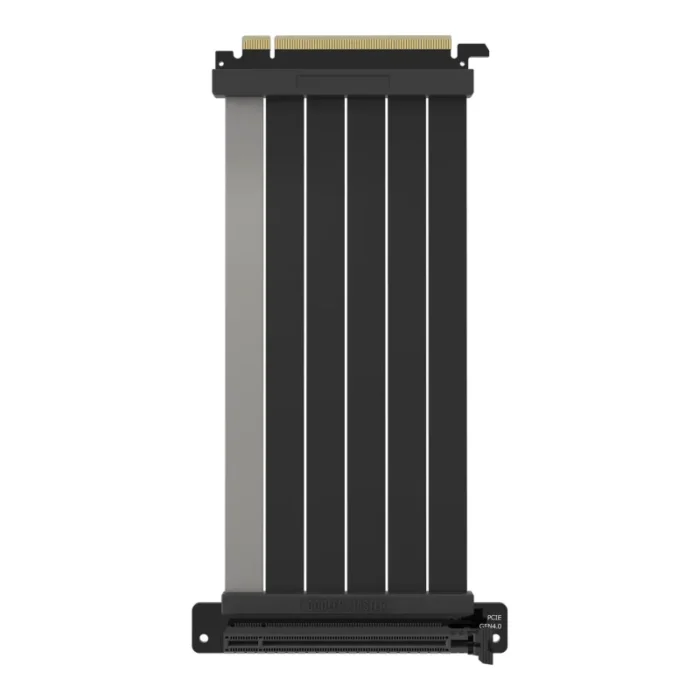

Cooler Master MCA-U002R-KPCI40-300 ribbon cable

• PCIe 4.0 Compatible
• Ultra Durable PCB
• Heavy Duty Shielding
• Gold-Plated Pin Connections
• Protective ABS Casing
• Ultra-Flexible Cable Sleeves

Flex Your Graphics Muscle

Flex Your Graphics Card Muscle
The Cooler Master Riser Cable PCIe 4.0 x16 V2 is designed for greater data transmission efficiency, maximum flexibility and durability. High quality plastics grant increased cable flexibility and strength for the tightest PCI card installations, while the heavy-duty shielding prevents electromagnetic interference from degrading signal quality.

The multi-layer coated PCB provides the best-in-class cable flex, moisture resistance and performance under high thermal loads.

PCIE 4.0 Compatible
While Providing twice the bandwidth of PCIe 3.0, the Gen 4.0 riser cable remains backwards compatible with a maximum transfer rate of over 64Gb/s (bi-directional) and fully supports the 16GT/s bit rate of PCIe 4.0 devices.

Ultra Durable PCB
The multi-layer coated PCB provides best-in-class performance under high thermal loads, cable flex, and moisture resistance.

Heavy Duty Shielding
EMI shielded 30 AWG silver-plated wires ensure minimal signal delay and electromagnetic interference-free operation.

Gold-Plated Pin Connections
Gold-plated PCI pins allow maximum durability with a rated 400g of retention force per contact pair.

New Protective ABS Casing
The UV resistant ABS casing design has been revised and reduced in size to allow for an easier cable installation procedure.

New Ultra-flexible Cable Sleeves
The revised TPE cable sleeves allow for maximum flexibility and durability for the tightest cable routing jobs.
