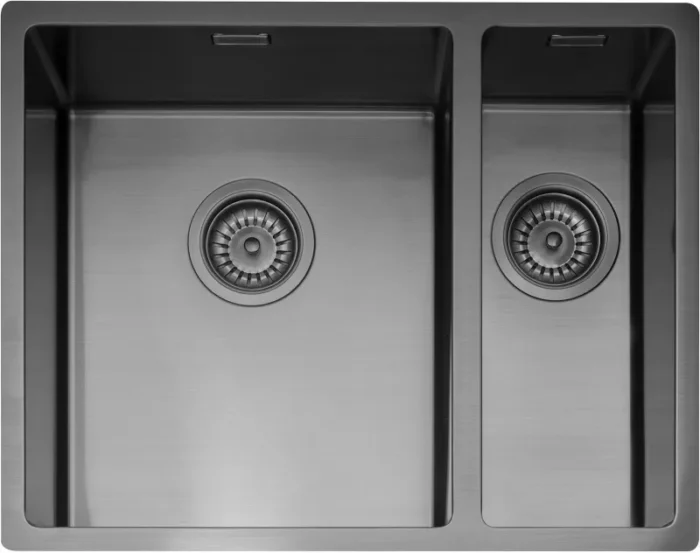

Caple 1.5 Bowl Sink MODE3415-R-GM – Gunmetal
Caple Mode 3415 Right Handed Inset Or Undermounted Sink
Key Specification
- 1.5 Bowl Sink
- Right Handed Small Bowl

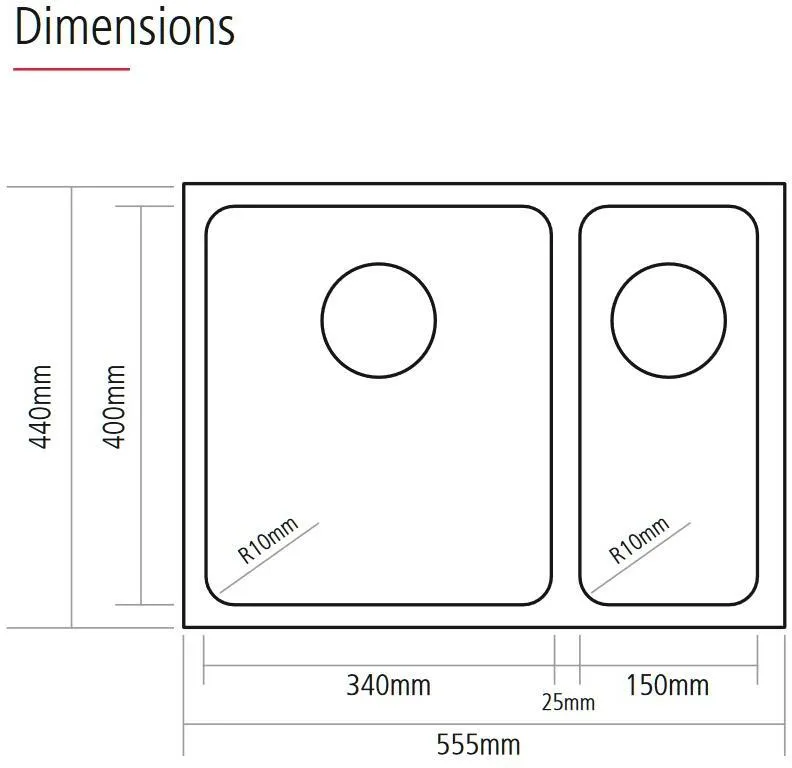

- Bowl Depth (Main) 200mm
- Small Bowl Depth 135mm
- Min. Base Unit 600mm
Design
- Gunmetal Stainless Steel
Features
- 1.2mm Brushed Stainless Steel
- Right Handed Small Bowl
- No Tap Facility
- 2x 90mm Waste Outlets For A Basket Strainer Waste
- Suitable For A Waste Disposer
- Wastes And Overflows Included
Fitting Options
- Inset
- Undermounted
- Cpk200 Plumbing Kit Available At Extra Cost
Please Note

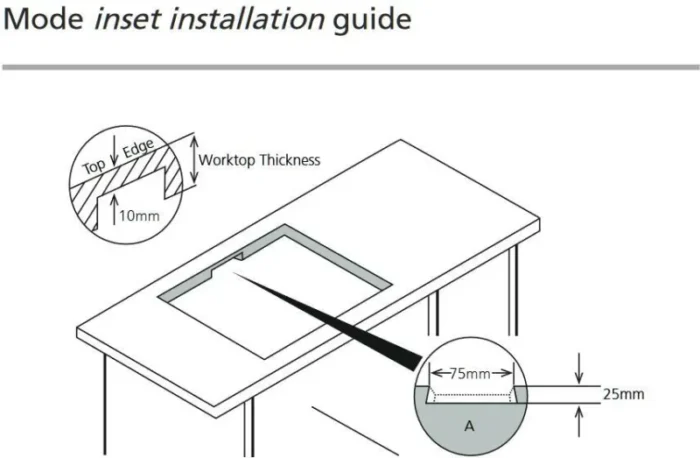

- When Inset Fitting The Mode Sinks, A Recess/Notch Will Need To Be Made In The Underside Of The Worktop To Enable The Overflow To Be Fitted To The Sink. View A Shows Theworktop From The Underside. Check The Required Position Of The Recess/Notch By Offering The Sink (With Overflow Fitted) Into The Cut-Out. Then Mark Your Worktop In The Required Position. (For Guidance The Recess/Notch Should Be Approximately 75mm Wide And 25mm Deep, And 10mm From The Top Edge Of The Worktop. When Cutting The Recess/Notch Ensure There Is Enough Clearance For The Complete Overflow Body.
