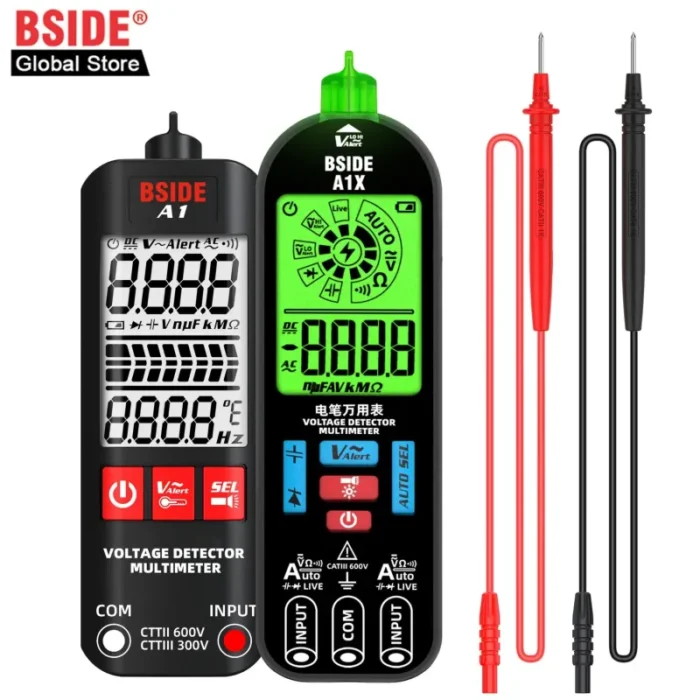

BSIDE A1/A1X Smart Digital Multimeter Electronic USB Tester Breakpoint AC DC Contactless NCV Charged Automatic Diode Capacitor
SPECIFICATIONS
Brand Name: BSIDE
DIY Supplies: ELECTRICAL
Origin: Mainland China
Dimensions: 146*44*26mm
Display Type: Digital Only
Model Number: A1X
V-Alert (Non-contact Voltage Detection):: yes

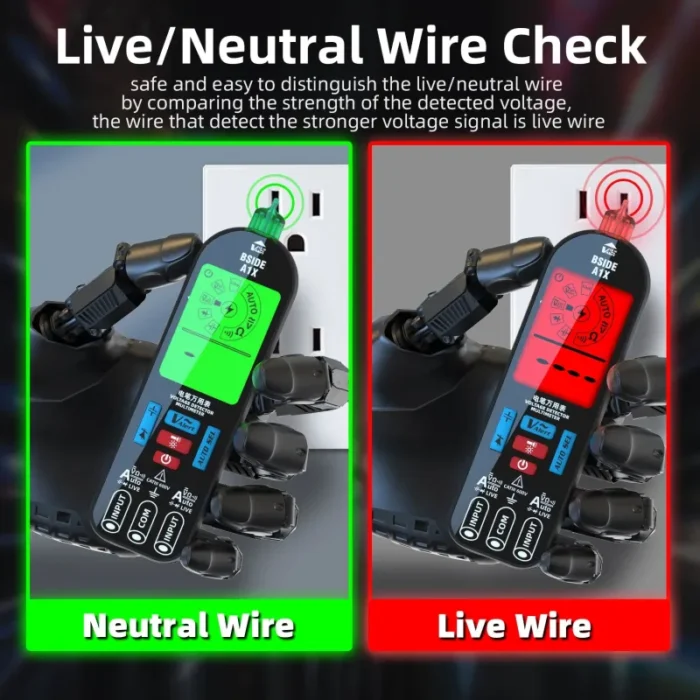

Live Wire Check:: yes
Size:: 146*44*26mm
Weight:: 73g
DC Voltage:: 520V
AC Voltage:: 520V
Power:: 3.7V 400mA lithium battery, USB charging
Display: LCD Screen
Resistance: 19.99MΩ
Capacitance: 1999uF
Diode: yes
Choice: yes
semi_Choice: yes
Newly upgraded smart digital multimeter A1X, portable and convenient, I think you need it
Features:
1. The latest screen id design is more intuitive and has higher color value.
2. Diode with capacitor

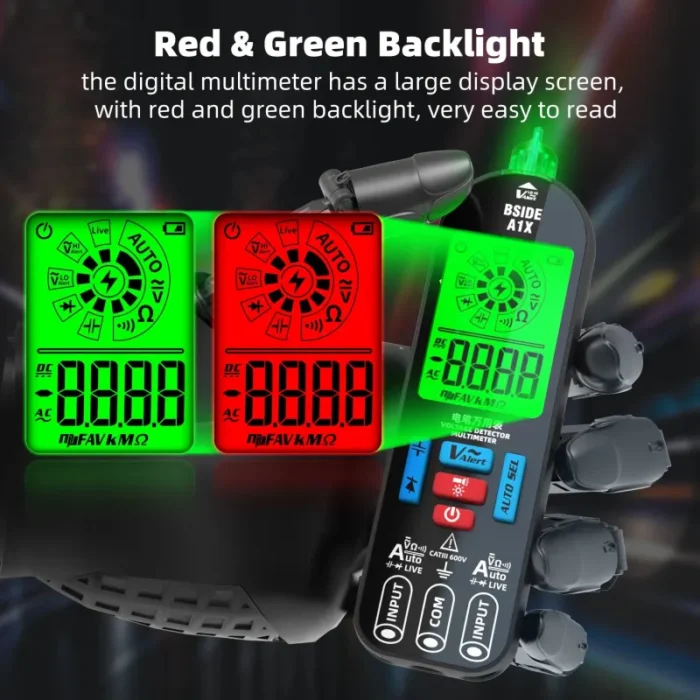

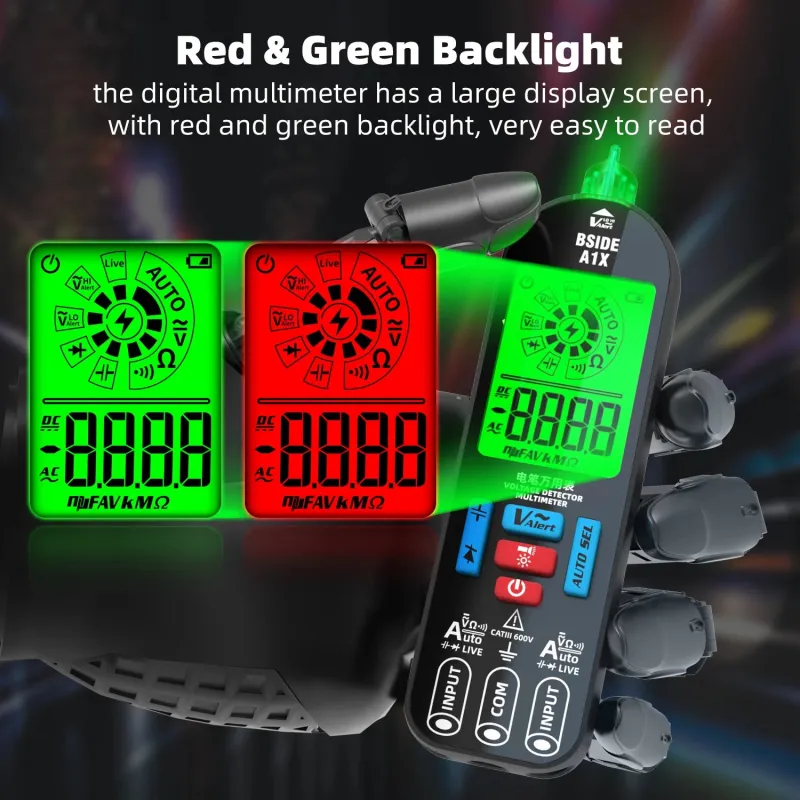

3. Red and green two-color backlight tips
4. Lithium battery straight
5. The main function of a key to start
6. High cost performance
Specifications:
MAX Display: 2000 counts
DC Voltage: 0V-1.999V 0.001V ±(0.8%+3); 2V-19.99V 0.01V ±(0.8%+3); 20V-199.9V 0.1V ±(0.8%+3); 200V-520V 1V ±(1%+5)
AC Voltage: 0.005V-1.999V 0.001V ±(0.8%+3); 2V-19.99V 0.01V ±(0.8%+3); 20V-199.9V 0.1V ±(0.8%+3); 200V-520V 1V ±(1%+5)
Resistance: 0-1999Ω 1Ω ±(1.2%+5); 2KΩ-19.99KΩ 0.01KΩ ±(1.2%+3); 20KΩ-199.9KΩ 0.1KΩ ±(1.2%+3); 200KΩ-1999KΩ 1KΩ ±(1.2%+3);
2MΩ-19.99MΩ 0.01MΩ ±(1.5%+5)
Capacitance:1nF-19.99nF 0.01nF ±(3.5%+8); 10nF-199.9nF 0.1nF ±(3.5%+8); 200nF-1999nF 1nF ±(3.5%+8); 2μF-19.99μF 0.01μF ±(4.5%+10); 20μF-199.9μF 0.1μF ±(4.5%+10); 200μF-1999μF 1μF ±(4.5%+10)
Package Includes:
1 x Smart Multimeter
1 x Test Leads
1 x Charging Cable
1 x Carrying Case
1 x Rechargeable Battery
1 x User Manual
