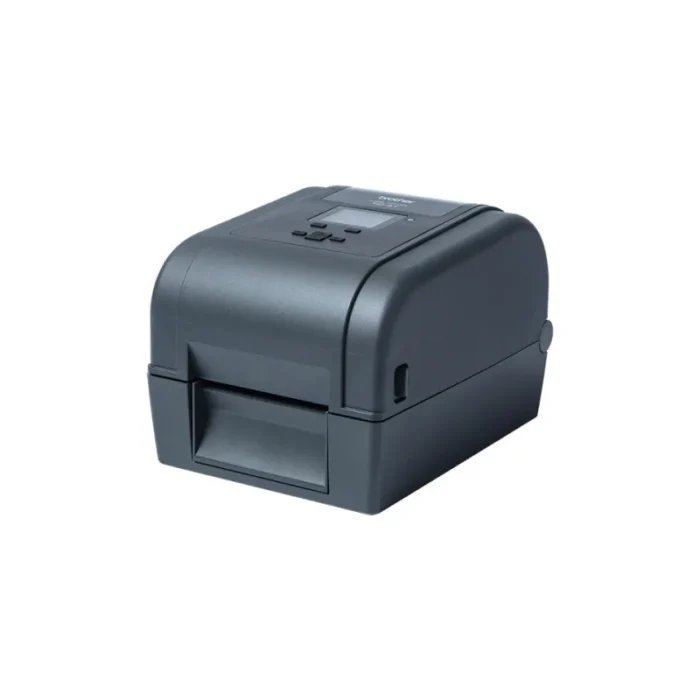

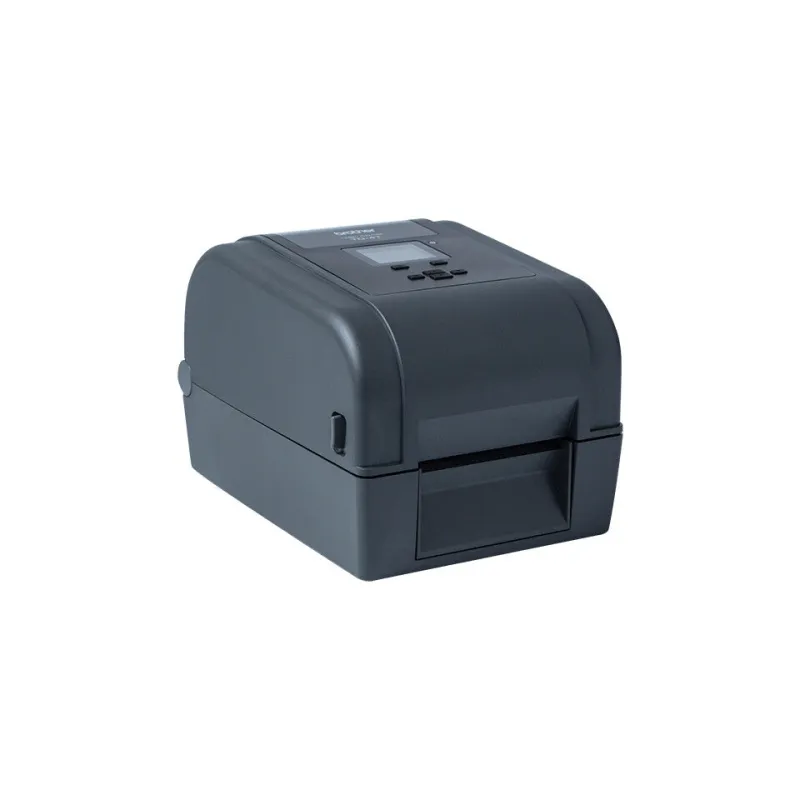

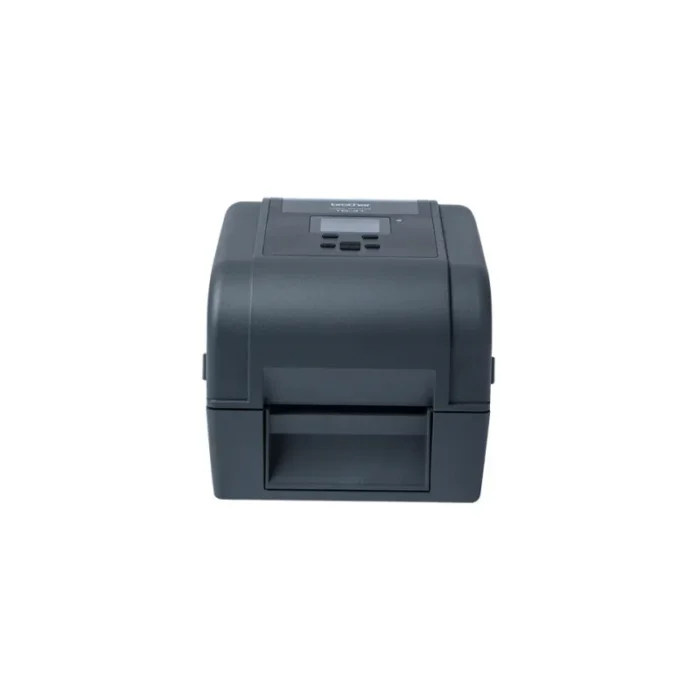

Brother TD4650TNWB label printer Direct thermal / Thermal transfer 203 x 203 DPI 203.2 mm/sec Wired & Wireless Ethernet LAN Wi-Fi Bluetooth
- Ease of use with 2.3″ colour LCD display
- Thermal transfer and direct thermal printing technology
- 203dpi high resolution printing for crisp text and barcodes
- Range of connectivity options including USB, Network, WiFi and Bluetooth
- Fast 203.2mm/sec print speed
- 2 Year Return-to-Base Warranty on hardware
Brother’s TD4650TNWB Thermal Transfer Label and Receipt printer provides the media flexibility, longevity and cost efficiency required for high volume printing at 203dpi resolution. With support for ZPL II emulation and a variety of additional printer command languages, developers can easily integrate printing into existing legacy systems.
High quality thermal transfer printing
The 300dpi print resolution produces incredibly crisp, easy-to-read text and barcodes using thermal transfer ink ribbons and media. As your printing needs change, so too can the Brother TD4750TNWB label printer.
High capacity thermal transfer print ribbons in various materials depending on application
Large capacity ribbons of up to 300 metres can be installed, and are available in wax for standard paper media, wax/resin for improved resistance to chemicals on paper and synthetic media or resin for the best durability against heat and chemicals.
Industry standard printer commands, as standard
Print from Windows using the standard printer driver, or integrate the Brother TD4750TNWB label printer into your legacy systems using ZPL/ZPL2 or EPL printer commands without needing to change your existing software.
Fast print speed and processing to improve efficiency
A fast print speed of 152.4mm/second means less time waiting for your labels to print and more time being productive.
Connectivity to suit your requirements
With integrated USB, Ethernet, Serial ports, Bluetooth and WiFi as standard, the Brother TD4750TNWB will have no problems connecting to your existing equipment and infrastructure.
Optional accessories to further improve productivity
Add a durable label cutter, automatic label peeler or external roll holder for larger capacity rolls to further enhance your efficiency and provide maximum printer up-time.
| Printing | |
|---|---|
| Maximum printing width | 10.8 cm |
| Print speed | 203.2 mm/sec |
| Maximum resolution | 203 x 203 DPI |
| Colour | No |
| Print technology | Direct thermal / Thermal transfer |
| Paper handling | |
|---|---|
| Maximum label width | 11.2 cm |
| Maximum roll diameter | 12.7 cm |
| Ports & interfaces | |
|---|---|
| RS-232 ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
| Bluetooth version | 4.2 |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Connectivity technology | Wired & Wireless |
| Performance | |
|---|---|
| Built-in barcodes | AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Code-128 Codabar Library, EAN128, EAN13, EAN8, GS1 DataBar, ITF-14, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E |
| Flash memory | 128 MB |
| Internal memory | 128 MB |
| Design | |
|---|---|
| Control type | Buttons |
| Colour display | Yes |
| Display diagonal | 5.84 cm (2.3″) |
| Display | LCD |
| Built-in display | Yes |
| Product colour | Black |
| System requirements | |
|---|---|
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 – 60 °C |
| Storage temperature (T-T) | 10 – 90 °C |
| Storage relative humidity (H-H) | 25 – 85% |
| Operating relative humidity (H-H) | 5 – 40% |
| Weight & dimensions | |
|---|---|
| Weight | 3.8 kg |
| Height | 247 mm |
| Depth | 440 mm |
| Width | 300 mm |
| Packaging data | |
|---|---|
| Package weight | 4.77 kg |
| Packaging content | |
|---|---|
| Bundled software | Bartender Ultra Lite Edition |
| Cables included | AC, USB |
| Logistics data | |
|---|---|
| Products per pallet | 30 pc(s) |
| Layers per pallet | 5 pc(s) |
| Master (outer) cases per pallet layer | 6 pc(s) |
| Master (outer) cases per pallet | 30 pc(s) |
| Pallet gross weight | 163.2 kg |
| Pallet gross height | 13.8 cm |
| Harmonized System (HS) code | 84433210 |
| Technical details | |
|---|---|
| Pallet type | 800 x 1200 mm |
| Other features | |
|---|---|
| Country of origin | Taiwan |
