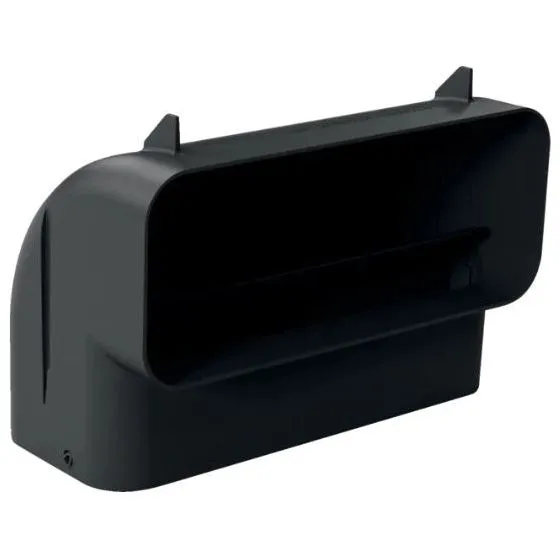

Bosch HEZ9VDSB3 Flat Channel 90º Vertical Bend (Medium Radius), Suitable For Worktop Depth Minimum 65cm for Downdraft and Vented Hobs
Suitable for worktop depths of at least 65cm, the Bosch HEZ9VDSB3 Flat Channel 90º Vertical Bend (Medium Radius) is specifically designed for use with downdraft and vented hobs. This component provides a smooth 90-degree turn while maintaining excellent airflow for optimal ventilation.

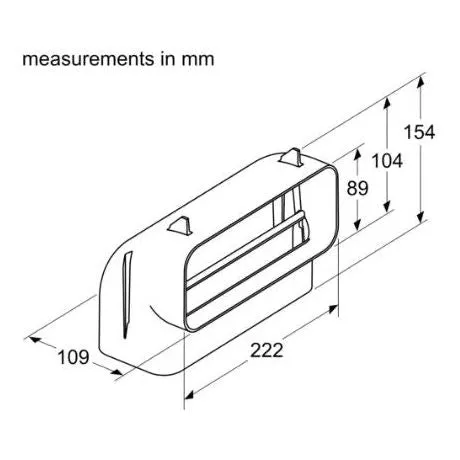

- Flat channel 90º vertical bend (medium Radius), suitable for worktop depth minimum 65cm. Ducting component outlet size: 222mm x 89mm.
- Vertical 90° bend with smaller radius for ducting (partly) within the furniture (for a 65cm worktop depth)
- 90° flat duct bend element (male) in vertical configuration with small radius
- Aerodynamically optimised design to minimise pressure loss and maximise air flow rate. Easy-to-cut & easy-to-connect via the female connector sleeve element.
- The element complies with the Needle Flame Test (according to IEC 60695-11-5) & the V2 flammability class (according to UL94).
