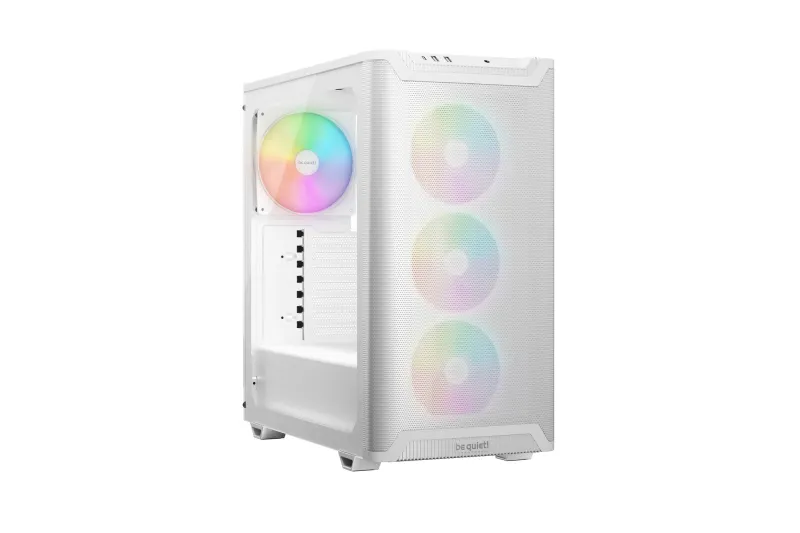

be quiet! Pure Base 501 LX White Midi Tower
- High airflow intake front panel and top cover for maximum performance

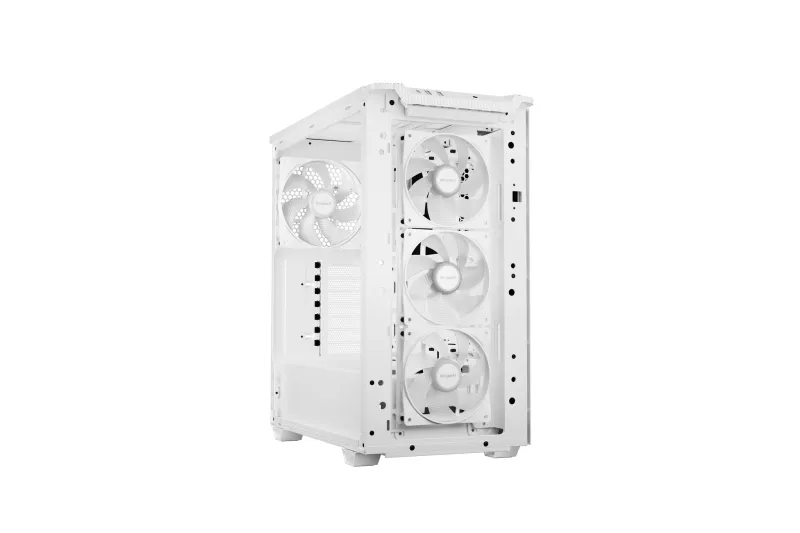

- 4 preinstalled Light Wings LX PWM White fans for unmistakable lighting effects and extraordinary air pressure
- ARGB controller and ARGB-PWM hub for 6 fans
- Generous space for high-end graphics cards and large coolers, despite compact footprint
- Optional vertical graphics card installation
- Water cooling ready for radiators up to 360mm
- Comfortable cable management thanks to a clever and space-optimized cable routing design
- Side panel made of tempered glass
- Support for two 3.5″ or five 2.5″ drives
- Product conception, design and quality control in Germany
Impressive lighting and airflow
Pure Base 501 LX White is an impressively versatile be quiet! ATX case with ARGB fans, compact dimensions and high airflow for any application. Upgrade your gaming room with the multiple colors and modes of Pure Base 501 LX White and make your family and friends gaze in awe.
| Design |
| Maximum PSU length |
20 cm |
| Maximum graphics card length |
36.8 cm |
| Maximum CPU cooler height |
17.8 cm |
| Anti-dust filter |
Yes |
| Illumination location |
Case fans |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Side window |
Yes |
| Number of expansion slots |
7 |
| Number of 2.5″ bays |
5 |
| Number of 3.5″ bays |
2 |
| Supported motherboard form factors |
ATX, micro ATX, Mini-ATX |
| Product colour |
White |
| Material |
Acrylonitrile butadiene styrene (ABS), Glass, Steel |
| Type |
PC |
| Form factor |
Midi Tower |
| Power supply |
| Supported power supply form factors |
ATX, PS2 |
| Power supply included |
No |
| Ports & interfaces |
| Audio output |
Yes |
| Audio input |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| Cooling |
| Pulse-width modulation (PWM) support |
Yes |
| Top radiator sizes supported |
120,240 mm |
| Rear radiator sizes supported |
120,140 mm |
| Front radiator sizes supported |
120,140,240,280,360 mm |
| Liquid cooling capability |
Yes |
| Maximum airflow |
51.5 cfm |
| Noise level (high speed) |
21.9 dB |
| Fan rated current |
0.06 A |
| Fan power consumption |
3.8 W |
| Fan 2 maximum airflow |
56 cfm |
| Maximum air pressure |
1.34 mmH2O |
| Fan 2 maximum air pressure |
0.9 mmH2O |
| Fan rated voltage |
5 – 13.2 V |
| Top fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
2 |
| Rear fans diameters supported |
120,140 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans installed |
1x 140 mm |
| Front fans diameters supported |
120,140 mm |
| Number of front fans supported (max) |
3 |
| Front fans installed |
3x 120 mm |
| Storage |
| Supported HDD sizes |
2.5,3.5″ |
| Technical details |
| Sustainability certificates |
Triman |
| Warranty period |
3 year(s) |
| Compliance certificates |
CE, RoHS, UKCA, WEEE |

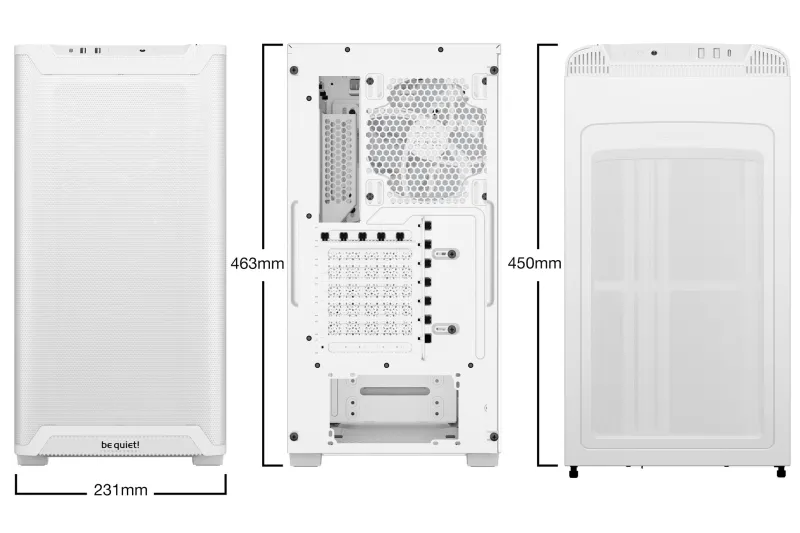

| Weight & dimensions |
| Weight |
7.9 kg |
| Height |
463 mm |
| Depth |
450 mm |
| Width |
231 mm |
| Packaging data |
| Package weight |
9.1 kg |
| Package height |
503 mm |
| Package depth |
518 mm |
| Package width |
292 mm |
| Other features |
| Fan connector |
4-pin |
| Volume |
24.4 L |
