Axis TM1804-LE Housing
- Outdoor ready
- Built-in IR illumination for up to 60 m coverage

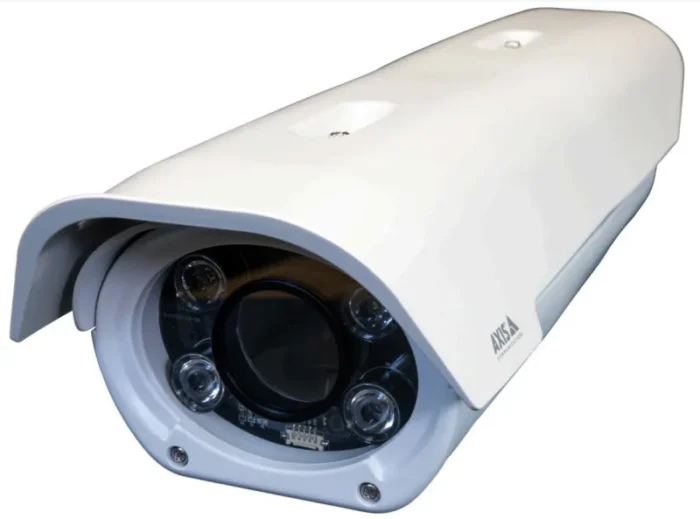

AXIS TM1804-LE Housing
AXIS TM1804-LE housing with powder coated aluminum casing, is an outdoor-ready housing. The housing has IP66/IP67 protection against the ingress of dust and water. The interior heater and fan extend the operating temperature range of the housing. AXIS TM1804-LE housing, with up to 60 meters effective IR coverage, significantly improve image quality in poor light conditions. AXIS TM1804-LE housing provides easy and flexible installation by offering various installation options such as wall mount or pole mount.
| Features | |
|---|---|
| Protection features | Dustproof, Rain proof, Weather resistant |
| International Protection (IP) code | IP66, IP67 |
| Housing material | Aluminium, Glass |
| Product colour | Black, White |
| Compatibility | M1135 Mk II, M1135 Mk II i-CS, M1137 Mk II, M1137 Mk II i-CS |
| Brand compatibility | Axis |
| Placement supported | Outdoor |
| Type | Housing |
| Power | |
|---|---|
| Power consumption (typical) | 48 W |
| Output voltage | 12 V |
| Input voltage | 24 V |
| Rated power | 8 W |
| Weight & dimensions | |
|---|---|
| Weight | 2.2 kg |
| Width | 161.4 mm |
| Depth | 461 mm |
| Height | 141 mm |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 95% |
