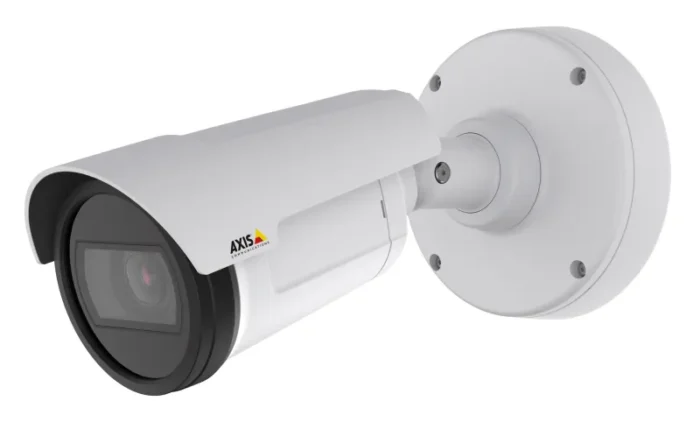

Axis P1435-LE Bullet IP security camera Outdoor 1920 x 1080 pixels Ceiling/wall
- Outdoor IP security camera
- CMOS 25.4 / 2.8 mm (1 / 2.8″) 1920 x 1080 pixels
- Wired Ethernet LAN
- Night vision 30 m IR
- Optical zoom: 3.5x
- Bullet Ceiling/wall
- IP66
- White
- 900 g
Compact and cost-effective HDTV surveillance for any light condition
With features such as Lightfinder and WDR – Forensic Capture, the bullet-style AXIS P1435-LE provides excellent image quality in HDTV 1080p resolution, even in complex light conditions. In addition, the camera supports Axis’ Corridor Format, pixel counter, remote zoom and focus, as well as P-Iris control. The day and night camera is ideal for 24/7 video surveillance, in exposed outdoor areas such as parking lots and service stations, and for general indoor surveillance purposes wherever a compact camera is needed.
Excellent image quality
AXIS P1435-LE with its varifocal, P-Iris lens provides excellent image quality at up to 60 frames per second. The P-Iris control provides optimal depth of field, resolution, image contrast and clarity.
Lightfinder and Wide Dynamic Range (WDR)
With Wide Dynamic Range – Forensic Capture, the camera provides perfectly balanced video quality in scenes with strong variations in light, while Axis’ Lightfinder technology enables outstanding image usability in poor light. The camera can seamlessly transition between handling WDR and low-light conditions.
Built-in IR-LEDs and OptimizedIR
AXIS P1435-LE offers OptimizedIR, Axis’ power-efficient LED technology that provides an adaptable angle of IR illumination. With OptimizedIR, the camera provides automatic illumination of a scene in complete darkness, in case of an event or when requested by a user. The improved IR LED illumination is perfect for discovering objects in a range of up to 30 meters (100 ft).
Edge storage and Zipstream
AXIS P1435-LE offers support for edge storage that makes it possible to record video directly to a storage such as a microSD/SDHC card, thereby creating a flexible and reliable video surveillance system. In addition, Axis’ Zipstream technology lowers bandwidth and storage requirements by an average of 50% without costly and complicated integration. Zipstream ensures that important details in the image get enough attention in the video stream while unnecessary data can be removed.
Ease of installation
AXIS P1435-LE has a compact, low weight casing and integrated bracket for wall or ceiling mount. To further facilitate installation, a wide range of mounting accessories are available. AXIS P1435-LE offers easy installation with remote zoom and focus for fine tuning of the picture from a computer. Power over Ethernet supplies power to the cameras through the network, eliminating the need for power cables and reduces installation costs.
I/O ports
The input/output ports can be used for simple notification to an alarm panel or control of a relay. The input is also ideal when using a PIR motion detector.
| Performance | |
|---|---|
| Certification | EN 55022 Class B, EN 61000-6-1, EN 61000-6-2, EN 50121-4,IEC 62236-4, EN 55024, FCC Part 15 Subpart B Class B,ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 22 Class B,KCC KN22 Class B, KN24, IEC/EN/UL 60950-1,IEC/EN/UL 60950-22, EN 62471, IEC/EN 60529 IP66,NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2,IEC 60068-2-6, IEC 60068-2-27 |
| Languages support | Simplified Chinese, German, English, Spanish, French, Italian, Japanese, KAZ, Portuguese, Russian |
| Number of languages | 10 |
| Alarm input/output | Yes |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Auto-tracking | Yes |
| PTZ control | Yes |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| International Protection (IP) code | IP66 |
| Housing material | Polyester |
| LED indicators | Yes |
| Product colour | White |
| Mounting type | Ceiling/wall |
| Form factor | Bullet |
| Camera | |
|---|---|
| Camera shutter speed | 1/66500 – 2 s |
| White balance | Auto |
| Lens viewing angle, vertical | 51° |
| Lens viewing angle, horizontal | 95° |
| Minimum illumination | 0 lx |
| Image sensor | |
|---|---|
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8″) |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Focus adjustment | 1.4 |
| Auto focus | Yes |
| Focal length range | 3 – 10.5 mm |
| Optical zoom | 3.5x |
| Zoom capability | Yes |
| Night vision | |
|---|---|
| LED type | IR |
| Night vision distance | 30 m |
| Night vision | Yes |
| Video | |
|---|---|
| Text caption overlay | Yes |
| Privacy masking | Yes |
| Full HD | Yes |
| Supported video modes | 1080p |
| Supported graphics resolutions | 160 x 90, 1920 x 1080 (HD 1080) |
| Video compression formats | H.264, M-JPEG, MPEG4 |
| Maximum resolution | 1920 x 1080 pixels |
| Network | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Cabling technology | 10/100Base-T(X) |
| Supported network protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP TM , SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Ethernet interface type | Fast Ethernet |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
|---|---|
| Interface | RJ-45 |
| Terminal block port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Video motion detection | Yes |
| Motion sensor | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SSH, SSL/TLS |
| Alert notification type | |
| Password protection type | User |
| Management features | |
|---|---|
| Remotely operated | Yes |
| Web-based management | Yes |
| Power | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 11 W |
| Power consumption (typical) | 4.6 W |
| Power source type | PoE |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 – 100% |
| Storage temperature (T-T) | -40 – 65 °C |
| Operating temperature (T-T) | -30 – 60 °C |
| System requirements | |
|---|---|
| Windows operating systems supported | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 900 g |
| Height | 132 mm |
| Depth | 260 mm |
| Width | 132 mm |
| Packaging content | |
|---|---|
| Bundled software | AXIS Camera Companion, AXIS Camera Station |
| Quick installation guide | Yes |
| Mounting brackets included | Yes |
| Technical details | |
|---|---|
| Power source | PoE |
| Iris | Yes |
| Other features | |
|---|---|
| USB connectivity | No |
