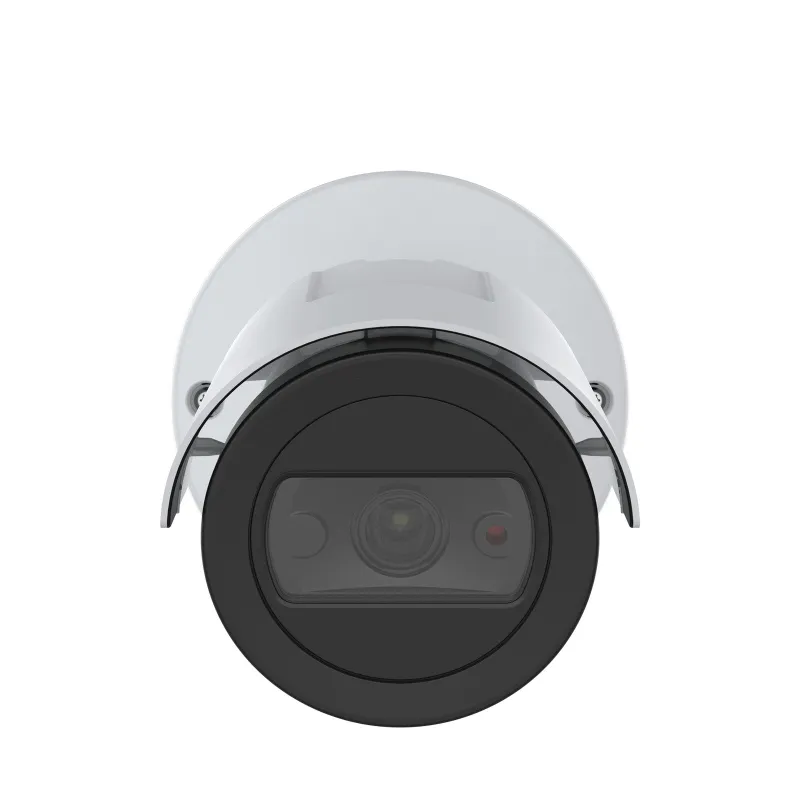

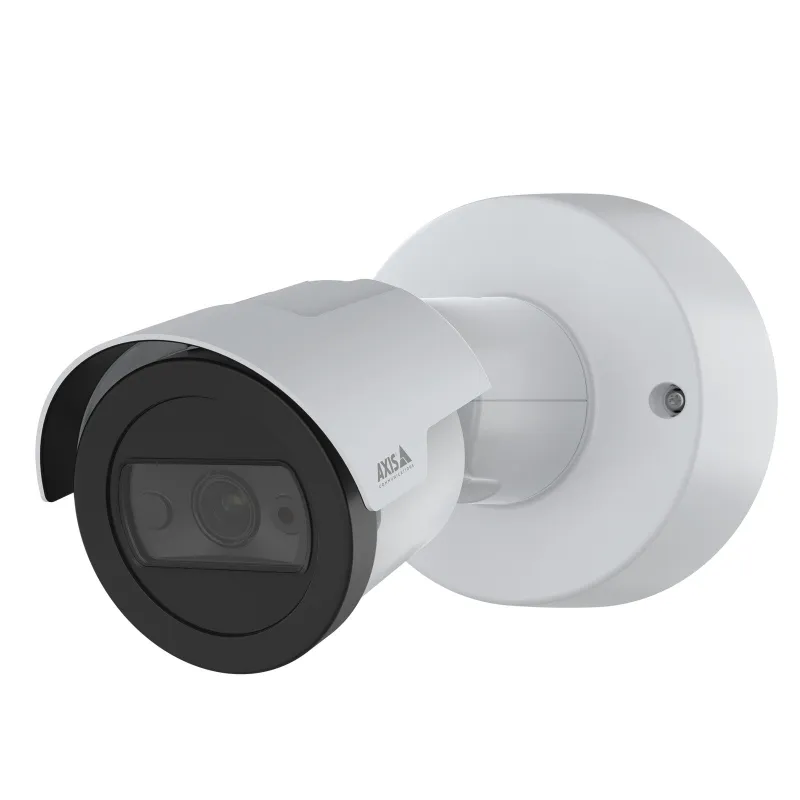

Axis 02132-001 security camera Bullet IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall
- Analytics with deep learning; Compact, lightweight design; HDTV 1080p; Outdoor-ready with IR illumination; Zipstream supporting H.264/H.265
Ideal for tough environments and rough weather, AXIS M2035-LE delivers HDTV in 1080p. With a deep learning processing unit, it enables unique opportunities for analytics based on deep learning on the edge. AXIS Object Analytics offers detection and classification of humans, vehicles, and types of vehicles. And Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Available in two lens alternatives, this IK08-rated camera offers flexible and cost-efficient installation including PoE. Edge-to-edge technology allows for smart pairing with Axis speakers. Plus, a spacious, sealed back box ensures secure cable management.
| Performance | |
|---|---|
| Certification | CISPR 24, CISPR 35, EN 55032 Class A, EN 55035,EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A,ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35,RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| Number of languages | 12 |
| Infrared (IR) cut-off filter | Yes |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| PTZ modes | Digital PTZ |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| IK code | IK08 |
| International Protection (IP) code | IP66, IP67 |
| Housing material | Aluminium, Plastic |
| Product colour | White |
| Mounting type | Ceiling/wall |
| Form factor | Bullet |
| Camera | |
|---|---|
| Camera shutter speed | 1/19000 – 1/5 s |
| Minimum illumination | 0.17 lx |
| Image sensor | |
|---|---|
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9″) |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Zoom capability | Yes |
| Number of lenses | 1 |
| Night vision | |
|---|---|
| Infra-red wavelength | 855 nm |
| LED type | IR |
| Night vision distance | 20 m |
| Night vision | Yes |
| Video | |
|---|---|
| Flip & mirror | Yes |
| Text caption overlay | Yes |
| Image quality adjustment | Brightness, Contrast, Sharpness |
| Privacy masking | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Frame rate | 30 fps |
| Video recording | Yes |
| Supported video modes | 1080p |
| Supported graphics resolutions | 1280 x 960, 1920 x 1080 (HD 1080) |
| Video compression formats | H.264, H.265, M-JPEG |
| Video formats supported | H.264, H.265, M-JPEG |
| Total megapixels | 2 MP |
| Maximum resolution | 1920 x 1080 pixels |
| Network | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPSb , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SOCKS, SSH, LLDP, MQTT v3.1.1 |
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Digest authentication | Yes |
| Security algorithms | 256-bit AES-XTS, EAP-TLS |
| Alert notification type | |
| Pixel counter | Yes |
| Password protection | Yes |
| Power | |
|---|---|
| Power consumption (max) | 12.9 W |
| Power consumption (typical) | 5 W |
| Power source type | PoE |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 10 – 100% |
| Storage temperature (T-T) | -40 – 65 °C |
| Operating temperature (T-T) | -30 – 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 491 g |
| Length | 170 mm |
| Diameter | 10.1 cm |
| Depth | 170 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Number of cameras | 1 |
| Other features | |
|---|---|
| Doesn’t contain | BFR, PVC |
