Axis 02110-001 security camera accessory Mount
- Compatible with standard pan tilt pole mounted camera fixings; Easy to install; Lightweight, made of aluminium; Outdoor-ready; Robust, IK10-rated

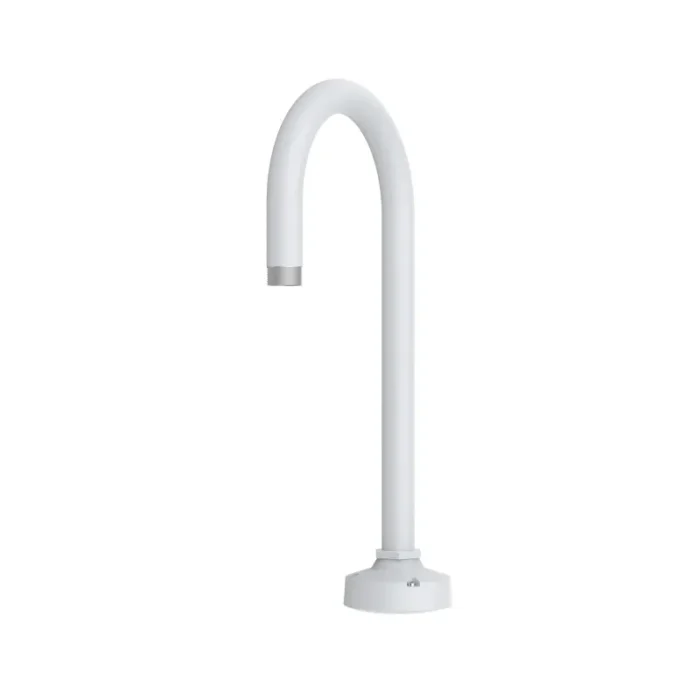

AXIS TQ6501-E Parapet Mount is a robust, outdoor-ready mount made of aluminum. The round base of the mount makes it easy to install as well as suitable for installations on poles. It’s compatible with Axis pendant kits with 1.5’’ NPS or NPT inner thread which enables mounting of several Axis cameras, and Axis ACI ¾’’ conduit adapters. Cables can be routed through the bottom, or from the side by using a conduit connection. AXIS TQ6501-E has four holes for standard pole mounted pan and tilt camera fixings, equi-spaced on 101.6 PCD.
| Features | |
|---|---|
| Easy to install | Yes |
| Cable routing | Internal |
| Housing material | Aluminium |
| Product colour | White |
| Compatibility | AXIS ACI Conduit Adapter 3/4″ U-Shape 30 mmAXIS ACI Conduit Adapter 3/4″ NPSAXIS P33-VE Network Cameras Pendant KitAXIS T91A6 Pipe SealAXIS T94A01D Pendant KitAXIS T94B02D Pendant KitAXIS T94F01D Pendant KitAXIS T94F02D Pendant Kit with SunshieldAXIS T94K01D Pendant KitAXIS T94M01D Pendant KitAXIS T94N01D Pendant KitAXIS T94N02D Pendant KitAXIS T94T01D Pendant KitAXIS T94T02D Pendant KitAXIS T94V01C Dual Camera MountAXIS T94V01D Pendant KitAXIS T94V02D Pendant KitAXIS TP8101 Pendant Kit |
| Brand compatibility | Axis |
| Placement supported | Universal |
| Type | Mount |
| Ergonomics | |
|---|---|
| Connecting thread | 3/4″ |
| Weight & dimensions | |
|---|---|
| Weight | 2.5 kg |
| Width | 160 mm |
| Depth | 418 mm |
| Height | 754 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85299020 |
