Axis 01564-001 motion detector Wired White
- Built-in analytics; Extensive 180° area coverage; Low false alarm rate 24/7; PoE-out to power additional devices; Smart coexistence functionality

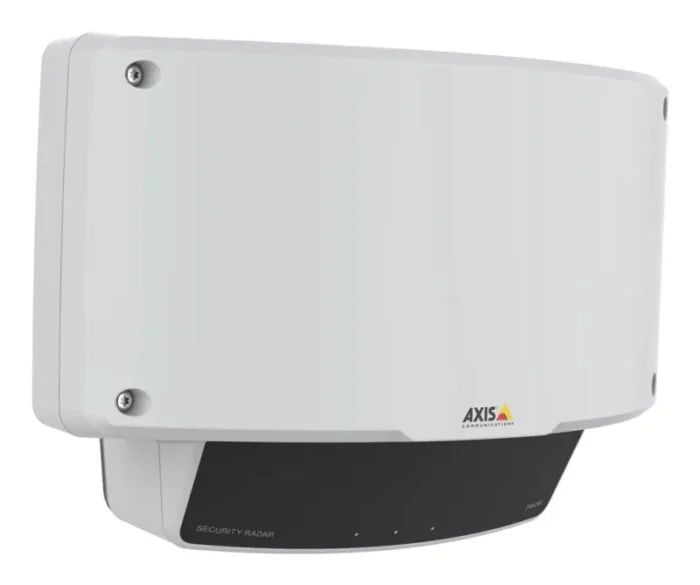

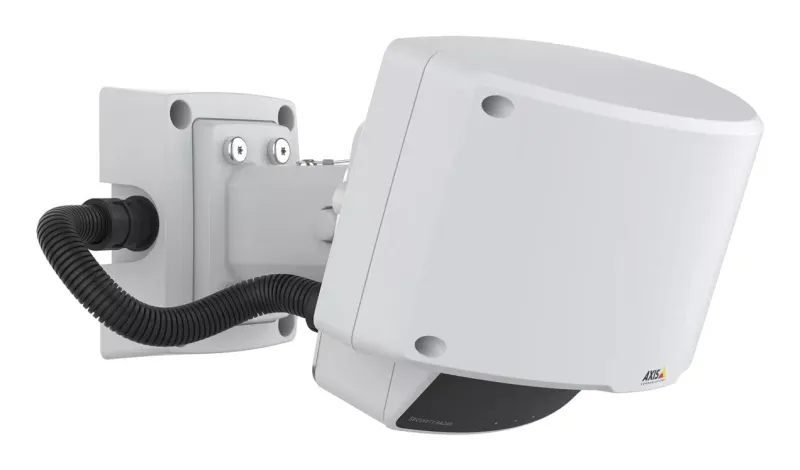

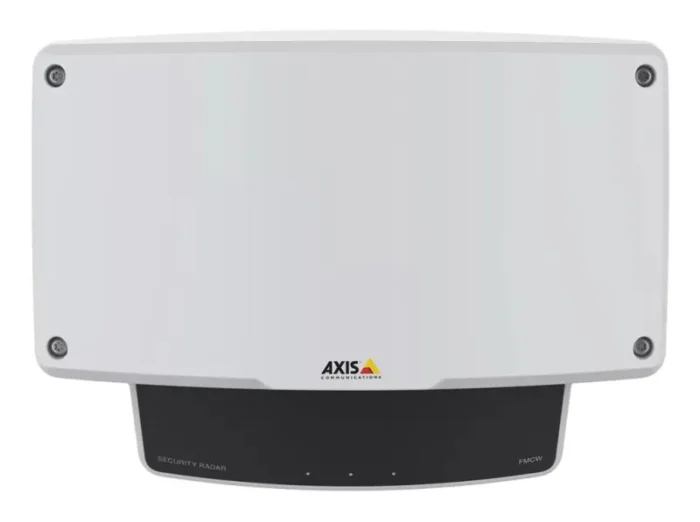

AXIS D2110-VE Security Radar is a smart network-based security device that uses advanced radar technology to deliver wide 180° coverage. Thanks to built-in analytics developed using machine learning and deep learning, it can accurately detect, classify and track people and vehicles with a low false alarm rate. Featuring PoE-out it’s easy to connect and power an additional device, such as a camera for visual verification or a network horn speaker for deterrence. Furthermore, smart coexistence functionality allows the use of multiple radars close to each other. For instance, it’s possible to mount two radars back-to-back for complete 360° coverage.
| Features | |
|---|---|
| Certification | EN 300440, EN 301489-1, EN 301489-51, EN 62311,FCC 15 C, ANATEL, AS/NZS 4268, ICASA, IFETEL,MIC, MoC, NCC, RSS-210EN 55032 A, EN 55024, EN 61000-6-1, EN 61000-6-2,EN 61000-6-4, FCC 15 B A,ICES-3(A)/NMB-3(A), KC KN32 A,RCM AS/NZS CISPR 32 A, VCCI B, EACIEC/EN/UL 62368-1, IEC/EN/UL 60950-22IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14,IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66,IEC/EN 62262 IK08, NEMA 250 Type 4X |
| Detection angle | 180° |
| Installation height (max) | 3.5 m |
| Product colour | White |
| Security | |
|---|---|
| Operating frequency | 2405 – 2425 MHz |
| Detection distance | 85 m |
| Connectivity technology | Wired |
| Power | |
|---|---|
| Input voltage | 8 – 28 V |
| Power consumption (typical) | 10 W |
| Power source type | DC |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 – 100% |
| Operating temperature (T-T) | -40 – 60 °C |
| Storage temperature (T-T) | -40 – 65 °C |
| Storage relative humidity (H-H) | 10 – 100% |
| Weight & dimensions | |
|---|---|
| Weight | 2.4 kg |
| Height | 152 mm |
| Depth | 206 mm |
| Width | 285 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| Manual | Yes |
