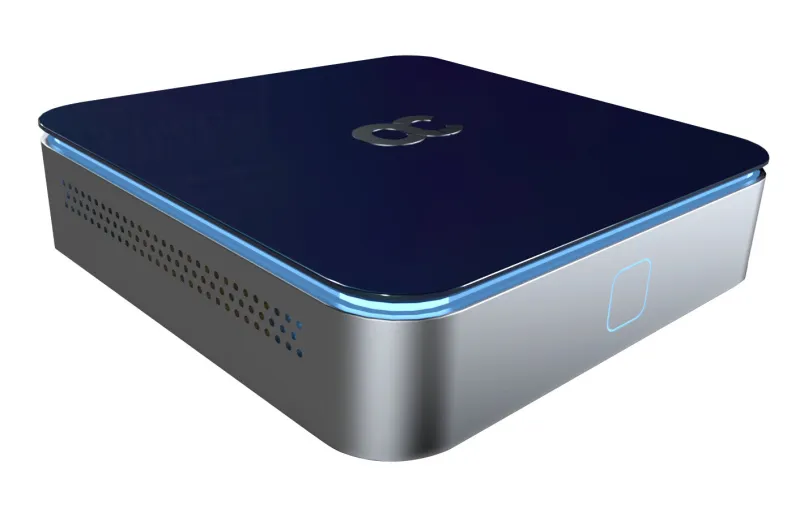

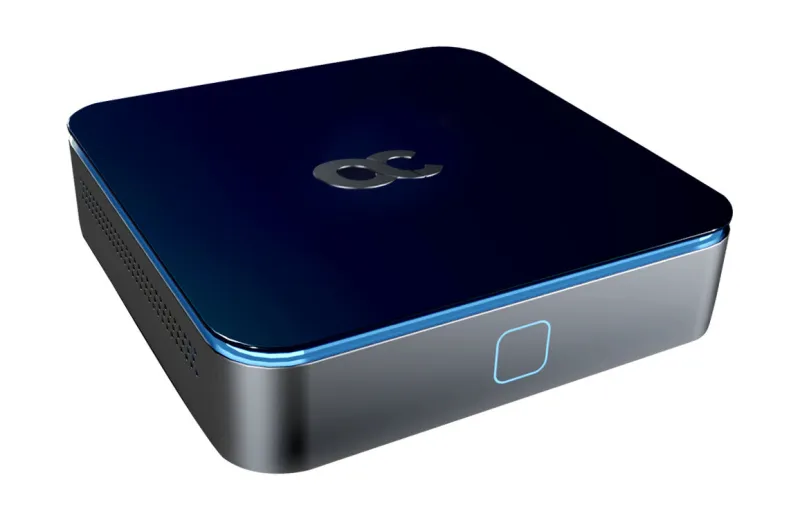

AudioCodes RXV200 Compute Device for small to mid size meeting rooms. The Bundle also Includes the RXPanel, RX15 Speakerphone and RXVCam50M
- Group video conferencing system 18 person(s)
- Bluetooth Signal-to-Noise Ratio (SNR): 55 dB
- 4K Ultra HD 3840 x 2160 pixels
- Built-in speaker(s) 250 – 20000 Hz RMS rated power: 40 W
- Ethernet LAN 10,100,1000 Mbit/s Wi-Fi VLAN support
- Single camera 8.42 MP 16x CMOS 1/1.8″
- Power source type: DC
- Black
The RXV200-B70 bundle includes the AI-powered RXVCam70 dual-lens PTZ camera and provides an ideal solution for a truly immersive meeting experience in large rooms.
| Performance | |
|---|---|
| PTZ control | Yes |
| Tilt angle range | -90 – 90° |
| Pan range | -170 – 170° |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Product colour | Black |
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| Number of cameras | 1 |
| Number of persons | 18 person(s) |
| Product type | Group video conferencing system |
| Video | |
|---|---|
| Resolution at capture speed | 640×480@25fps, 640×480@30fps, 1280×720@25fps, 1280×720@30fps, 1920×1080@25fps, 1920×1080@30fps, 3840×2160@30fps |
| Video formats supported | H.264, MJPG, YUV |
| Aspect ratio | 16:9 |
| Supported graphics resolutions | 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160 |
| Maximum video resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Audio | |
|---|---|
| RMS rated power | 40 W |
| Microphone pick-up range | 8 m |
| Automatic gain control | Yes |
| Frequency range | 250 – 20000 Hz |
| Number of speakers | 1 |
| Built-in speaker(s) | Yes |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB connector type | USB Type-A, USB Type-C |
| Interface module | |
|---|---|
| Interface module Ethernet LAN (RJ-45) ports | 1 |
| Interface module HDMI output ports quantity | 2 |
| Interface module HDMI input ports quantity | 1 |
| Interface module HDMI ports quantity | 3 |
| Network | |
|---|---|
| Security algorithms | 256-bit AES |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Supported network protocols | TCP/IP (IPv4) |
| Networking standards | IEEE 802.1Q, IEEE 802.1p |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Camera | |
|---|---|
| White balance | Auto, Indoor, Manual, Outdoor |
| Minimum illumination | 0.5 lx |
| Camera shutter speed | 1/30 ~ 1/10000 s |
| Camera privacy shutter | Yes |
| 3D NR (Noise Reduction) | Yes |
| Field of view (wide) | 107° |
| Focal length range | 4.8 ~ 57.8 mm |
| Image sensor size | 1/1.8″ |
| Sensor type | CMOS |
| Digital zoom | 16x |
| Optical zoom | 12x |
| Zoom capability | Yes |
| Camera type | Single camera |
| Megapixel (approx.) | 8.42 MP |
| Display | |
|---|---|
| Touchscreen | Yes |
| Display resolution | 1280 x 800 pixels |
| Display diagonal | 20.3 cm (8″) |
| Built-in display | Yes |
| Microphone | |
|---|---|
| Microphone mute | Yes |
| Microphone frequency | 300 – 8000 Hz |
| Microphone sensitivity | 38 dB |
| Microphone colour | Black |
| Features | |
|---|---|
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Computer system | |
|---|---|
| Operating system installed | Android |
| Processor model | QCS8250 |
| Processor family | Qualcomm Snapdragon |
| Computer system type | Mini PC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 – 50 °C |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -10 – 60 °C |
| Storage relative humidity (H-H) | 20 – 90% |
| Power | |
|---|---|
| DC input voltage | 12 V |
| Current | 3 A |
| Power source type | DC |
| Weight & dimensions | |
|---|---|
| Camera weight | 2.3 kg |
| Camera dimensions (WxDxH) | 295 x 245 x 240 mm |
| Speaker weight | 3.6 kg |
| Speaker dimensions (WxDxH) | 800 x 56 x 90 mm |
| Interface module weight | 750 g |
| Interface module dimensions (W x D x H) | 170 x 170 x 41.3 mm |
| Packaging content | |
|---|---|
| Packaging content | ✓ RXV200✓ RX40✓ RXVCam70✓ RX-PAD✓ 12V 3A Power Adapter (100-240V)✓ USB Type C cable✓ Ethernet cable |
| AC adapter included | Yes |
| Cables included | LAN (RJ-45), USB Type-C |
