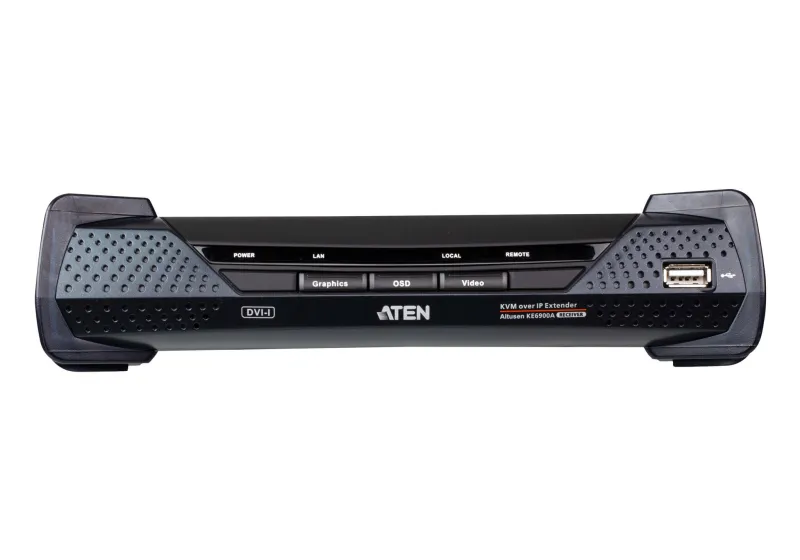

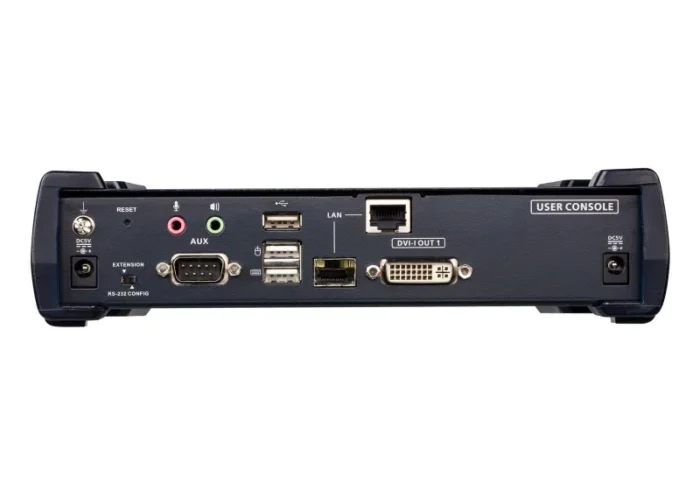

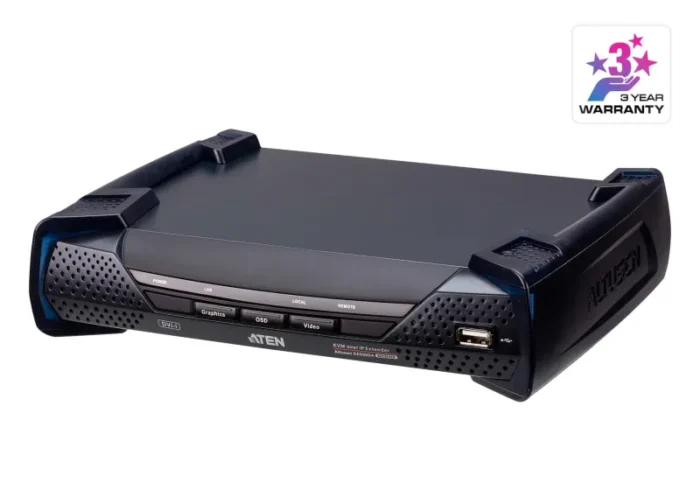

ATEN FHD DVI-I KVM over IP Receiver
- Supports 1Gbps SFP fiber module expansions up to 10 km
- Supports power/network failover – dual DC jacks for power redundancy and 1 RJ45 & 1 SFP fiber ports for network failover to ensure constant availability for mission-critical applications
- Superior video quality – up to 1920 x 1200 @ 60 Hz; 24-bit color depth
- Supports digital (DVI) or analog (VGA) video output
The KE6900A extender is consisted of a high performance IP-based transmitter (KE6900AT) that connects to the computer and a receiver (KE6900AR) that provides console access from a separate location. The KE6900A allows extended access of computer systems remotely via USB consoles (USB keyboard, USB mouse, DVI monitor) over intranet, enabling users to place the computer system in secure and temperature controlled environments, which maybe isolated from users’ workstation.
1x KE6900AR DVI-I Single Display KVM over IP Receiver
1x 0AD8-8005-40MA Power Adapter
1x LIN2-418K-E12G Power Cord
1x User Instructions
| Features |
| LED indicators |
Link, Power |
| Material |
Metal |
| Product colour |
Black |
| On Screen Display (OSD) |
Yes |
| Maximum digital resolution |
1920 x 1200 pixels |
| Maximum transfer distance |
10000 m |
| Connectivity technology |
Wired |
| Type |
Receiver |
| Receiver |
| RJ-45 ports quantity (receiver) |
1 |
| Receiver local video port type |
DVI-I |
| Receiver local keyboard/mouse port type |
USB |
| Ports & interfaces |
| PC Audio out |
Yes |
| PC Audio in |
Yes |
| RS-232 ports |
1 |
| RJ-45 ports quantity |
1 |
| USB port type |
USB Type-A |
| Power |
| Power consumption (receiver) (max) |
6.35 W |
| AC input voltage |
5 V |
| Weight & dimensions |
| Receiver weight |
1.3 kg |
| Receiver height |
5.48 cm |
| Receiver depth |
22.8 cm |
| Receiver width |
17.2 cm |
| Packaging data |
| Package weight |
2.13 kg |
| Package height |
117 mm |
| Package depth |
414 mm |
| Package width |
207 mm |
| Operational conditions |
| Operating relative humidity (H-H) |
0 – 95% |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating temperature (T-T) |
0 – 50 °C |
| Technical details |
| Weight |
1.53 kg |
| Logistics data |
| Products per master (outer) case |
3 pc(s) |
| Master (outer) case gross weight |
7.09 kg |
| Master (outer) case height |
232 mm |
| Master (outer) case length |
427 mm |
| Master (outer) case width |
370 mm |
| Harmonized System (HS) code |
84733080 |
| Master (outer) case net weight |
4.59 kg |
