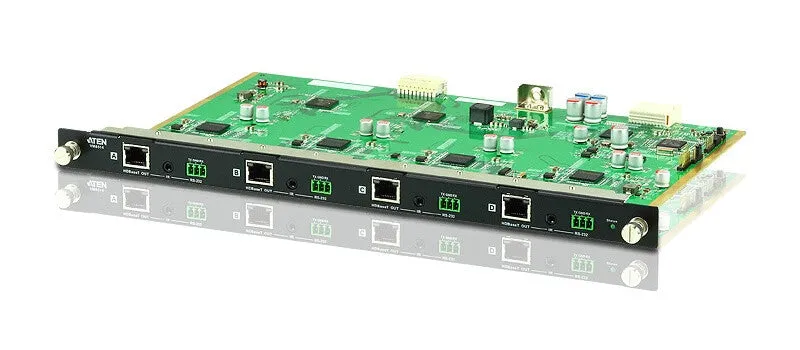

ATEN 4-Port HDBaseT Output Board for VM1600 / VM3200
- 4-port HDBaseT Output Board that is compatible with the VM1600A/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility
- Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- HDBaseT Connectivity – extends 4 HDBaseT connections up to 100 meters via single Cat 5e/6 cable
- HDBaseT Anti-jamming – resists signal interference during video transmission using HDBaseT technology
- Connected to VE805R/VE816R:
- Seamless Switch – features close-to-zero-second switching, continuous video streams, real-time switching and stable signal transmissions
- Video Wall – features configurable video wall profiles for custom layouts via point-n-click web GUI
- Bi-directional IR channel – IR transmission is processed one direction at a time
- Hot-swappable design for easy integration of I/O boards
The VM8514 4-Port HDBaseT Output Board offers an easy way route 4 HDBaseT transmitters to 4 HDBaseT receivers, and in combination with the ATEN Modular Matrix Switches to provide the ability of routing up to 32 input and 32 output HDBaseT connections.
1x VM8514 4-Port HDBaseT Output Board
4x JCTN-3401-103G Terminal Block Connectors
1x 2xRT-0003G-1 IR Transmitter
1x 2xRT-0004G IR Receiver
1x User Instructions
| Design |
| Compatibility |
Aten VM1600A/VM3200 |
| Material |
Metal |
| Product colour |
Black |
| Product type |
Output board |
| Ports & interfaces |
| RJ-45 ports quantity |
4 |
| Power |
| Power consumption (typical) |
12.2 W |
| Weight & dimensions |
| Weight |
635 g |
| Height |
23.3 mm |
| Depth |
352 mm |
| Width |
238 mm |
| Packaging data |
| Package weight |
1.02 kg |
| Package height |
57 mm |
| Package depth |
426 mm |
| Package width |
285 mm |
| Operational conditions |
| Storage relative humidity (H-H) |
0 – 80% |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Operating temperature (T-T) |
0 – 40 °C |
| Logistics data |
| Products per master (outer) case |
2 pc(s) |
| Master (outer) case gross weight |
2.53 kg |
| Master (outer) case length |
440 mm |
| Master (outer) case width |
300 mm |
| Master (outer) case height |
138 mm |
| Master (outer) case net weight |
1.27 kg |
