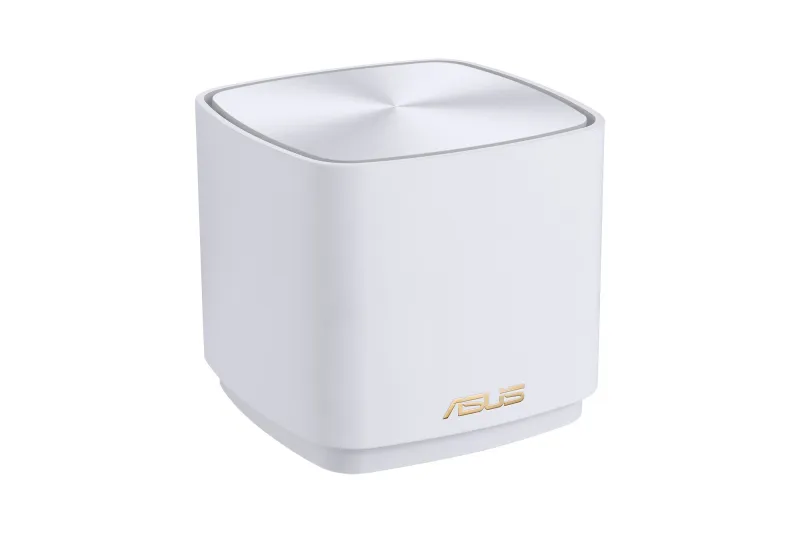

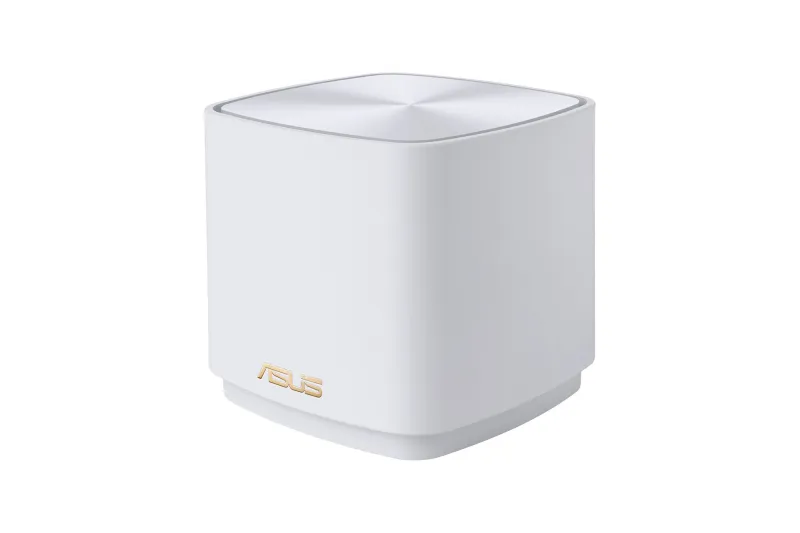

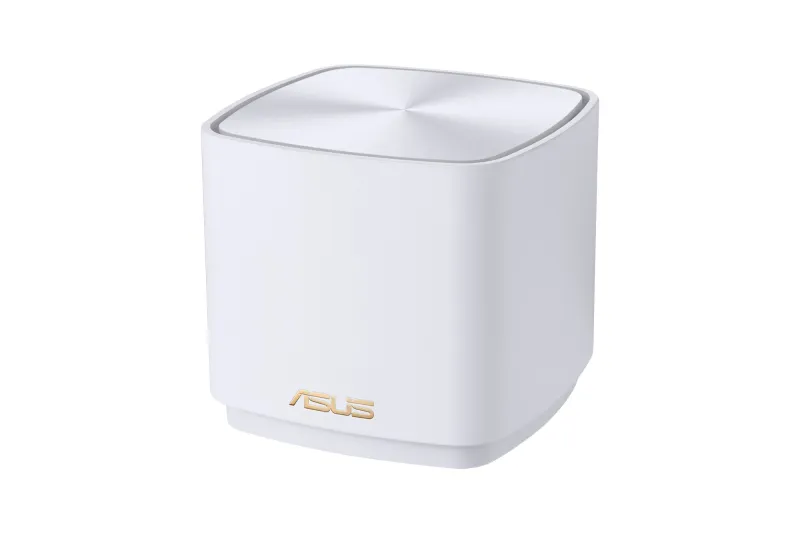

ASUS ZenWiFi XD5 (W-1-PK) Dual-band (2.4 GHz / 5 GHz) Wi-Fi 6 (802.11ax) White 2 Internal
- Mesh router White
- Antenna type: Internal Antennas quantity: 2
- Maximum coverage: 222.9 m²
- Dual-band (2.4 GHz / 5 GHz) Wi-Fi 6 (802.11ax)
- WPA, WPA2, WPA2-Enterprise, WPA3, WPS
- Point-to-point protocol over Ethernet (PPPoE) Static IP
- Quality of Service (QoS) support
- DHCP server
- Ethernet WAN
WiFi Coverage Everywhere. Always Secure.
Whole-home Coverage
People enjoy family time together with good WiFi performance provided by ZenWiFi
The ZenWiFi XD5 system consists of three ASUS AX3000 WiFi 6 routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections — inside or outside your home!
WiFi 6
True 8K Streaming
ZenWiFi XD5 puts your WiFi into top gear! With a total bandwidth of up to of 3000 Mbps, it’s up to 3X faster* than WiFi 5 routers **.
* Compatible WiFi 6 device required.
** The data compares speed of 2X2 11ax on 5GHz 160 MHz bandwidth with 1024QAM modulation to speed of 2×2 11ac on 5GHz 80MHz with 256QAM modulation.
Explore ultimate WiFi 6 performance
The ASUS ZenWiFi XD5 supports high-speed 160MHz bandwidth*. It dramatically increases network capacity while reducing congestion, delivering higher performance for every WiFi 6 device.
*160MHz bandwidth may be unavailable in the 5GHz band in some regions/countries, due to regulatory restrictions. And to benefit from WiFi 6 router features, compatible WiFi 6 devices are required.
Flexible Network Naming
Uniquely, ZenWiFi lets you choose how you name your WiFi networks: a single name for everything, or separate names for each frequency band. The choice is yours!
Easier-than-ever Setup
3-step setup with the ASUS Router app
Make the Internet a Safer Place for Everyone
AiProtection Classic with Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that’s happening on your network via the mobile app.
Smart Looks for Smart Homes
ZenWiFi XD5 works perfectly with smart-home services — including Alexa skills — and is available in charcoal or white to suit your décor.
Space-saving and Great Design
Comes with mounting holes and a screw pack. Hang it on the wall or place it anywhere, the choice is yours!
AiMesh Technology
Easy setup. Flexible management.
Even non-experts can quickly set up AiMesh technology, while more experienced users will appreciate the comprehensive advanced networking features.
| Design | |
|---|---|
| Reset button | Yes |
| Maximum coverage | 222.9 m² |
| Antennas quantity | 2 |
| Antenna type | Internal |
| LED indicators | Power |
| Product type | Mesh router |
| Product colour | White |
| Wireless LAN features | |
|---|---|
| VPN support | VPN Client L2PTVPN Client OVPNVPN Client PPTPVPN Server IPSecVPN Server OVPNVPN Server PPTP |
| Dynamic DNS (DDNS) | Yes |
| IGMP snooping | Yes |
| Static IP | Yes |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Security algorithms | WPA, WPA2, WPA2-Enterprise, WPA3, WPS |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Features | |
|---|---|
| MIMO | Yes |
| SSID Broadcast | Yes |
| Parental control | Yes |
| DHCP server | Yes |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet WAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
|---|---|
| AC adapter output current | 1.5 A |
| AC adapter output voltage | 12 V |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 110 – 240 V |
| Packaging content | |
|---|---|
| Number of products included | 1 pc(s) |
