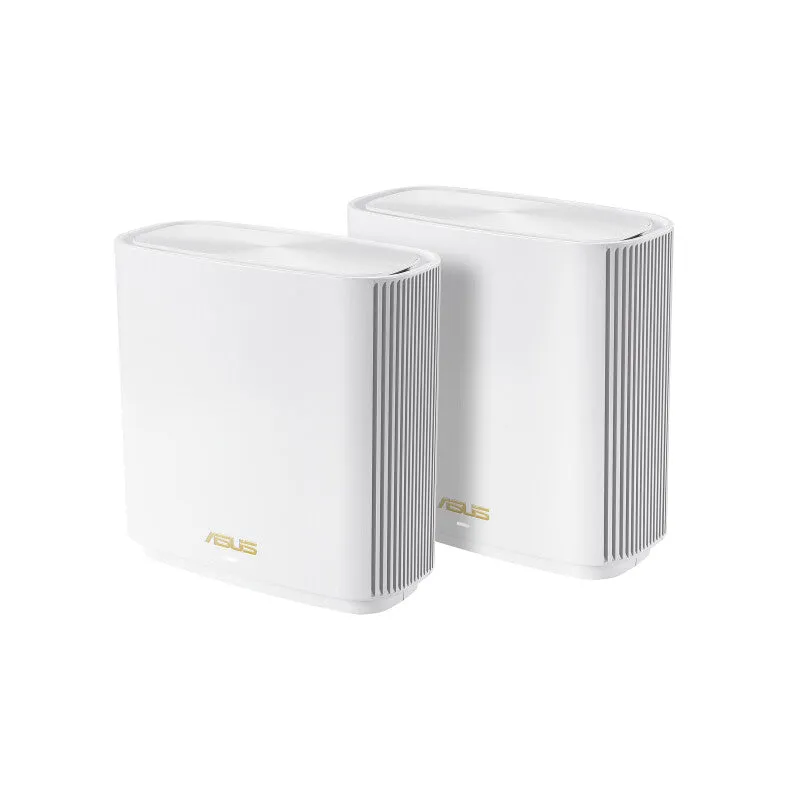

ASUS ZenWiFi AX XT8 (W-1-PK) wireless router Gigabit Ethernet Tri-band (2.4 GHz / 5 GHz / 5 GHz) White
- Tabletop router White
- Tri-band (2.4 GHz / 5 GHz / 5 GHz) Wi-Fi 6 (802.11ax) 4804 Mbit/s
- Gigabit Ethernet
- Ethernet WAN
- Ethernet LAN (RJ-45) ports: 3
- USB port
- Web-based management Quality of Service (QoS) support
Whole-home Coverage
High speed tri-band. Stable WiFi.
The ZenWiFi AX system consists of a pair of ASUS AX6600 WiFi 6 routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections — inside or outside your home!
Flexible Network Naming
Uniquely, ZenWiFi AX lets you choose how you name your WiFi networks: a single name for everything, or separate names for each frequency band. The choice is yours!
Make the Internet a
Safer Place for Everyone
AiProtection Pro with Advanced Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that’s happening on your network via the mobile app.
Smart Looks for Smart Homes
ZenWiFi AX works perfectly with smart-home services — including Alexa skills and IFTTT — and is available in black or white to suit your décor.
AiMesh Technology
Easy setup. Flexible management.
Even non-experts can quickly set up AiMesh technology, while more experienced users will appreciate the comprehensive advanced networking
Performance
Through Engineering

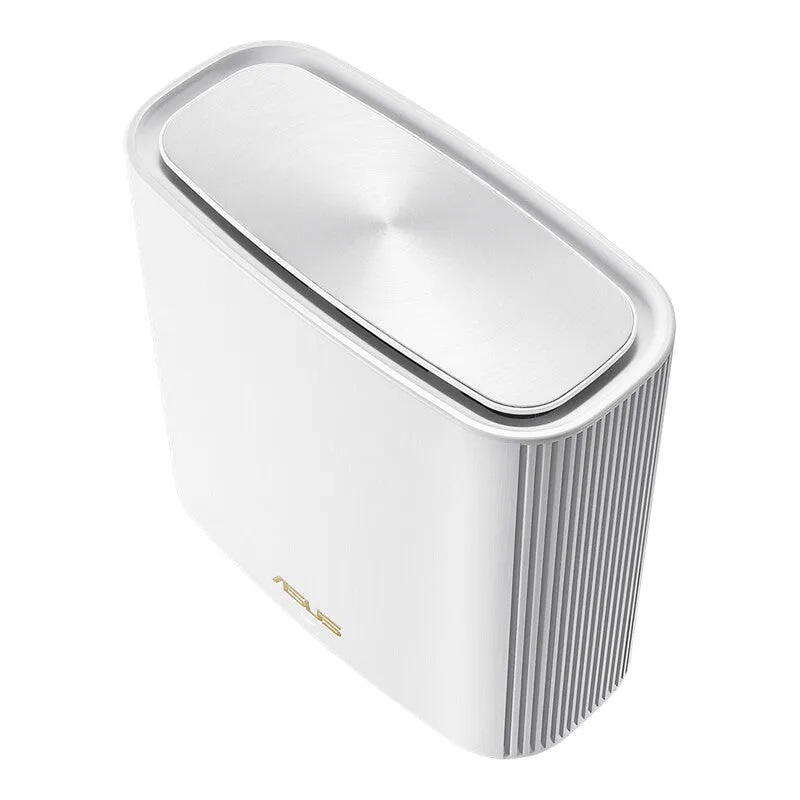

ZenWiFi AX features a quad-core CPU to deliver the full performance potential of WiFi 6. Its vertical housing holds a specially designed antenna and circuit board that optimizes WiFi signal strength and provides better airflow, improving thermal performance for reliable operation.
– Special designed vents for increased airflow
– Double heatsink for maximized heat dissipation
– 45° antennas ensure strong WiFi in multi-story homes
– Vertical housing with space between antennas and circuit board for minimal WiFi signal interference
– Quad-core CPU (with WiFi) plus additional WiFi chipset
– 2.5G WAN/LAN port
| WAN connection | |
|---|---|
| WAN connection type | RJ-45 |
| SIM card slot | No |
| DSL WAN | No |
| Ethernet WAN | Yes |
| Wireless LAN features | |
|---|---|
| Modulation | 1024-QAM |
| WLAN data transfer rate (third band) | 4804 Mbit/s |
| WLAN data transfer rate (second band) | 1201 Mbit/s |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 4804 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 5 GHz) |
| Network | |
|---|---|
| VPN support | VPN Client L2TPVPN Client OVPNVPN Client PPTPVPN Client WireGuardVPN Server IPSecVPN Server OVPNVPN Server PPTPVPN FusionVPN Server WireGuard |
| VPN Passthrough | Yes |
| Dynamic DNS (DDNS) | Yes |
| Port forwarding | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax |
| Ethernet LAN data rates | 2500 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |

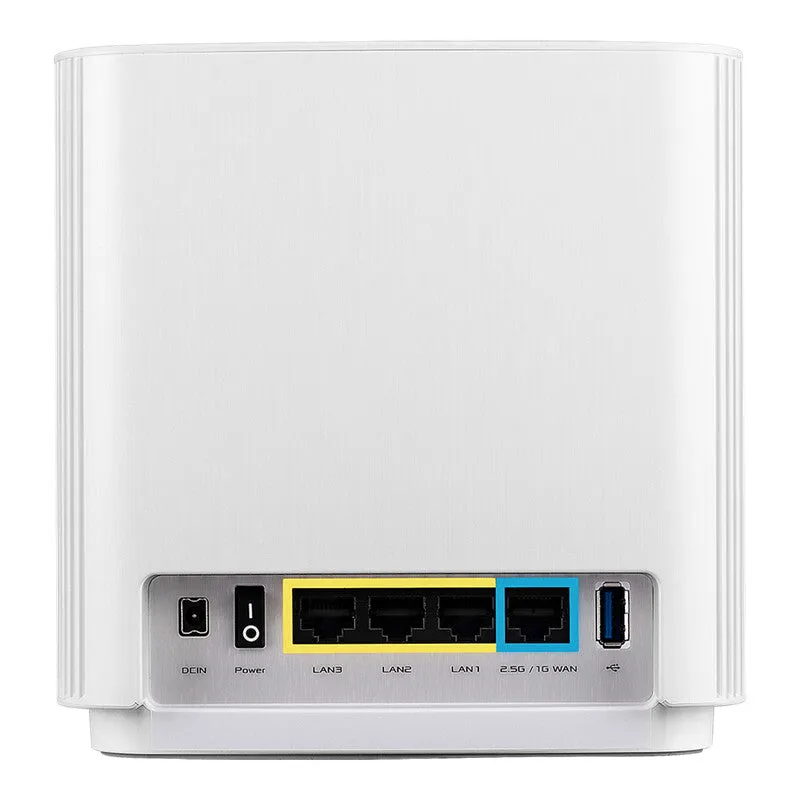

| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 3 |
| Management features | |
|---|---|
| WPS push button | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Security | |
|---|---|
| Network address translation (NAT) | Yes |
| DMZ support | Yes |
| System event log | Yes |
| URL filtering | Yes |
| Filtering | Yes |
| DoS attack prevention | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Guest access | Yes |
| Firewall | Yes |
| Security algorithms | WPA2-PSK, WPA-PSK, WPA-Enterprise, WPS |
| Protocols | |
|---|---|
| Universal Plug and Play (UPnP) | Yes |
| Design | |
|---|---|
| On/off switch | Yes |
| Product colour | White |
| Product type | Tabletop router |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Warranty card | Yes |
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Antenna | |
|---|---|
| Antennas quantity | 6 |
| Antenna design | Internal |
| Features | |
|---|---|
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Built-in processor | Yes |
| Power | |
|---|---|
| Output current | 1.75 A |
| Output voltage | 19 V |
| AC input voltage | 110 – 240 V |
| Power source type | AC |
| Weight & dimensions | |
|---|---|
| Weight | 716 g |
| Packaging data | |
|---|---|
| Number of products included | 1 pc(s) |
- manual pdf
