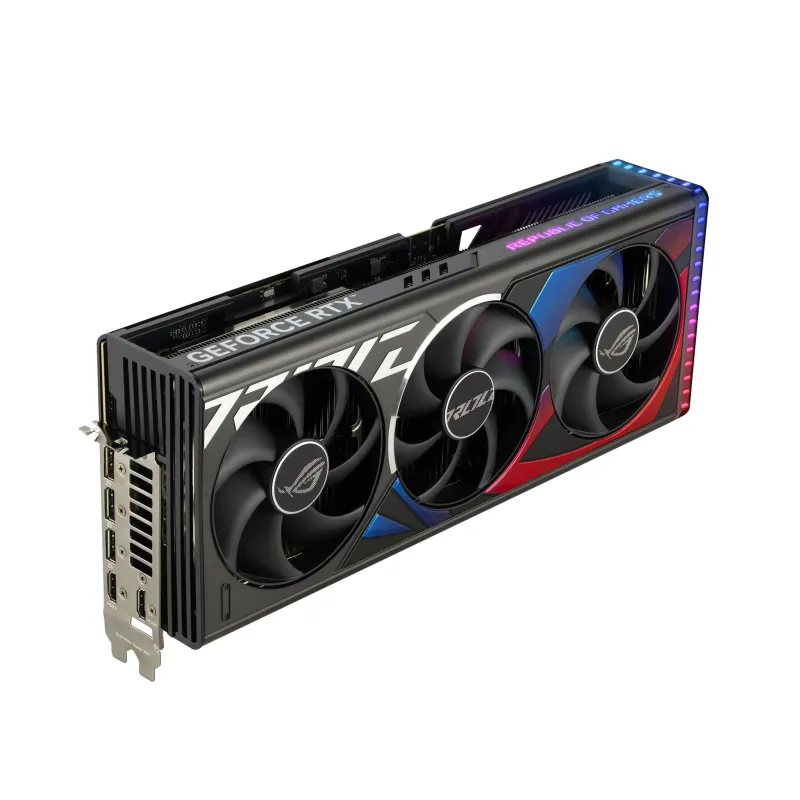

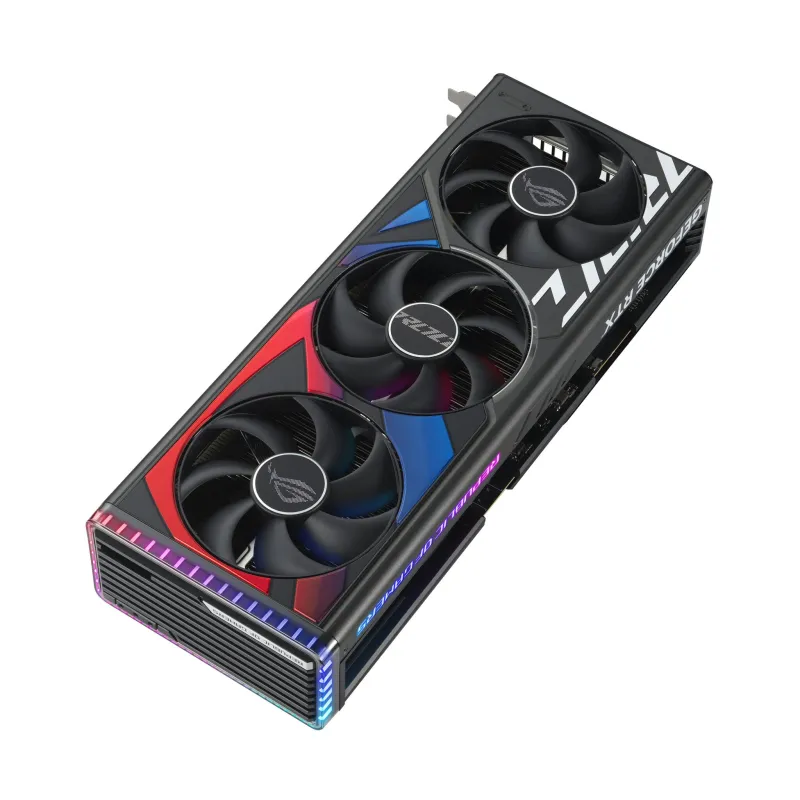

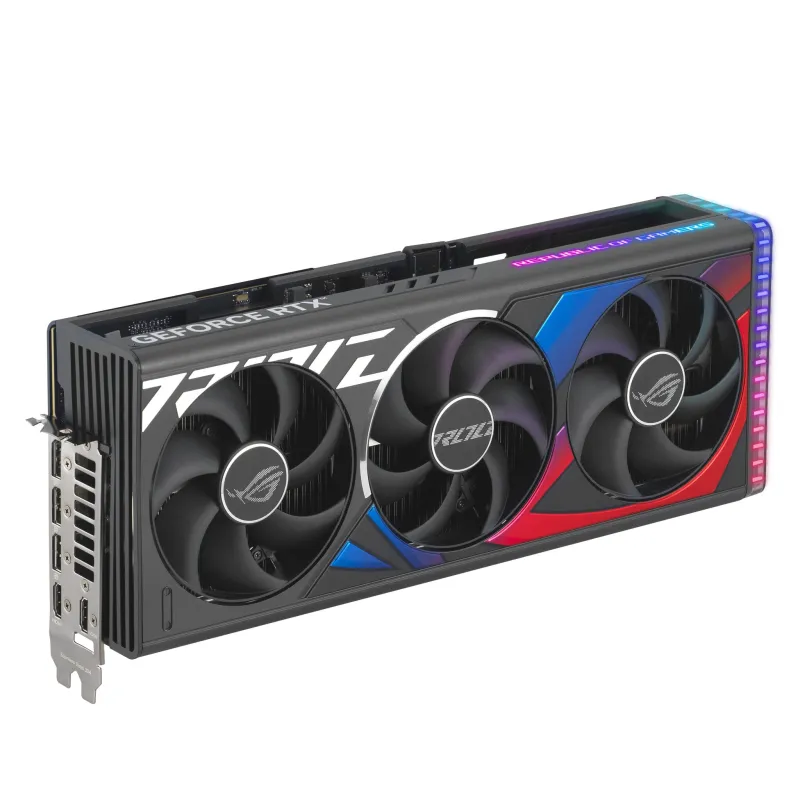

ASUS ROG -STRIX-RTX4090-O24G-BTF-GAMING NVIDIA GeForce RTX 4090 24 GB GDDR6X
- Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2x ray tracing performance
- OC edition: boost clock 2640 MHz (OC mode)/ 2610 MHz (default mode)
- Graphics card high-power gold finger for power transmission, and prevent GPU sag
- Eliminate the need for traditional 16-pin external power connections to the graphics card
- Axial-tech fans scaled up for 23% more airflow
- New patented vapor chamber with milled heatspreader for lower GPU temps
- 3.5-slot design: massive fin array optimized for airflow from the three Axial-tech fans
- Diecast shroud, frame, and backplate add rigidity and are vented to further maximize airflow and heat dissipation
ROG Strix GeForce RTX™ 4090 BTF OC Edition 24GB GDDR6X buffed-up design with chart-topping thermal performance and innovative Graphics Card High-Power (GC-HPWR) Gold Finger.
| Processor |
| Parallel processing technology support |
Not supported |
| Maximum displays per videocard |
4 |
| Processor frequency (OC mode) |
2640 MHz |
| Processor boost clock speed |
2610 MHz |
| CUDA cores |
16384 |
| CUDA |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
GeForce RTX 4090 |
| Graphics processor family |
NVIDIA |
| Memory |
| Data transfer rate |
21 Gbit/s |
| Memory bus |
384 bit |
| Graphics card memory type |
GDDR6X |
| Discrete graphics card memory |
24 GB |
| Ports & interfaces |
| DisplayPort version |
1.4a |
| HDMI version |
2.1a |
| DisplayPorts quantity |
3 |
| HDMI ports quantity |
2 |
| Interface type |
PCI Express 4.0 |
| Performance |
| NVIDIA G-SYNC |
Yes |
| Dual Link DVI |
No |
| HDCP version |
2.3 |
| HDCP |
Yes |
| Virtual Reality (VR) ready |
Yes |
| OpenGL version |
4.6 |
| DirectX version |
12 Ultimate |
| TV tuner integrated |
No |
| Design |
| Product colour |
Black |
| Illumination |
Yes |
| Illumination colour |
Multi |
| Number of slots |
3.5 |
| Bracket height |
Full-Height (FH) |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Number of fans |
3 fan(s) |
| Cooling technology |
ASUS Axial-tech |
| Cooling type |
Active |
| Power |
| Supplementary power connectors |
1x 16-pin |
| Minimum system power supply |
1000 W |
| System requirements |
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| Weight & dimensions |
| Height |
149.3 mm |
| Depth |
70.1 mm |
| Length |
357.6 mm |
| Packaging data |
| Package type |
Box |
| Packaging content |
| Manual |
Yes |
| General |
| Product family |
ROG |
| Product series |
Strix |
