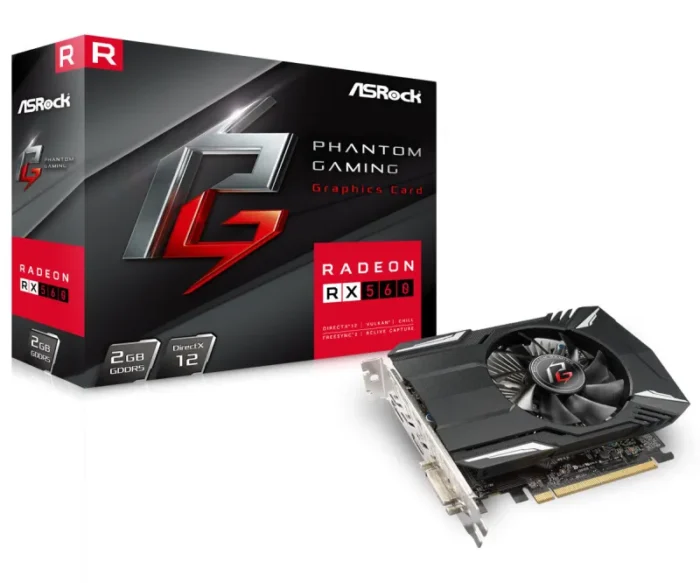

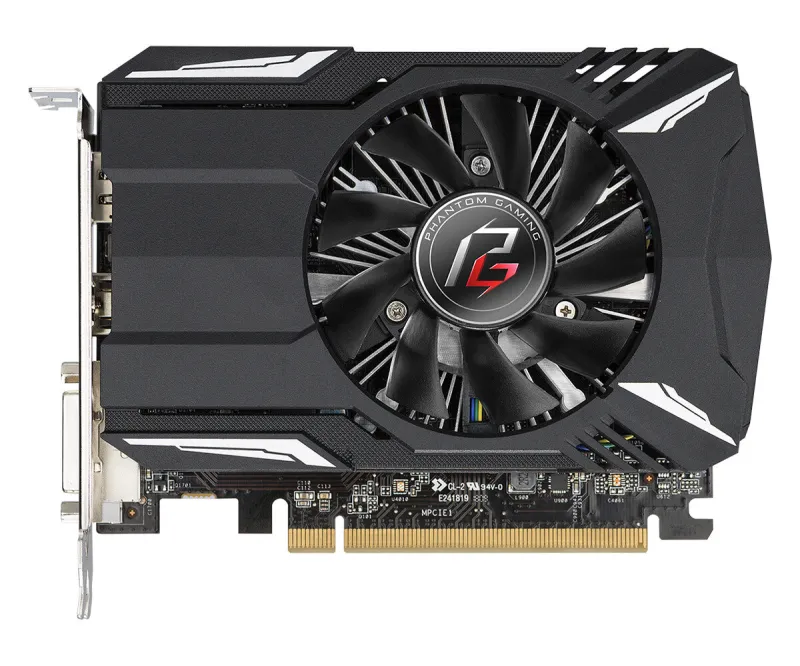

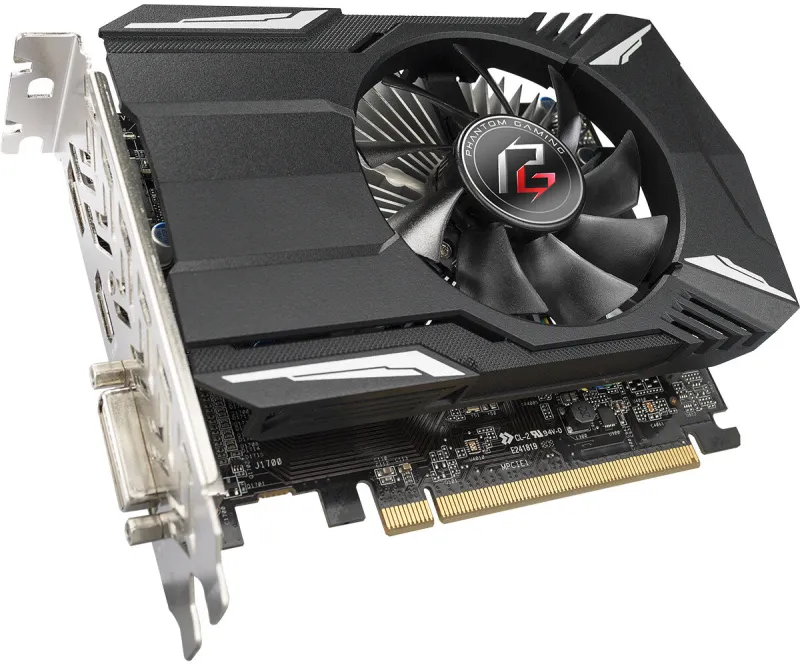

Asrock 90-GA0400-00UANF graphics card AMD Radeon RX 560 2 GB GDDR5
- Double Ball Bearings Fan Design
- Graphic Outputs: DisplayPort, HDMI, DVI
- Phantom Gaming Tweak Utility
- Temperature and Fan Speed Monitoring
- Core / Memory Clock Tweak
- Core / Memory Voltage Tweak
- This model may not be sold worldwide. Please c
DOUBLE BALL BEARINGS FAN DESIGN
Reduce friction, allow fan to run smoother and with a lifespan up to 50,000-100,000 hours. Compared to traditional design with oil leakage problem, it improves lifespan by 30 ~ 40% and with an enhanced cooling efficiency significantly.
PHANTOM GAMING TWEAK
A fast and easy tool that provides users with an abundant collection of subtle settings for professional tweaking such as FAN speed, core clocks, memory frequency and so on. Users may also choose the most optimized mode based on their needs, like OC mode, Silent mode or default mode. Phantom Gaming Tweak delivers more than enough voltage configuration options for anyone who wish to pursuit extremes.
AMD Eyefinity Technology
AMD Eyefinity technology expands the traditional limits of desktop computing by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.
Radeon™ WattMan®
Save, load and share custom Radeon™ WattMan profiles to quickly and easily optimize performance or create a personalized gaming experience
Radeon™ Chill
Radeon chill designed to save power, lower temperature, Radeon Chill enables high performance graphics when you battle and saves power when you explore.
Radeon™ ReLive
Radeon™ ReLive (ReLive) allows users to capture, stream and share gameplay videos and screenshots.
Capturing gameplay using Radeon ReLive is easy to configure and has a minimal impact on performance, which is measured in frames per second (FPS).
Radeon™ Overlay
The all-new Radeon Overlay lets gamers take performance to the next level with the ability to monitor, record and fine tune their gameplay without ever leaving the game.
Much like an activity tracker for your PC, Radeon™ Overlay provides one-click access to Radeon™ ReLive, Performance Monitoring, Radeon™ Chill, Frame Rate Target Control (FRTC), Radeon™ FreeSync and Color Settings.
Enhanced Sync
Enhanced sync enables low latency gameplay at virtually any framerate and a tear-free experience when your favorite game’s framerate exceeds your display’s refresh rate.1
Unlock your VSync. Enhanced sync technology delivers a tear-free experience when framerate exceeds your display’s refresh rate at an ultra-low latency to take your E-Sports gaming to the next level.
AMD Link
AMD Link is a powerful mobile app built to complement Radeon™ Software Adrenalin Edition. It allows you to conveniently access gameplay performance metrics and PC system info on your smartphone and/or tablet. You can easily connect to your PC either by a QR code in Radeon Settings or manually entering the required info. It is designed with today’s socially-connected, mobile-first world in mind – and with the gamer at its center.
| Processor | |
|---|---|
| Maximum digital resolution | 5120 x 2880 pixels |
| Stream processors | 896 |
| Maximum displays per videocard | 3 |
| FireStream | No |
| Processor frequency | 1176 MHz |
| CUDA | No |
| Maximum resolution | 5120 x 2880 pixels |
| Graphics processor | Radeon RX 560 |
| Graphics processor family | AMD |
| Memory | |
|---|---|
| Memory clock speed | 6000 MHz |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR5 |
| Discrete graphics card memory | 2 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.4 |
| HDMI version | 2.0 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 3.0 |
| Performance | |
|---|---|
| Full HD | Yes |
| Dual Link DVI | Yes |
| HDCP | Yes |
| OpenGL version | 4.5 |
| DirectX version | 12.0 |
| TV tuner integrated | No |
| PhysX | No |
| Design | |
|---|---|
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10 |
| Weight & dimensions | |
|---|---|
| Height | 130.9 mm |
| Depth | 42 mm |
| Length | 169.6 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Packaging content | |
|---|---|
| User guide | Yes |
| Drivers included | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
