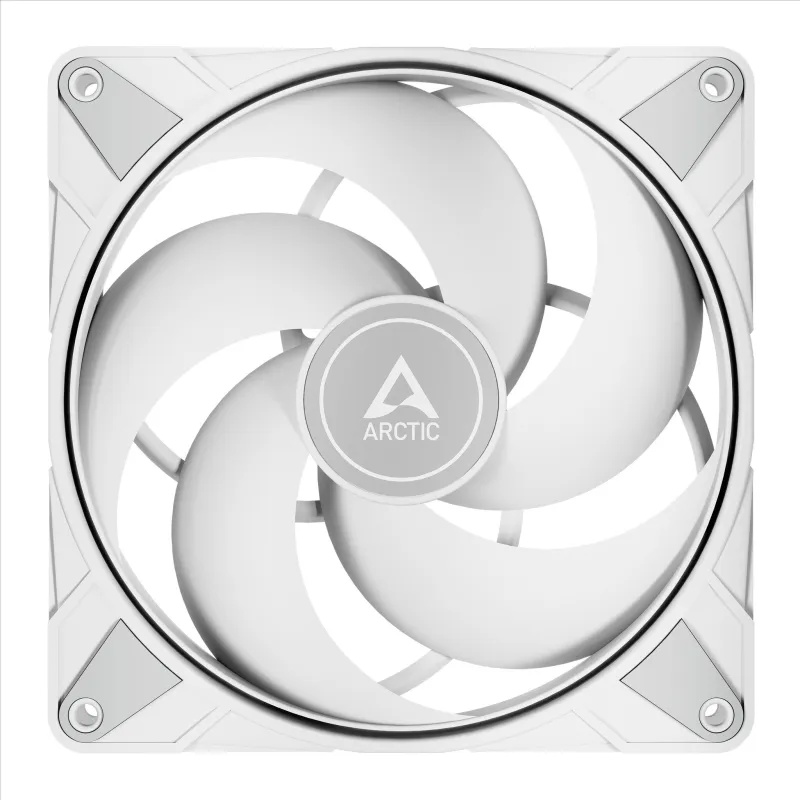

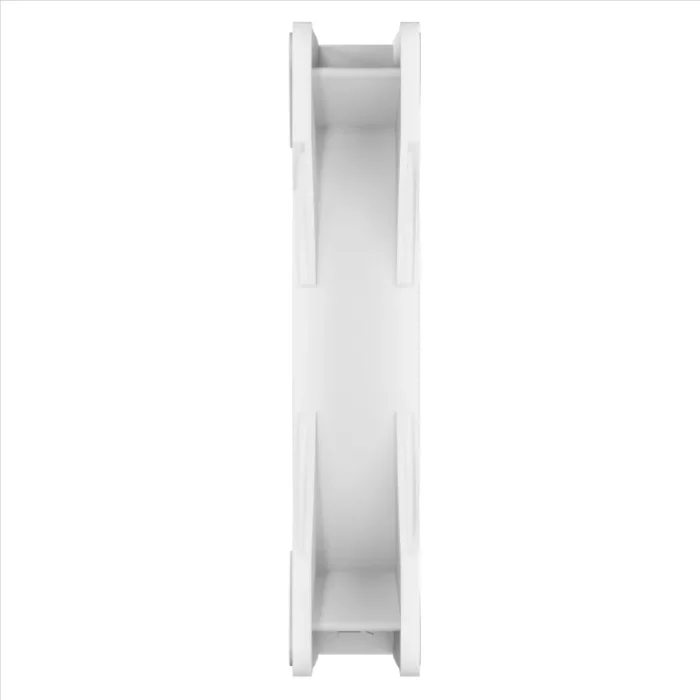

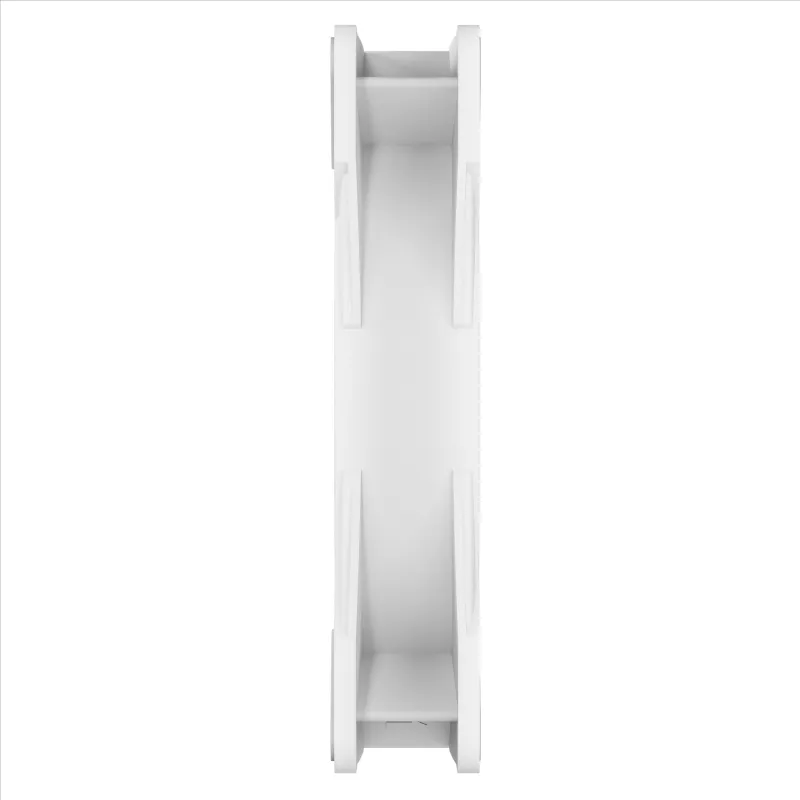

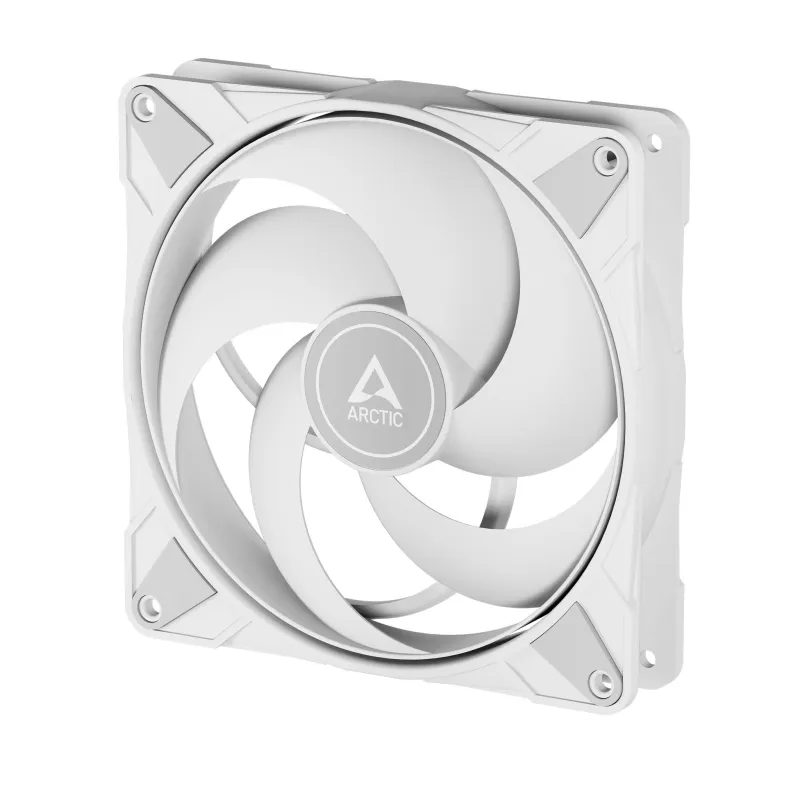

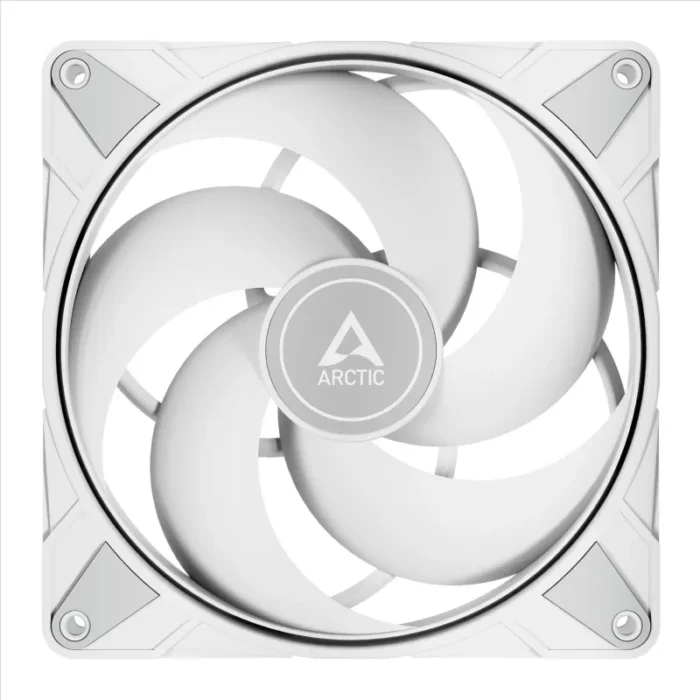

ARCTIC P14 Max (White) – 140 mm High-Speed PWM Fan
- Computer case Fan 14 cm 2800 RPM
- 95 cfm 4.18 mmH2O Fluid Dynamic Bearing (FDB)
- Pulse-width modulation (PWM) support
- White
ARCTIC’s versatile assortment of Fans is both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our Fans are equipped with state-of-the-art engine technology, innovative fan blades and high-quality bearings, making them particularly durable and efficient.
| Performance |
| Operating temperature (T-T) |
0 – 40 °C |
| Bearing type |
Fluid Dynamic Bearing (FDB) |
| Pulse-width modulation (PWM) support |
Yes |
| Maximum air pressure |
4.18 mmH2O |
| Airflow |
161.4 m³/h |
| Maximum airflow |
95 cfm |
| Rotational speed (max) |
2800 RPM |
| Rotational speed (min) |
400 RPM |
| Compatible processor series |
Not supported |
| Supported processor sockets |
Not supported |
| Fan diameter |
14 cm |
| Type |
Fan |
| Suitable location |
Computer case |
| Design |
| Fan connector |
4-pin |
| Number of fan blades |
5 |
| Number of fans |
1 fan(s) |
| Product colour |
White |
| Power |
| Rated current |
0.35 A |
| Starting voltage |
3.9 V |
| Voltage |
12 V |
| Weight & dimensions |
| Package weight |
303 g |
| Package height |
34 mm |
| Package depth |
167 mm |
| Package width |
167 mm |
| Cable length |
0.4 m |
| Weight |
254 g |
| Height |
27 mm |
| Depth |
140 mm |
| Width |
140 mm |
| Packaging content |
| Number of screws |
4 |
| Screws included |
Yes |
| Package type |
Box |
