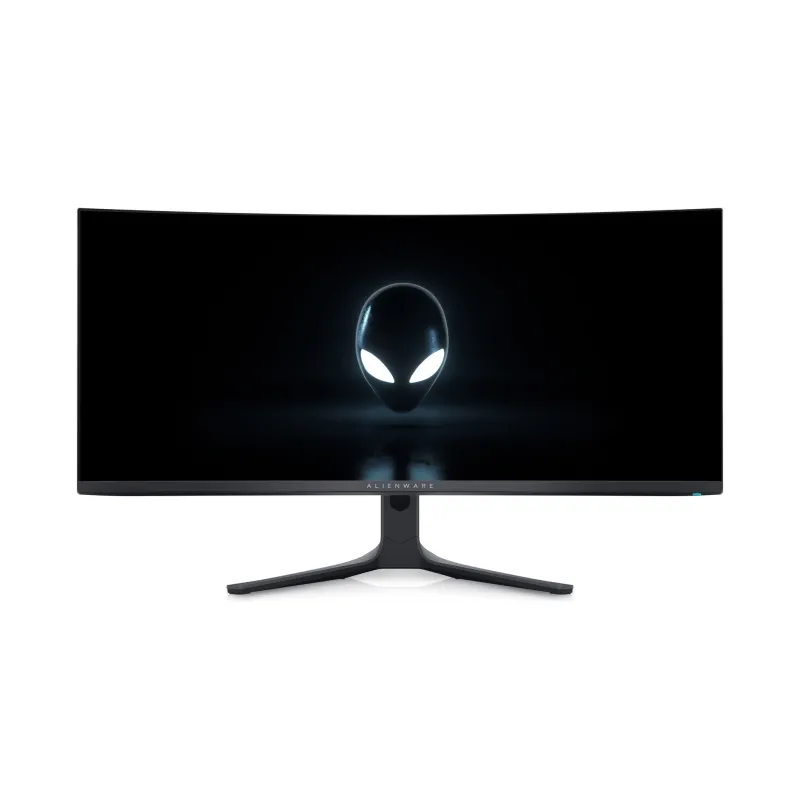

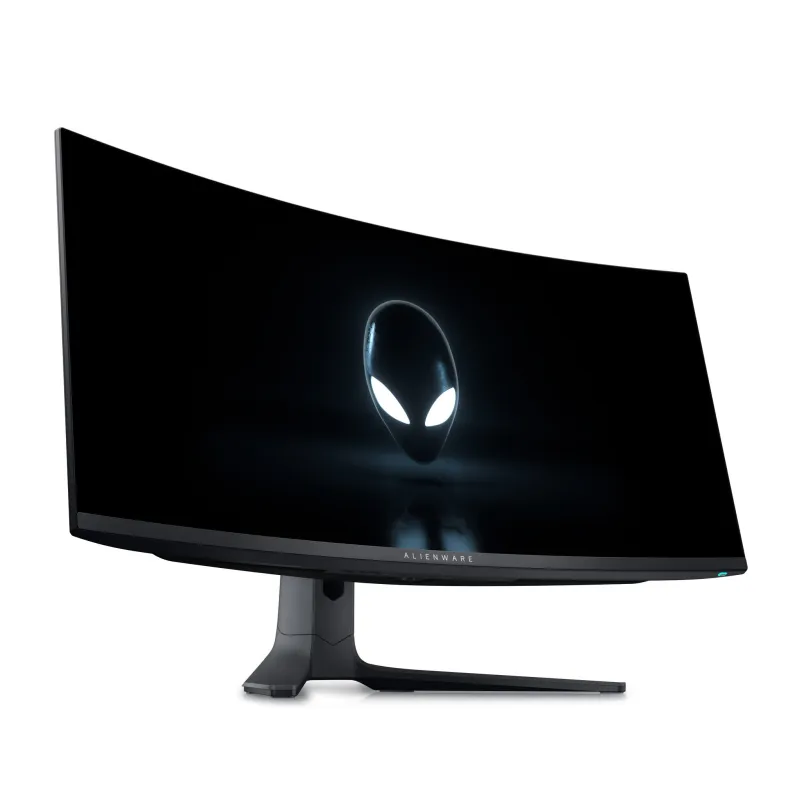

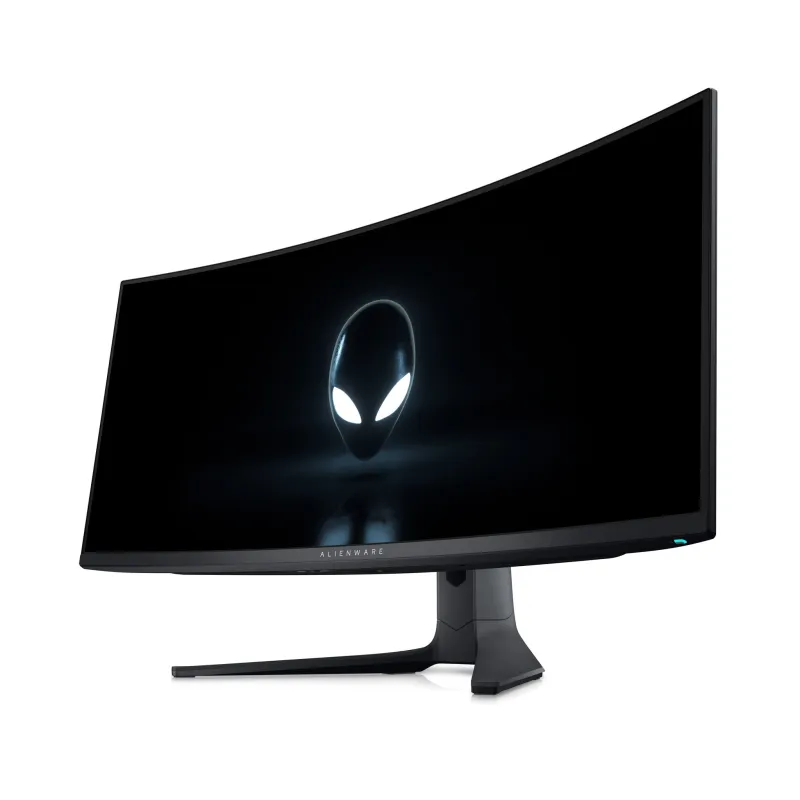

Alienware AW3423DWF computer monitor 86.8 cm (34.2″) 3440 x 1440 pixels UltraWide Quad HD QD-OLED Black
- 86.8cm (34.18″) UltraWide Quad HD 3440 x 1440 LED
- 0.1ms, 21:9, 250cd/m², 1000000:1
- USB, HDMI, DisplayPort
34″ curved monitor with QD-OLED technology and AMD FreeSync™ Premium Pro. Featuring infinite contrast ratio and VESA DisplayHDR TrueBlack 400 for an incredible front-of-screen performance.
| Display |
| Heat dissipation (typical) |
116.28 BTU/h |
| Quantum dot color technology |
Yes |
| Dell ComfortView technology |
Yes |
| sRGB coverage (typical) |
149% |
| Colour gamut |
99.3% |
| Colour gamut standard |
DCI-P3 |
| High Dynamic Range (HDR) technology |
DisplayHDR 400 |
| High Dynamic Range (HDR) supported |
Yes |
| Display diagonal (metric) |
86.82 cm |
| Viewable size diagonal |
86.8 cm |
| Viewable size, vertical |
33.7 cm |
| Viewable size, horizontal |
80 cm |
| Vertical scan range |
48 – 165 Hz |
| Horizontal scan range |
27 – 285 kHz |
| Pixel density |
110 ppi |
| Pixel pitch |
0.23 x 0.23 mm |
| Display number of colours |
1.07 billion colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Maximum refresh rate |
165 Hz |
| Contrast ratio (typical) |
1000000:1 |
| Supported video modes |
480p, 576p, 720p, 1080i, 1080p |
| Supported graphics resolutions |
640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1600 x 900, 1920 x 1080 (HD 1080), 2560 x 1440, 3440 x 1440 |
| Screen curvature rating |
1800R |
| Screen shape |
Curved |
| Response time |
0.1 ms |
| Display brightness (typical) |
250 cd/m² |
| Display brightness (peak) |
1000 cd/m² |
| Backlight type |
LED |
| HD type |
UltraWide Quad HD |
| Touchscreen |
No |
| Display technology |
QD-OLED |
| Native aspect ratio |
21:9 |
| Display resolution |
3440 x 1440 pixels |
| Display diagonal |
86.8 cm (34.2″) |
| Performance |
| Smart modes |
RPG, Sports |
| Low Blue Light technology |
Yes |
| Flicker-free technology |
Yes |
| VESA Adaptive Sync support |
Yes |
| AMD FreeSync type |
FreeSync Premium Pro |
| AMD FreeSync |
Yes |
| Multimedia |
| Built-in camera |
No |
| Built-in speaker(s) |
No |
| Design |
| Feet colour |
Black |
| Colour name |
Dark Side of the Moon |
| Product colour |
Black |
| Market positioning |
Gaming |
| Ports & interfaces |
| HDCP version |
2.2 |
| HDCP |
Yes |
| Headphone outputs |
1 |
| Headphone out |
Yes |
| Audio output |
Yes |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
2 |
| HDMI version |
2.0 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| USB Type-A downstream ports quantity |
4 |
| Number of USB Type-B upstream ports quantity |
1 |
| Number of upstream ports |
1 |
| USB upstream port type |
USB Type-B |
| USB hub version |
3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub |
Yes |
| Ergonomics |
| LED indicators |
Yes |
| Plug and Play |
Yes |
| On Screen Display (OSD) |
Yes |
| Tilt angle range |
-5 – 21° |
| Tilt adjustment |
Yes |
| Swivel angle range |
-20 – 20° |
| Swivelling |
Yes |
| Pivot angle |
-5 – 5° |
| Pivot |
Yes |
| Adjustable height (max) |
11 cm |
| Height adjustment |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Cable management |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
| European Product Registry for Energy Labelling (EPREL) code |
1337447 |
| Power supply type |
Internal |
| Input current |
3 A |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
100 – 240 V |
| Power consumption (off) |
0.3 W |
| Power consumption (max) |
200 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
34 W |
| Energy consumption (HDR) per 1000 hours |
36 kWh |
| Energy consumption (SDR) per 1000 hours |
34 kWh |
| Energy efficiency class (HDR) |
G |
| Energy efficiency class (SDR) |
G |
| Operational conditions |
| Non-operating altitude |
0 – 12192 m |
| Operating altitude |
0 – 5000 m |
| Operating relative humidity (H-H) |
10 – 80% |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Bezel width (bottom) |
2.06 cm |
| Bezel width (top) |
6.45 mm |
| Bezel width (side) |
1.1 cm |
| Weight (without stand) |
6.27 kg |
| Height (without stand) |
364.1 mm |
| Depth (without stand) |
127.1 mm |
| Width (without stand) |
815.2 mm |
| Weight (with stand) |
9.29 kg |
| Height (with stand) |
415.6 mm |
| Depth (with stand) |
305.7 mm |
| Width (with stand) |
815.2 mm |
| Packaging data |
| Package weight |
14.6 kg |
| Packaging content |
| DisplayPort cable length |
1.8 m |
| Quick start guide |
Yes |
| Cables included |
DisplayPort, USB |
| Stand included |
Yes |
| Other features |
| Heavy metals free |
Hg (mercury) |
| Maximum resolution |
3440 x 1440 pixels |
| Compliance certificates |
RoHS |
| Picture-by-Picture (PbP) |
Yes |
| Anti-reflective |
Yes |
| Brand-specific features |
| Dell Display Manager (DDM) compatibility |
Yes |
