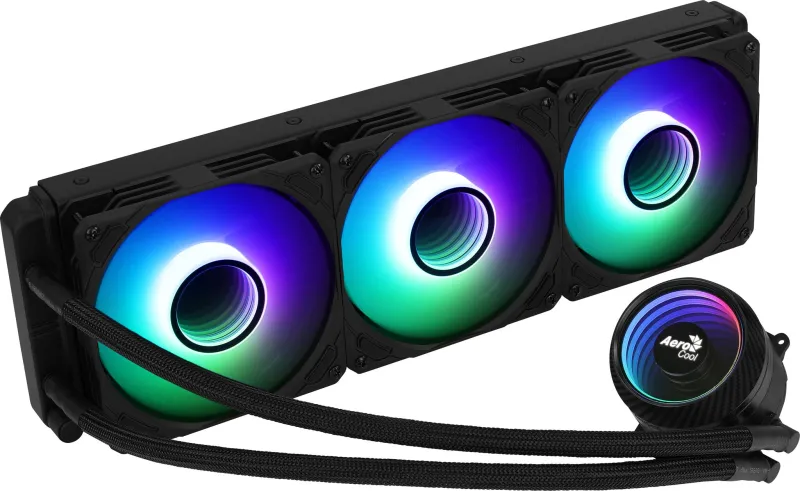

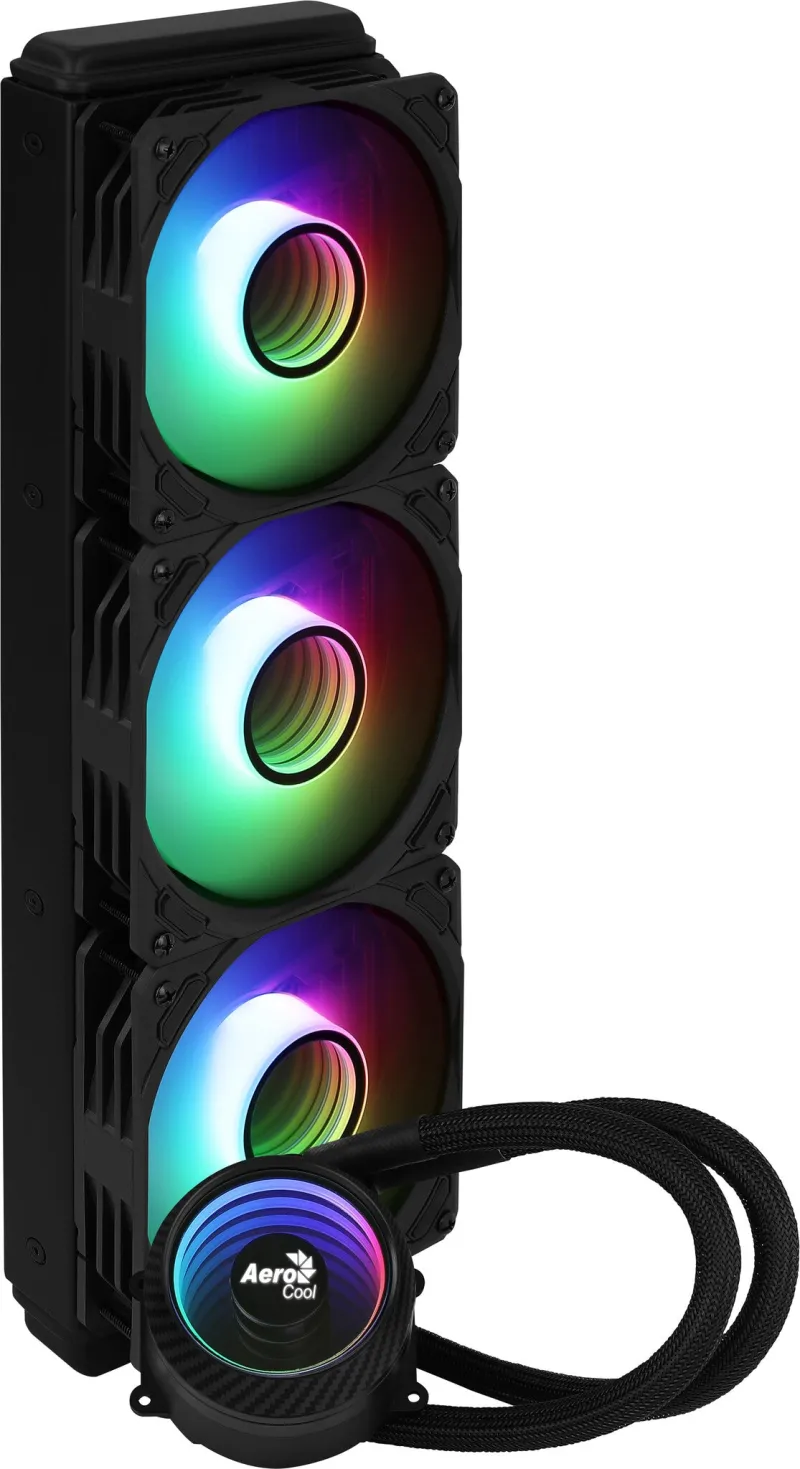

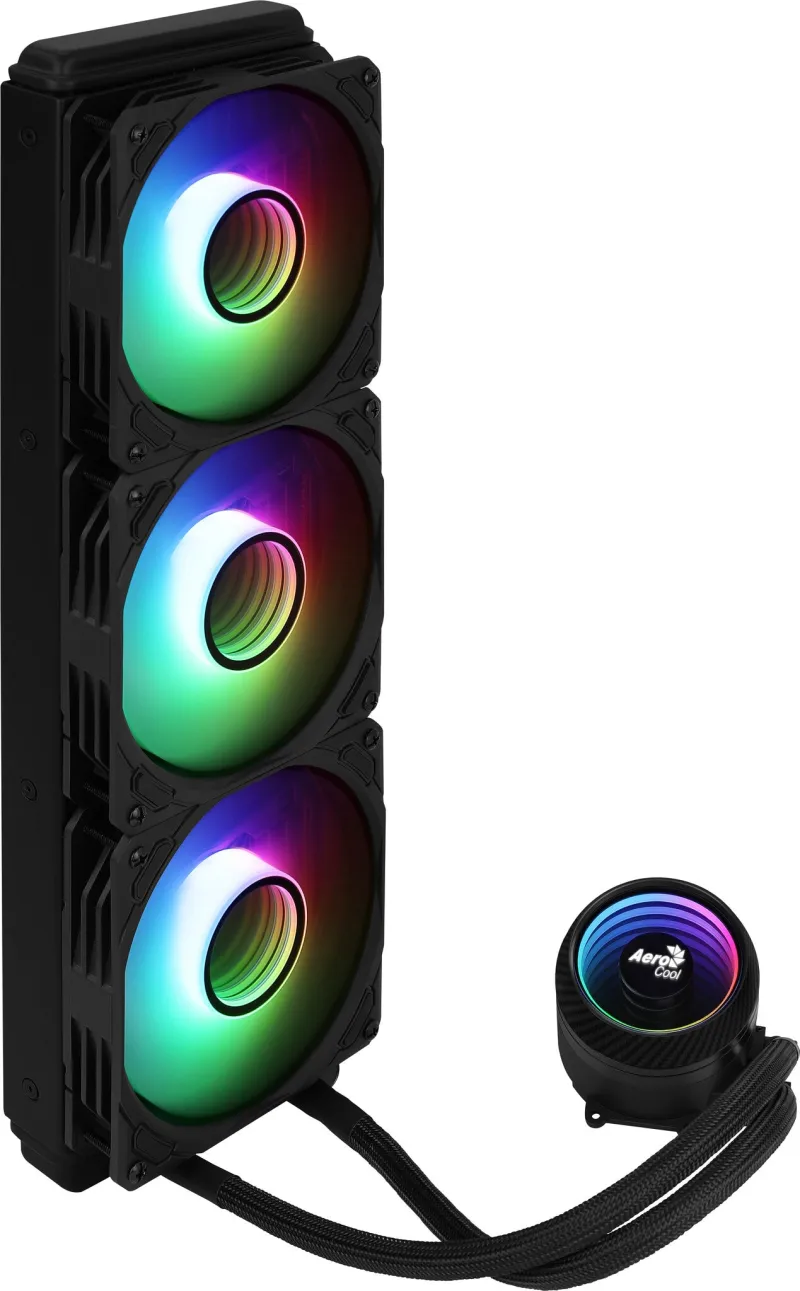

Aerocool MIRAGEL360 Liquid CPU Cooling 3x12cm ARGB Fan TDP 550W Black
- Infinity Mirror RGB design delivers a unique and mesmerizing lighting experience
- Compatible with Addressable RGB motherboards (ASUS Aura Sync, MSI Mystic Light Sync, Gigabyte RGB Fusion, and ASRock RGB Sync)
- Comes equipped with three high-performance, silent Addressable RGB fans
- Pure copper water block with micro channel design allows for faster heat transfer
- Balanced impeller and high-quality bearings allow for silent performance
- Low-density fins per inch radiator (LFPI) provide higher airflow at lower noise levels
- Teflon coating on the tubing allows for ultra-low water loss, extending the product lifetime
High-performance liquid cooler with an Infinity Mirror RGB design to deliver a unique and mesmerizing lighting experience. The Mirage is built to meet the highest engineering standards, ensuring your system will stay cool even under the most demanding conditions.
INFINITY MIRROR RGB DESIGN
Featuring a glass mirror design with a single RGB LED ring, the Mirage liquid cooler achieves an infinity effect with what seems like endless RGB rings to deliver a truly unique and mesmerizing lighting experience.
EQUIPPED WITH THREE ADDRESSABLE RGB FANS
Comes equipped with three 12cm Addressable RGB fans that can be controlled using Addressable RGB motherboard or LED control button.
ADDRESSABLE RGB COMPATIBLE
Stylize and personalize your lighting experience with 16.8 million colors. This liquid cooler is fully compatible with Addressable RGB motherboards (Asus Aura Sync, MSI Mystic Light Sync, Gigabyte RGB Fusion, ASRock RGB Sync).
MICRO CHANNEL DESIGN WATER BLOCK
Water block is built with pure copper for a superior heat conductivity. The block’s micro channel design allows for faster heat dissipation, keeping your CPU at the ideal temperature under standard and overclocking performance scenarios.
LOW-DENSITY FINS PER INCH RADIATOR
Low-density fins per inch radiator (LFPI) allows for air generated by the fans to pass through nearly unobstructed while providing just the right heat dissipation surface needed for the system. This achieves a perfect balance between cooling performance and noise reduction.
TEFLON COATED TUBES
This liquid cooler is built with the highest quality tubing and fittings made of soft and durable material. Teflon coating on the tubing allows for ultra-low water loss, helping to extend the product lifetime.
HIGH-PERFORMANCE SILENT FANS
Silent high-performance fan maximizes cooling performance while delivering extra flair to your rig. Equipped with anti-vibration pads to absorb and dampen vibrations caused by fan rotation.
| Performance | |
|---|---|
| Fan’s mean time to failure (MTTF) | 60000 h |
| Pump’s mean time to failure (MTTF) | 80000 h |
| Pump motor speed | 2300 RPM |
| Fan speed (max) | 2000 RPM |
| Fan speed (min) | 600 RPM |
| Quantity per pack | 1 pc(s) |
| Fan bearing technology | Hydraulic bearing |
| Pump noise level | 20.2 dB |
| Fan noise level (max) | 26.8 dB |
| Maximum air pressure | 1.62 mmH2O |
| Supported processor sockets | LGA 1200 (Socket H5), LGA 2011 (Socket R), LGA 2066, LGA 775 (Socket T), Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2 |
| Type | All-in-one liquid cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Water block material | Copper |
| Fan connector | 4-pin |
| Illumination colour | Multi |
| Illumination LED | Yes |
| Radiator material | Aluminium |
| Product colour | Black |
| Power | |
|---|---|
| Thermal Design Power (TDP) | 550 W |
| Pump voltage | 12 V |
| Fan voltage | 12 V |
| Fan current | 0.28 A |
| Pump power consumption | 2.64 W |
| Fan power consumption | 3.36 W |
| Weight & dimensions | |
|---|---|
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Radiator height | 2.7 cm |
| Radiator depth | 12 cm |
| Radiator width | 39.4 cm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
