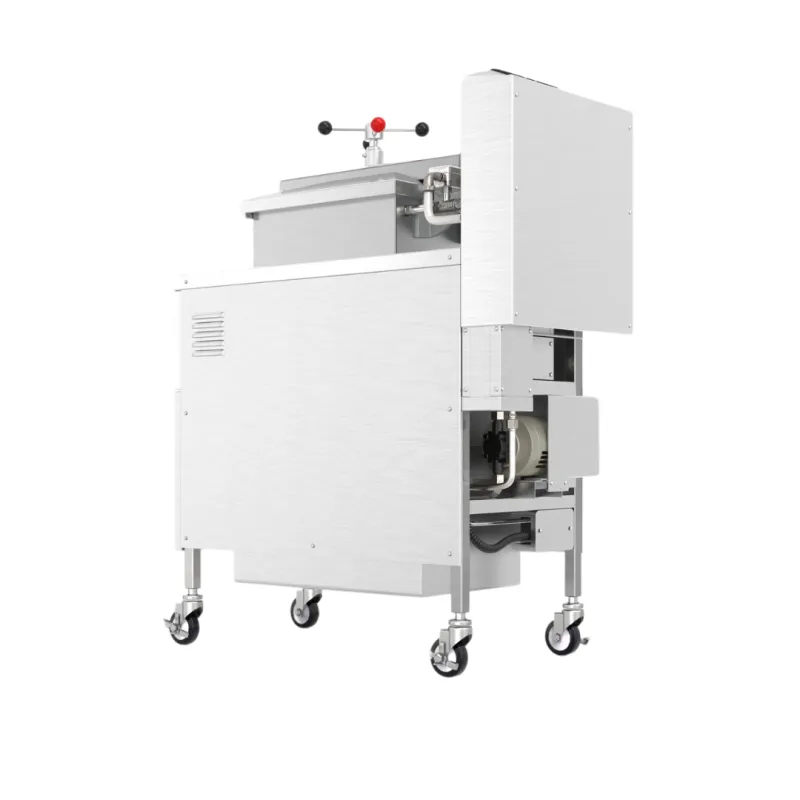

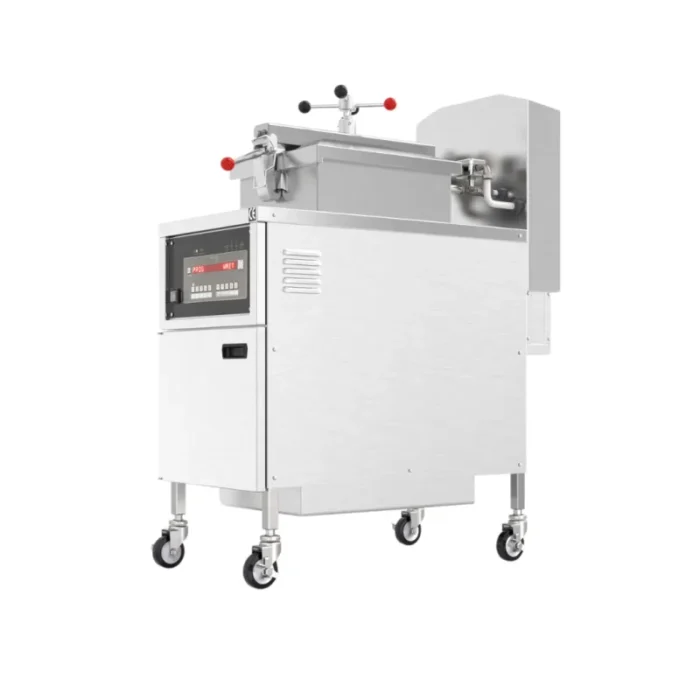

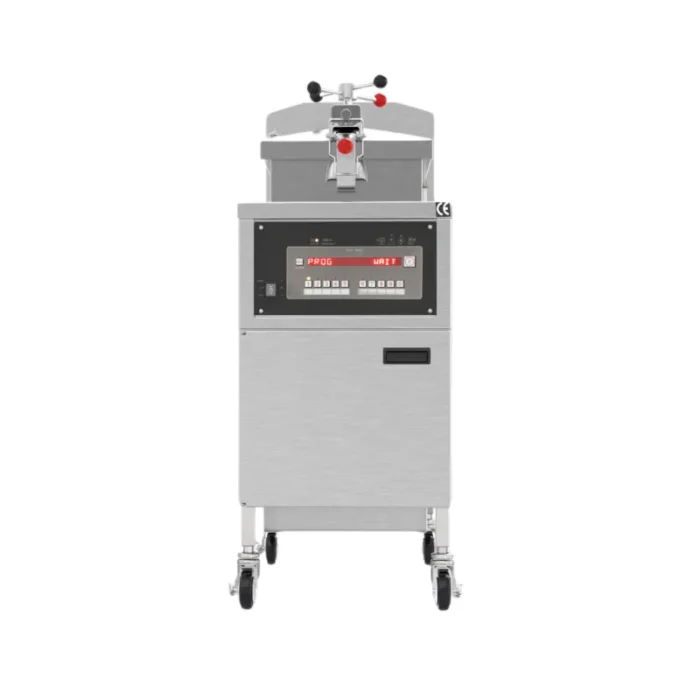

341003 – Freestanding Electric Pressure Fryer 24L
Model Number: EPF-24L
Discover the new Hamoki Freestanding Electric Pressure Fryers, designed with professional chefs in mind. Engineered with cutting-edge technology and exceptional performance, these cost-effective, high-volume production fryers ensure consistently perfect results and are ideal for producing succulent fried chicken.
Pressure frying allows for lower cooking temperatures, extending the life of your cooking oil, and offering faster cooking times to meet peak demand. Additionally, the pressure seals in natural juices and minimises oil absorption, delivering delicious, healthier fried foods every time.
- Stainless steel structure 304, for easy cleaning
- Heavy-duty stainless steel frying pot
- Built-in automatic oil filtering system and drainage valve
- Intuitive mechanical control panel with digital display
- 10 programmable settings
- Colour-coded locking spindle
- Channel under lid helps direct condensation away from pot when lid is open
- High-limit safety cut out
- Complete with idle, melt modes and prompted filtration
- Temperature control, 0-99 minute timer knob, and indicator lights
This product is covered with a Manufacturer’s 1 Years Parts Warranty.
Please note, that with ongoing enhancements and improvements, this product may vary slightly from the content displayed.
DIMENSIONS (WxDxH): 460 x 960 x 1230 mm
TANK INNER SIZE (WxDxH): 343 x 408 x 336 mm
BASKET SIZE (WxDxH): 200 x 340 x 260 mm
CAPACITY: 24 L
WORKING PRESSURE: 12 Psi
TEMPERATURE: 20 ~ 200 °C
POWER: 13.5 kW / 3N – 415 V / 50 Hz
WEIGHT: 135 KG
POWER CONSUMPTION: 3 kW/hr
OUTPUT: 32 KG/Hr
CONNECTION: Three-phase four-wire
INSTRUCTION MANUAL
WIRING DIAGRAMS
