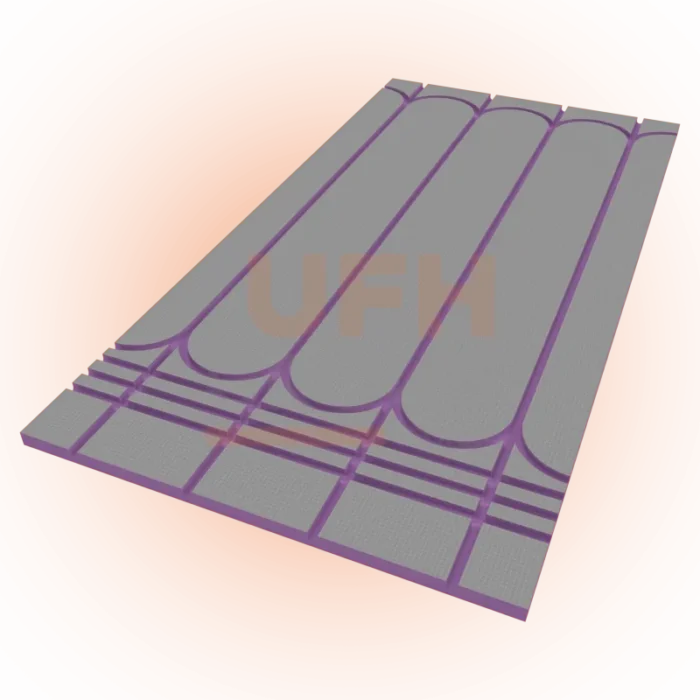

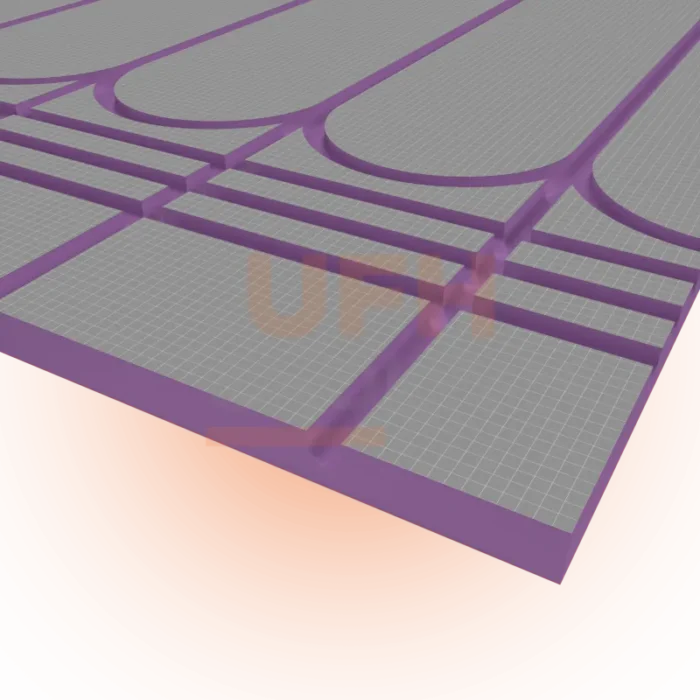

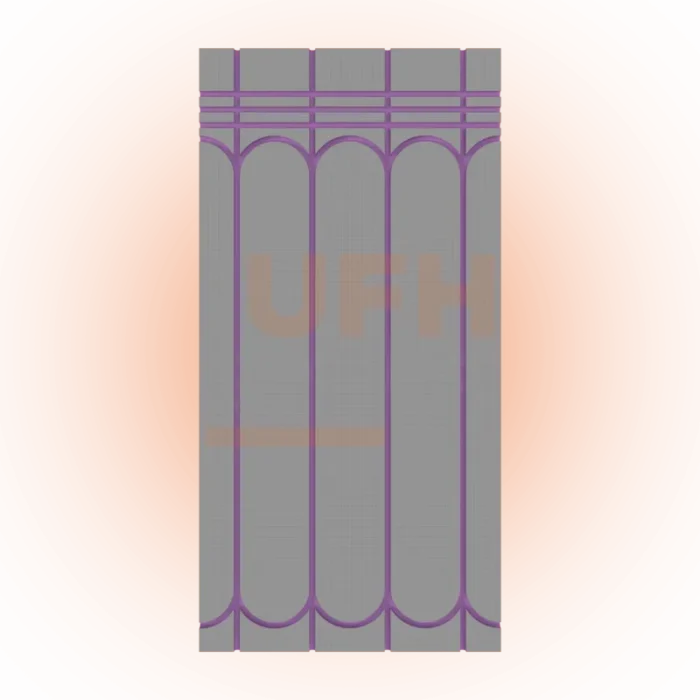

20mm Tekwarm Lite Low Profile UFH Board | 1200mm x 600mm | 200mm Centre for 16mm Pipe
Overview
The 20mm Tekwarm Lite Low Profile UFH Board with 200mm centre spacing is ideal for larger spaces requiring higher heat output. With a thickness of just 20mm, these boards provide 300 kPa compressive strength for durability and heat retention. The boards are grooved to accommodate 16mm diameter heating pipes, offering a quick and efficient installation on timber and concrete sub-floors. This product is suitable for both new builds and retrofit projects.
Key Features:
- Thickness: 20mm, perfect for low-profile installations.
- Grooved for 16mm pipes: Ensures quick and easy installation with radius returns for seamless pipe placement.
- Compressive strength: 300 kPa XPS insulation for durability and efficiency.
- Pipe spacing: 200mm, ideal for larger areas requiring more heat output.
- Compatible with timber and concrete: Easy installation using adhesive or mechanical fixings (depending on the sub-floor).
Key Benefits:
- Efficient: Perfect for larger areas where consistent heat is needed.
- Low profile: Ideal for installations where floor height is a concern.
- Energy efficient: Offers efficient heating with the right insulation and heat retention balance.
Alternative Products:
Looking for a different configuration? Check out the following options:
- 20mm Tekwarm Lite Low Profile UFH Board | 1200mm x 600mm | 150mm Centre for 12mm Pipe
- 20mm Tekwarm Lite Low Profile UFH Board | 1200mm x 600mm | 150mm Centre for 16mm Pipe
- 20mm Tekwarm Lite Low Profile UFH Board | 1200mm x 600mm | 200mm Centre for 12mm Pipe
Product Data Sheet:
Tekwarm Lite Low Profile UFH Board Data Sheet
Recommended Overlay Board:
Tekwarm Overlay Board
