101034 – Hot Display Cabinet – 150 Litres
Model Number: FM36

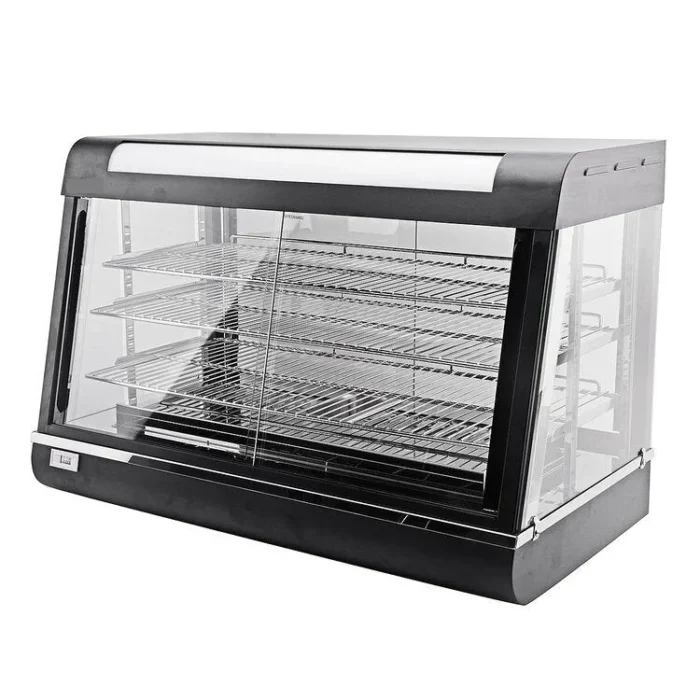

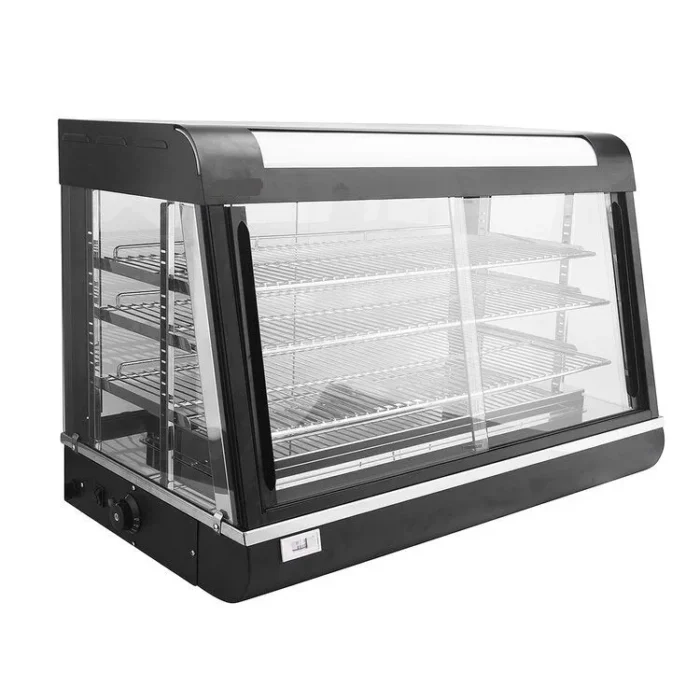

The Hamoki Heated Display Cabinet is perfect for merchandising a wide variety of hot food products, such as sausage rolls, pies and pasties. Featuring a 150 litre capacity over three shelves, the merchandiser also includes attractive curved glass and internal lighting to help maximize impulse purchases of hot food.
- Cool to touch plastic handle
- Water reservoir at the bottom to add humidity when needed
- Extra deep reservoir GN1/9*2.5 to last for whole day
- Three levels of shelves inside chamber
- Shelf height can be adjusted
- Rubber seal between door and frame to prevent heat loss
- Vertical fluorescent lamp on both sides for better food display
- Transparent cover on fluorescent lamps
- Filament lamp on top for advertising posters to attract customer
- On/off switch for lamps
- Anti-slip rubber foot
- Heating indicator
This product is covered with a Manufacturer’s 1 Years Parts Warranty. (Please note, bulbs are not included within the Warranty.)
Please note, that with ongoing enhancements and improvements, this product may vary slightly from the content displayed.

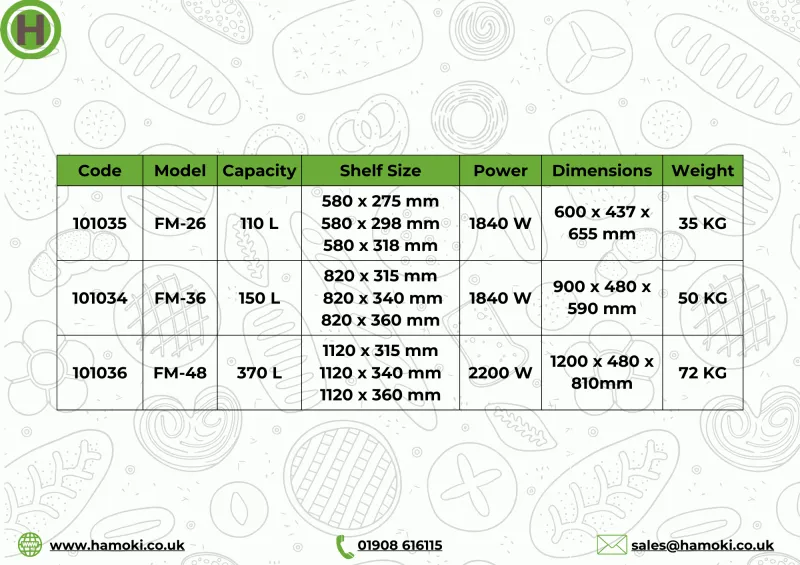

DIMENSIONS (WxDxH): 900 x 480 x 590 mm (+ (W) 30-50 mm for controls)
SHELF 1: 820 x 315 mm
SHELF 2: 820 x 340 mm
SHELF 3: 820 x 360 mm
CAPACITY: 150 L
WEIGHT: 50 KG
POWER: 1.84 KW / 240 V 50 Hz
ASSEMBLY INSTRUCTIONS
TECH SHEET
EXPLODING DRAWING
WIRING DIAGRAM
